Component Handling Track Width Assignment for X Feeder Types X Feeder Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 358 Track Wi dth Assignment for X Feeder Types 10.2.5 Track Width Assign ment for X Feeder Types Tra…
Component Handling
X Feeder X Feeder Parts (Back View)
357 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
X Feeder Parts (Back Vi ew)
10.2.3 X Feeder Parts (Back View)
X feeder parts
Legend
Overview Feeder Types
10.2.4 Overview Feeder Types
1 Entry aperture to the tape feed channel
with tape spring
6 Shutter for component removal
2 Cover for the foil container 7 Guidance feeder at the changeover table
(front)
3 Foil container with cutter, to cut the foil 8 Guidance feeder at the changeover table
(back)
4 Button, to remove the feeder 9 Label which described the different pick up
positions depend on the component size
5 Operator panel 10 Data plate
Tape feeder
module
Item number Feeder width Number of tracks
occupied
Maximum tape material height
(overall)
8 mm X 00141270 10.8 mm 1 1.6 mm paper
3.5 mm blister
12 mm X 00141271 22.4 mm 2 6.5 mm blister
16 mm X 00141272 34.4 mm 3 25 mm blister
24 mm X 00141273 34.4 mm 3 25 mm blister
32 mm X 00141274 45.8 mm 4 25 mm blister
Component Handling
Track Width Assignment for X Feeder Types X Feeder
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 358
Track Wi dth Assignment for X Feeder Types

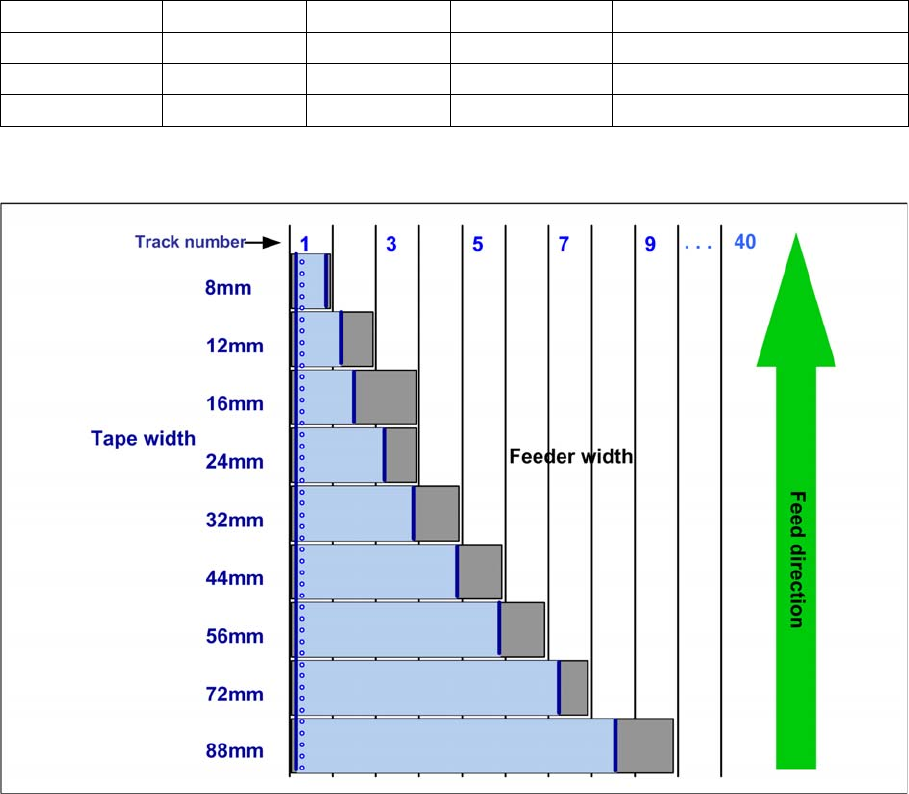

10.2.5 Track Width Assignment for X Feeder Types
Track Width Assignment for X Feeder Types
44 mm X 00141275 57.8 mm 5 25 mm blister
52 mm X 00141276 69.8 mm 6 25 mm blister
72 mm X 00141277 81.6 mm 7 25 mm blister
88 mm X 00141278 105.2 mm 9 25 mm blister
Component Handling
X Feeder Contactless Energy and Data Interface
359 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Contactless Energy and Data Interface

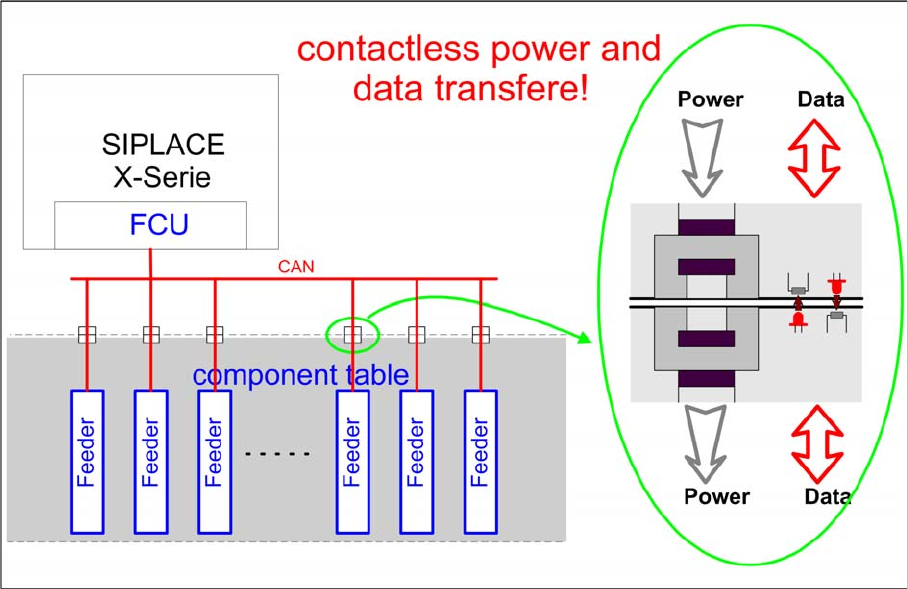

10.2.6 Contactless Energy and Data Interface
Contactless energy and data transfer
▪ The energy is transferred via induction
▪ The data is transferred via infrared and fiber optic technology
Operation
10.2.7 Operation
Adjustab le Step Sizes on the X Feeder
10.2.7.1 Adjustable Step Sizes on the X Feeder
8 mm X tape feeder module:
1, 2, 4, 8 mm
12 mm X tape feeder module:
4, 8, 12, 16 mm
16 mm X tape feeder module:
4, 8, 12, 16, 20 mm
24 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32 mm
32 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40 mm
44 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52 mm
56 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64 mm
72 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80 mm
88 mm X tape feeder module:
4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96 mm
