Component Handling
Operation X Feeder
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 364
Menu Pick Up Position Manual in the Main Menu
10.2.7.10 Menu Pick Up Position Manual in the Main Menu
Setting the pick up position manual
Component Handling
X Feeder Operation
365 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)

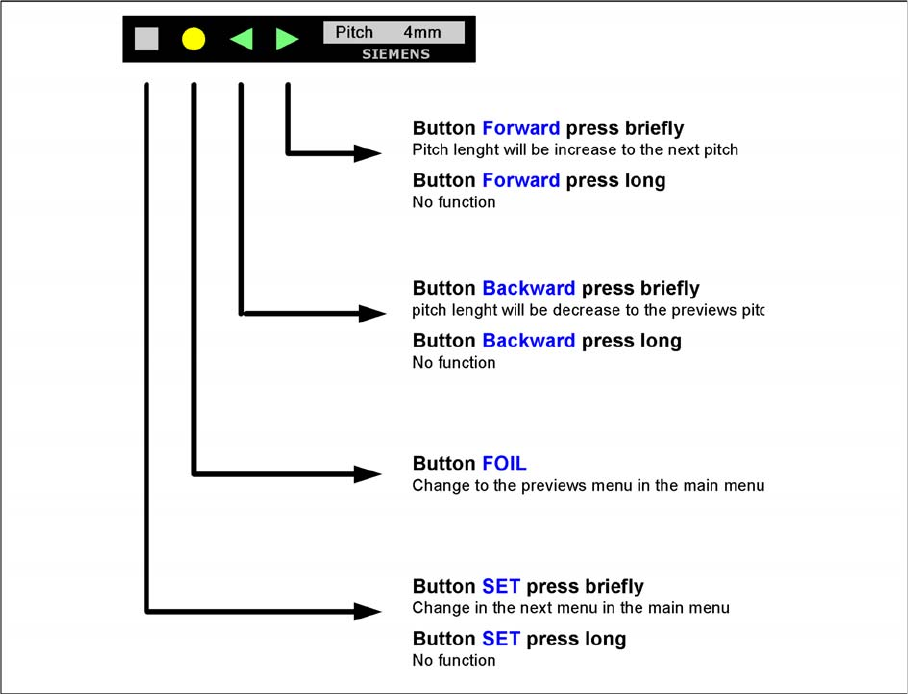

Menu Pitch in t he Main Menu
10.2.7.11 Menu Pitch in the Main Menu
Setting the transport length
Component Handling
Operation X Feeder
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 366

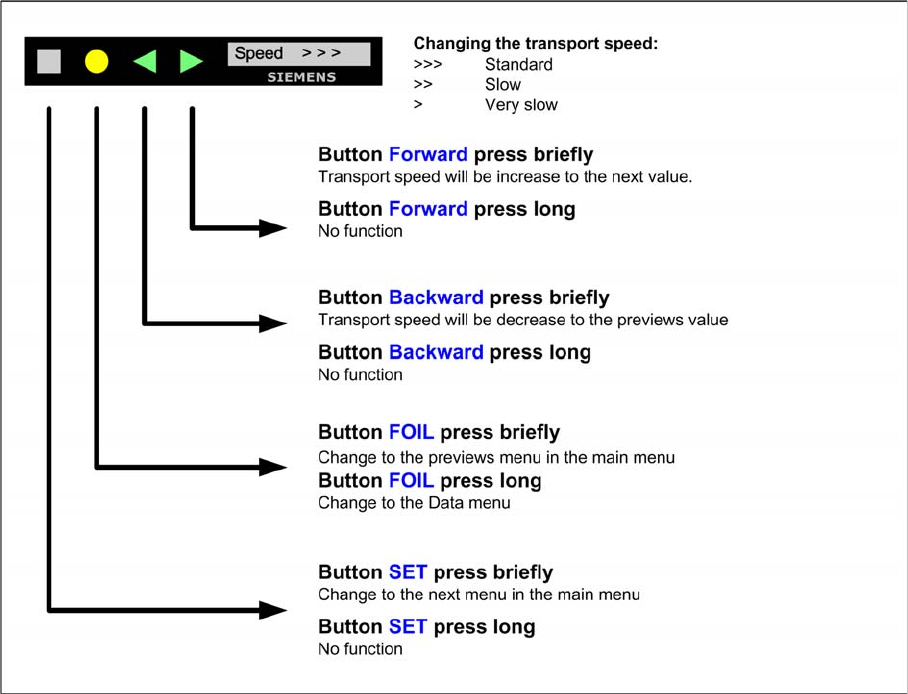

Menu Transport Speed in the Main Menu
10.2.7.12 Menu Transport Speed in the Main Menu
Setting the transport speed
Data Menu
10.2.7.13 Data Menu
Calling up the data menu
▪ Press the SET Button until you see speed in the display
▪ Press the FOIL Button long
Back to the main menu
▪ Press the FOIL Button long
