Modular Conveyor Conveyor Modes Function Description Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 386 See also 11.3.2 Setting the Fixed Convey or Edge (from SW701 ) [ ➙ 391] Overview of D ual Conveyor with Right o…
Modular Conveyor
Function Description Conveyor Modes
385 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Conveyor Modes
11.1.14 Conveyor Modes
Overview of Flexible Sin gle Conveyor
11.1.14.1 Overview of Flexible Single Conveyor
Overview of D ual Conveyor as Single Conv eyor
11.1.14.2 Overview of Dual Conveyor as Single Conveyor

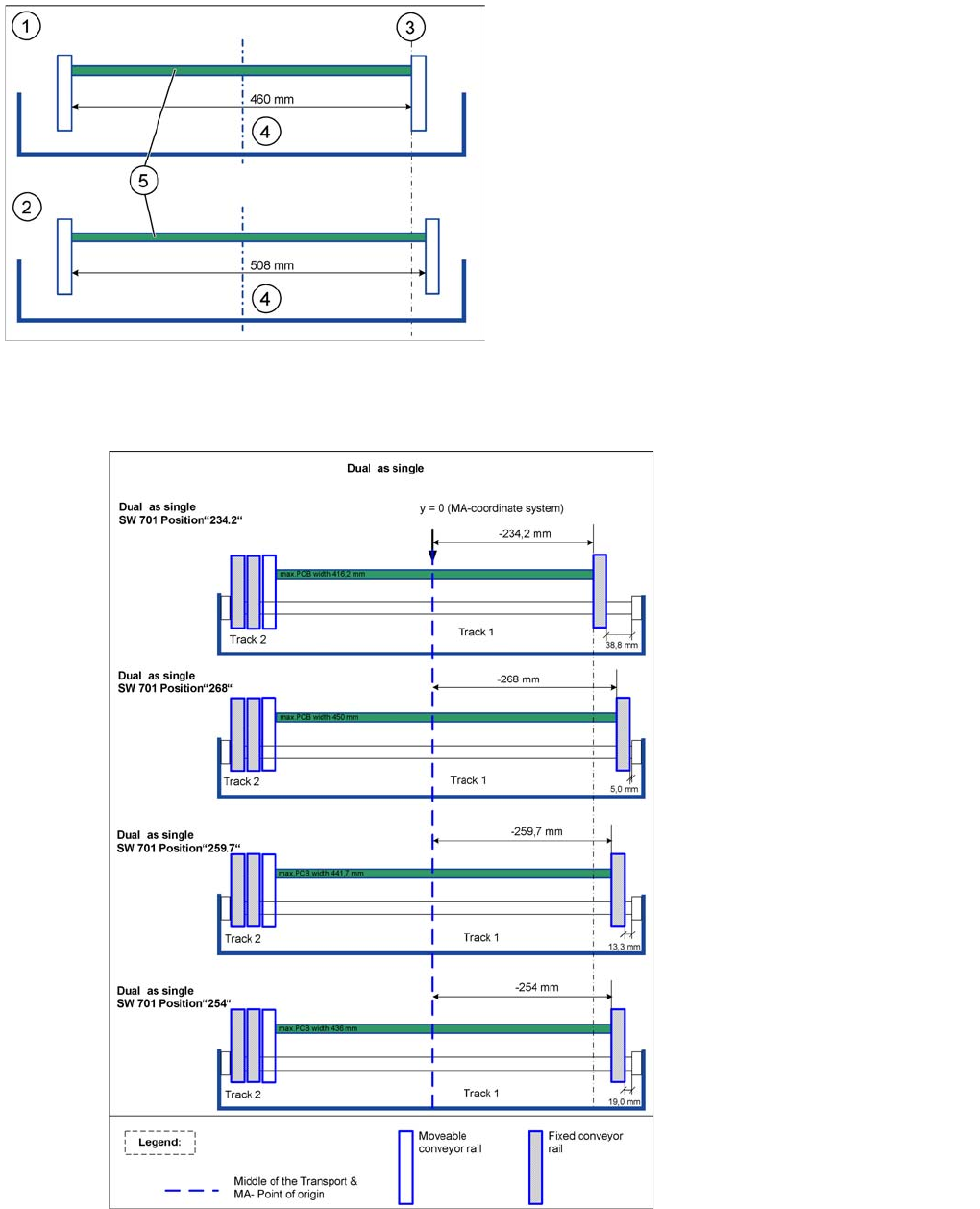

Dual conveyor as single conveyor
Width of single conveyor
Legend
1. Single conveyor "Standard", max. width 1 x 460 mm
2. Single conveyor "excess width", max. width 1 x 508
mm
3. Fixed conveyor side on right
4. Lane 1
5. Board
Modular Conveyor
Conveyor Modes Function Description
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 386
See also
11.3.2 Setting the Fixed Conveyor Edge (from SW701) [ ➙ 391]
Overview of D ual Conveyor with Right or Left Side F ixed
11.1.14.3 Overview of Dual Conveyor with Right or Left Side Fixed

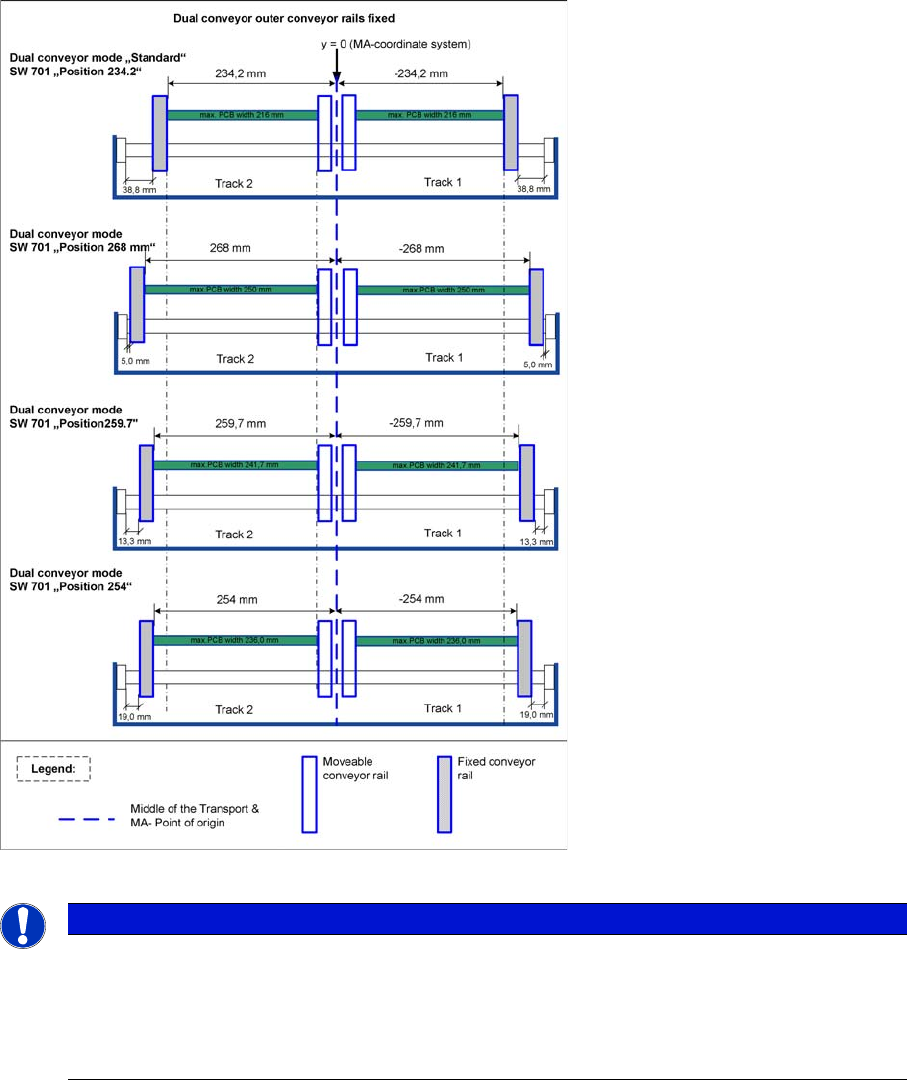

Dual conveyor with right or left side fixed
See also
11.3.2 Setting the Fixed Conveyor Edge (from SW701) [ ➙ 391]
NOTICE
A dual conveyor as single conveyor is possible for conveyor lanes 1 or 2
Conveyor lane 1 is used with the button on the right or outer side.
Conveyor lane 2 is used with the button on the left.
The term Position 'xxx.x' in the diagram refers to the buttons in the station software, for
setting the fixed conveyor side.
NOTICE
During service work, the distance between the fixed side and the shaft fixtures is set to 38.8
with the gauge, in standard mode. The other dimensions are calculated automatically by the
software.
The term Position 'xxx.x' in the diagram refers to the buttons in the station software, for
setting the fixed conveyor side.
Modular Conveyor
Function Description Conveyor Modes
387 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Overview of Dua l Conveyo r I-Placement
11.1.14.4 Overview of Dual Conveyor I-Placement

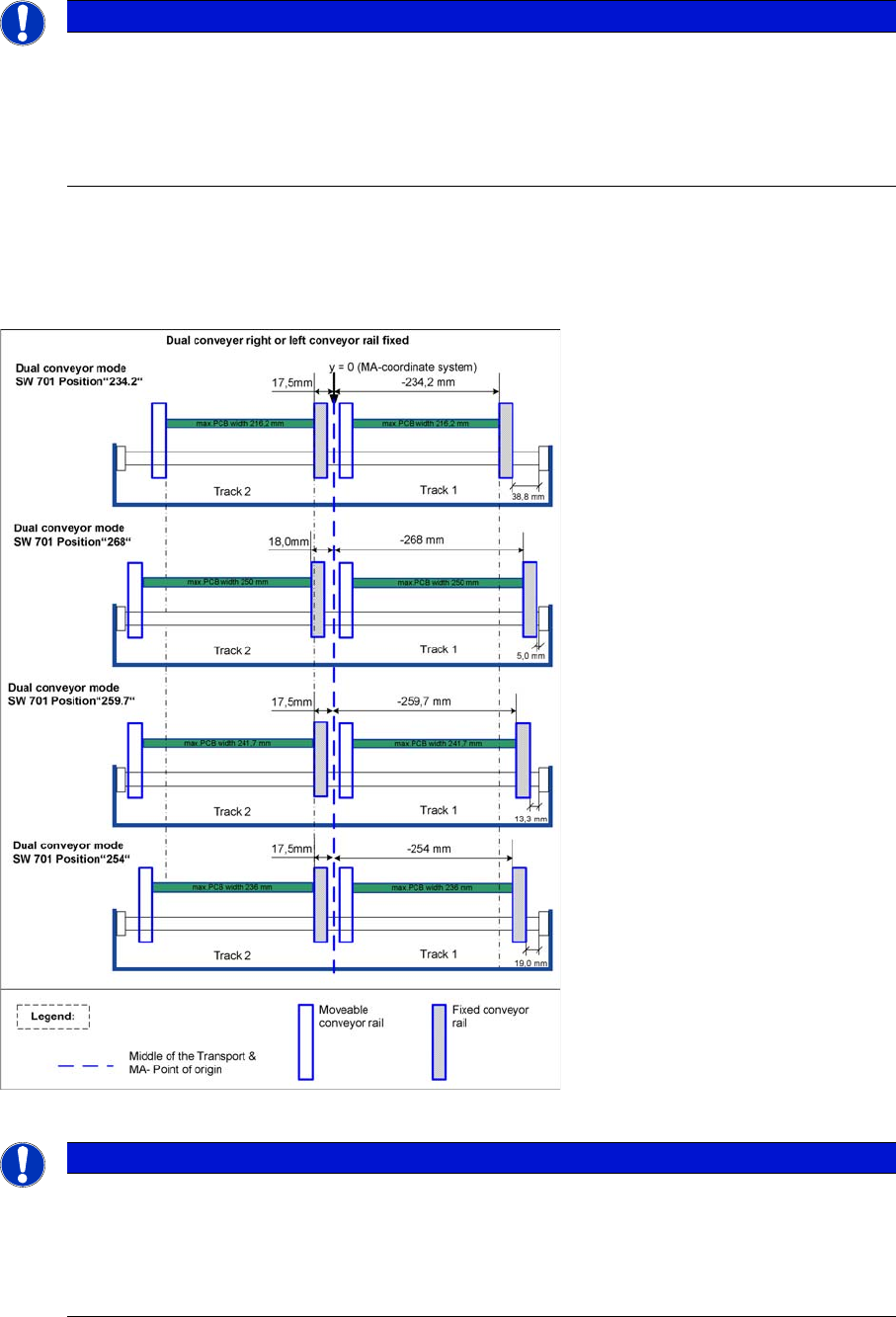

Dual conveyor i
-
placement
See also
11.3.2 Setting the Fixed Conveyor Edge (from SW701) [ ➙ 391]
NOTICE
During service work, the distance between the fixed side and the shaft fixtures is set to 38.8
with the gauge, in standard mode. The other dimensions are calculated automatically by the
software.
The term Position 'xxx.x' in the diagram refers to the buttons in the station software, for
setting the fixed conveyor side.
