Modular Conveyor
Conveyor Settings Setting the Fixed Conveyor Edge (from SW701)
393 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
X series example

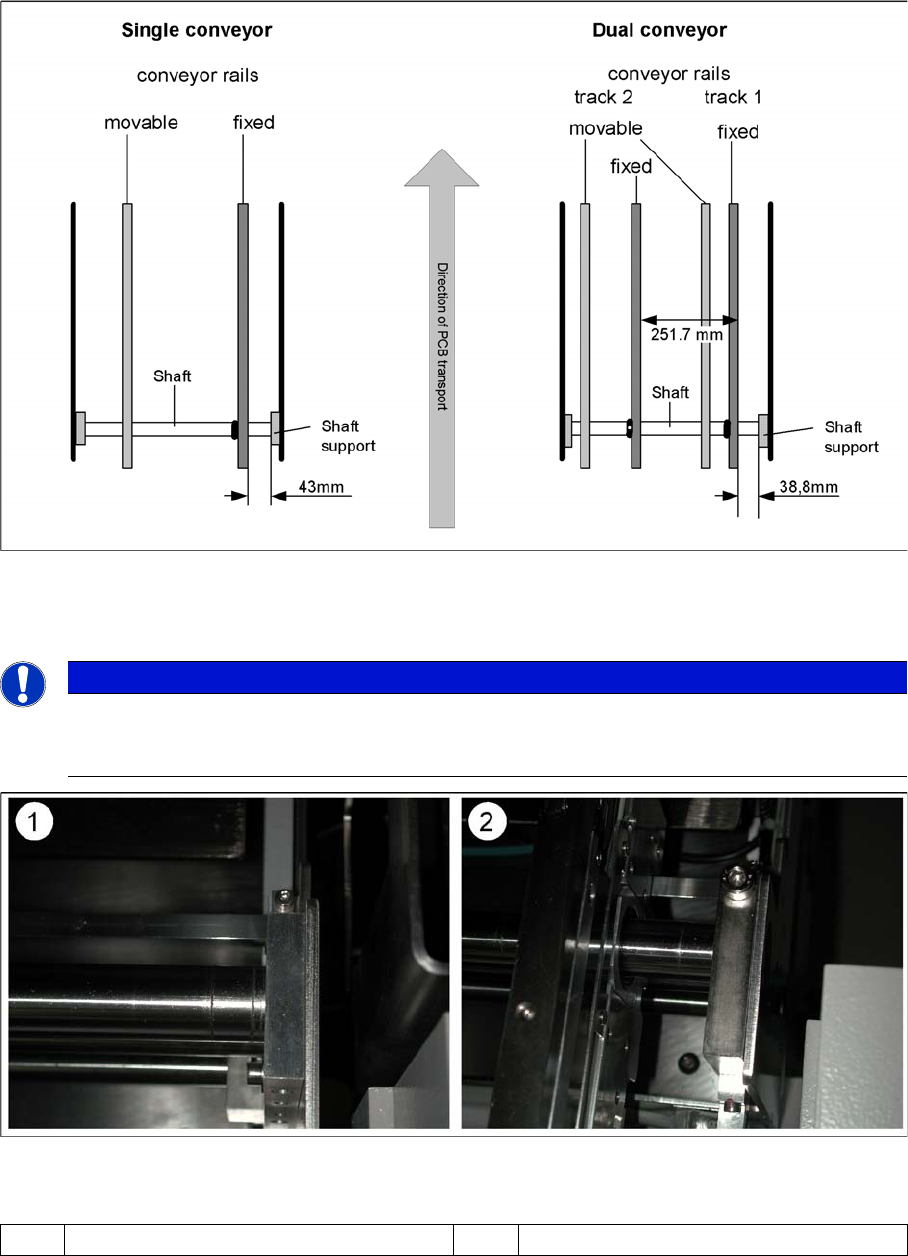

Setting the "fixed conveyor edge" in SIPLACE X, HF series
Shaft mount (bearing flange)
Legend
▪ After teaching the fixed conveyor edge, you need to recalibrate the PCB reference corner, to prevent
fiducial errors during placement.
NOTICE
Since July 2007 there is a new version of the shaft mount (bearing flange) for X machines with
single conveyors with 15 mm width instead of 12 mm. The setting for the standard single
conveyor therefore changes to 40 mm when this new version is used.
(1) Bearing flange – first version 12 mm (1) Bearing flange – new version 15 mm
Modular Conveyor
Setting the Fixed Conveyor Edge (from SW701) Conveyor Settings
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 394
Connecting the Dual Conveyor Lifting Tables
11.3.2.2 Connecting the Dual Conveyor Lifting Tables
► Remove the lifting table plate on conveyor lane 2 in PA1 and on lane 1 in PA2.
► Loosen the lockscrew(s) (4) and use a screwdriver to push the hexagonal circlip over the shaft on
lifting table 1.
► Perform lifting table connection for all placement areas (arrangement rotated by 180°.)
► Configure the new conveyor mode in SIPLACE Pro
NOTICE
The fixed conveyor side may only be adjusted per software and with the width adjustment
devices. This ensures that the conveyor edges are in their correct positions (parallel) i.e. that
the conveyor runs straight.
NOTICE
This option is only a mechanical necessity when you use the dual conveyor as a single
conveyor. The two lifting tables move parallel when they are connected.

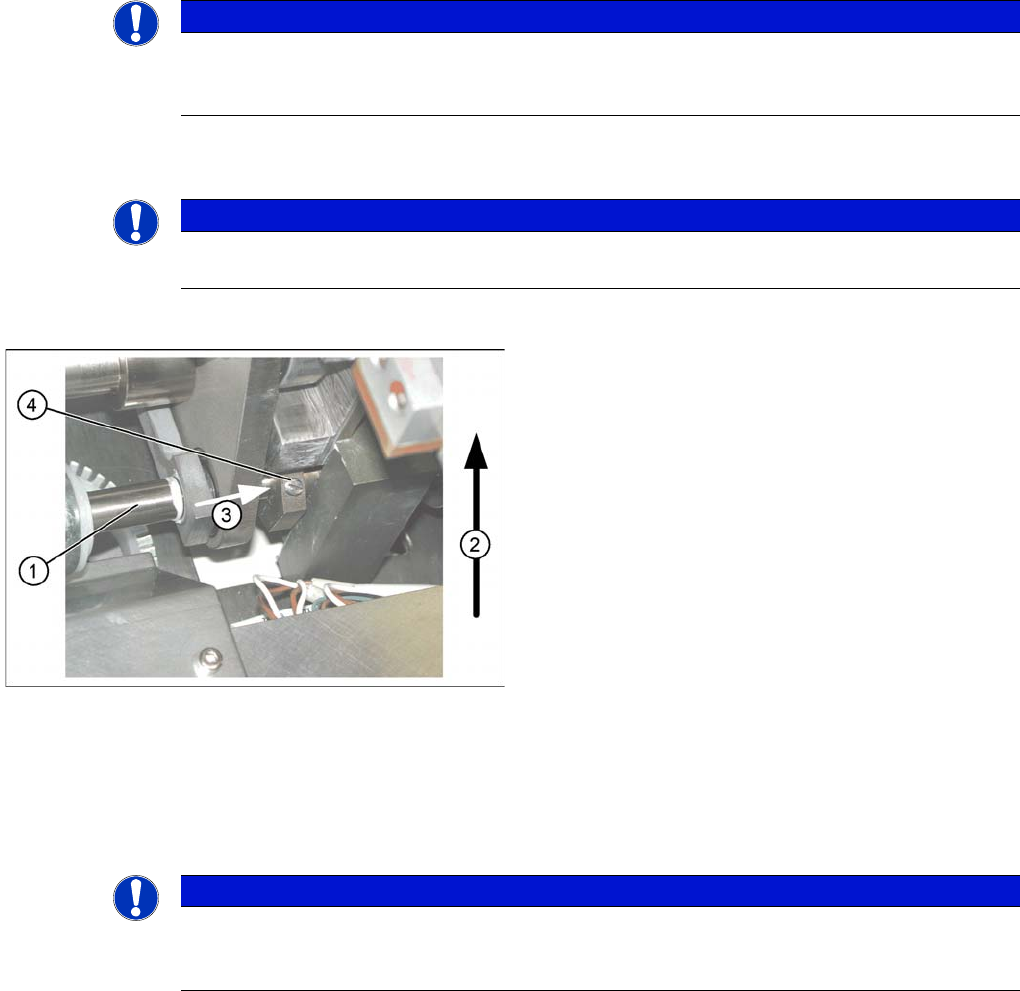

Lifting table
▪ The drive shaft (1) is connected to the piston rod of
the pneumatic cylinder. This shaft couple the second
lifting table of the dual conveyor. The lifting table drive
shaft also has an additional rod with a hexagonal
circlip. They secure the sleeve shaft in the desired
position.
▪ Direction of transport (2).
▪ Direction (3) in which the hollow shaft from lifting
table 2 (1 in PA 2) is to be moved to lifting table 1 (2
in PA 2).
▪ Lock screws (4).
NOTICE
When converting the dual conveyor to a single conveyor (flexible dual conveyor), connect and
disconnect the lifting tables when requested to do so by the station software. This function is
supported by SIPLACE Pro .
Modular Conveyor
Conveyor Settings Width Adjustment Unit
395 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Width Adjustment Unit
11.3.3 Width Adjustment Unit
Setting the Pr oximity Switc h on the Adjus tment Unit
11.3.3.1 Setting the Proximity Switch on the Adjustment Unit
► When installing the proximity switch, make sure that this is level with the adjustment unit housing.
► The switching point is set via the actuator on the conveyor edge.
► Move the adjustment unit under the conveyor edge, then loosen the actuator using the screw.
► Place the distance gauge 0.2 mm on the adjustment unit, press the actuator against the gauge and
fix with the screw.
► Check the actuators on all conveyor edges and adjust where necessary.
► You then need to calibrate the conveyor edges with the software.
Overview of the proximity switches on the width
adjustment unit
Legend
1. Short-stroke cylinder
2. Solenoid valve
3. Proximity switch for pneumatic cylinder (for "locking
pin up" recognition)
4. Proximity switch for adjustment unit(for conveyor
edge recognition)
▪ The proximity switch (3) serves as a signal for
controlling the pneumatic valve of the adjustment
unit. Once the switching point "conveyor edge
present" has been reached, the conveyor edge is
connected via the pneumatic valve.
