Modular Conveyor
Lifting Table Functions Conveyor Settings
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 404
Lifting table down function
Requirements for detecting that the lifting table is down:
▪ 30-35 pulses from the incremental disc
▪ Proximity switch on the lifting table cylinder
▪ Dynamic response for board release of approx. 480 ms
Adjustin g the Spee d of the Lifting Table (fr om SW701)
11.3.8.1 Adjusting the Speed of the Lifting Table (from SW701)
► If the travel times are not inside the tolerance range or if error messages appear during production,
adjust the travel times as follows:
► Adjust the valve on the lifting table cylinder, so that you get the following values:
► If malfunctions occur during the downwards movement or if the board is shaken, reduce the lowering
speed accordingly.
Time needed to move lifting table up with lifting table
plate
► Switch the machine on.

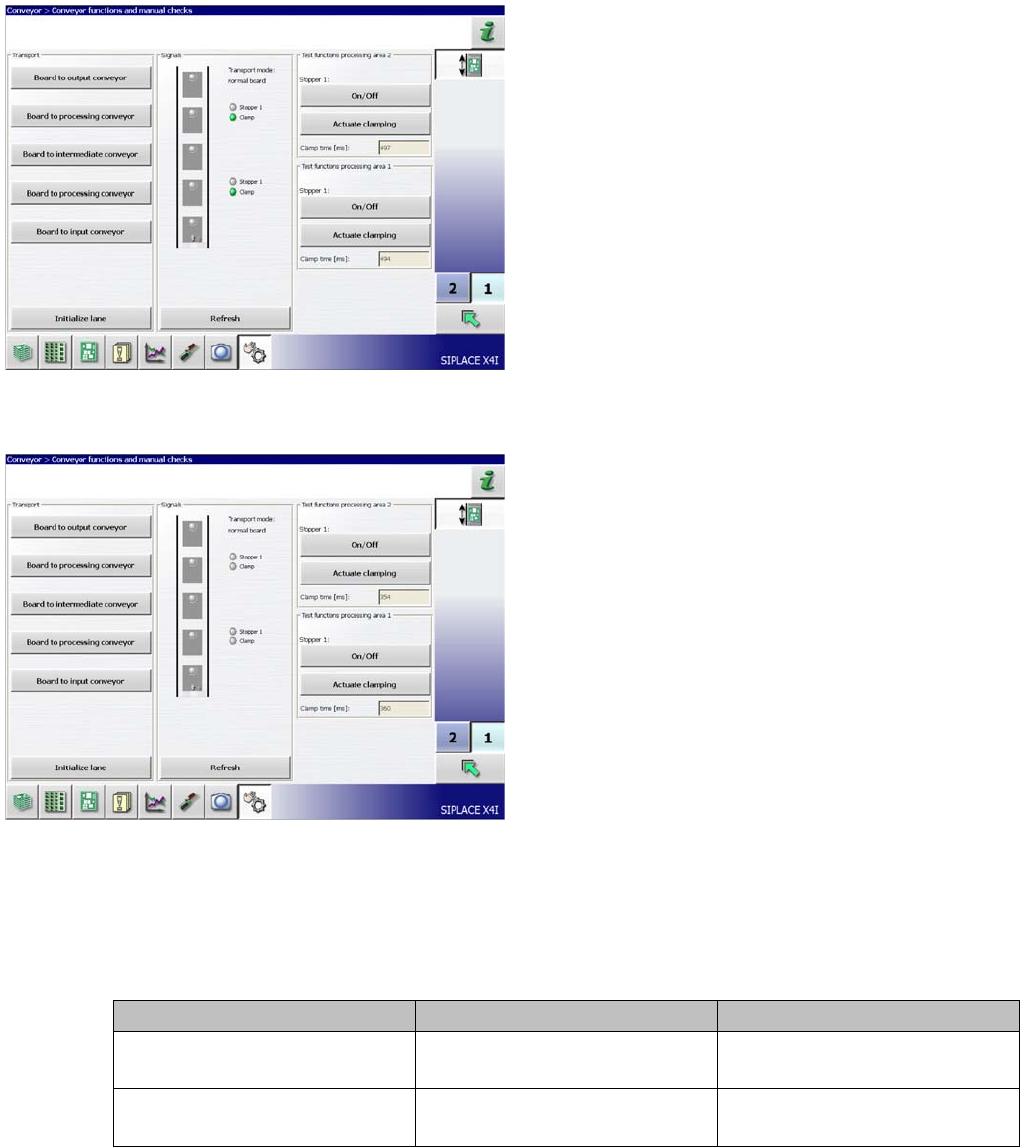

► In the Conveyor --> Conveyor functions and
manual checks menu, you can move the lifting
table up and down. The time is shown directly.
► Click on Actuate Clamp.
Time needed to move lifting table down with lifting table
plate
► The lifting table will be moved up and the travel time
will be displayed (see diagram).
► Press the Actuate Clamp button again to move
the lifting table downwards and to view the travel time
for the downwards movement.
Lifting Table Move upwards Move downwards
Lifting table (standard)
bumper: 20 mm
520 ms +/- 20 ms 480 ms +/- 20 ms
Lifting table (X4I)
bumper: 35 mm
430 ms +/- 20 ms 400 ms +/- 20 ms
Modular Conveyor
Conveyor Settings Checks After Mechanical Work on the Conveyor
405 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Setting valve anticlockwise: Decrease the lifting table moving time
Setting valve clockwise: Increases the lifting table moving time
Setting the Lifting Table Unit [003586 84-05]
11.3.8.2 Setting the Lifting Table Unit [00358684-05]
Checks After Me chanical Work on t he Conveyor
11.3.9 Checks After Mechanical Work on the Conveyor
Check: The distance between the top edge of the conveyor belt and the top stop should be 6 mm.
Legend
1. (3) adjust valve downwards
2. (4) adjust valve upwards
Setting the damping unit
The damping unit (1) allows the lifting table to move
gently upwards. When the PCB is clamped, it also
prevents excessive bounce by the PCB.
► Check whether the damping unit is fixed with the
locknut (2) in the mounting block and that the plunger
(3) of the damping unit is just touching the actuator
(4). In this default setting, the lifting table should
move up gently.
► If this is not the case, loosen the locknut at the
mounting block and turn the damping unit approx.
one rotation into the mounting block..
► Move the lifting table upwards, with the help of the
software.
► The lifting table should move gently upwards.
The PCB clamping should not engage audibly and
there should be no PCB clamping error message.
► Check the speed of the lifting table and correct where
necessary.
Modular Conveyor
Conveyor Control TSP 301 Conveyor Settings
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 406
Conveyor Control TSP 301
11.3.10 Conveyor Control TSP 301
Jumper Settings for TSP 301
11.3.10.1 Jumper Settings for TSP 301
DIL switch S4 at TSP 301
* Switches 1 and 2 set the hardware ID 5 for D4 machines and hardware ID 6 for X4I, X series, HF and
D3.

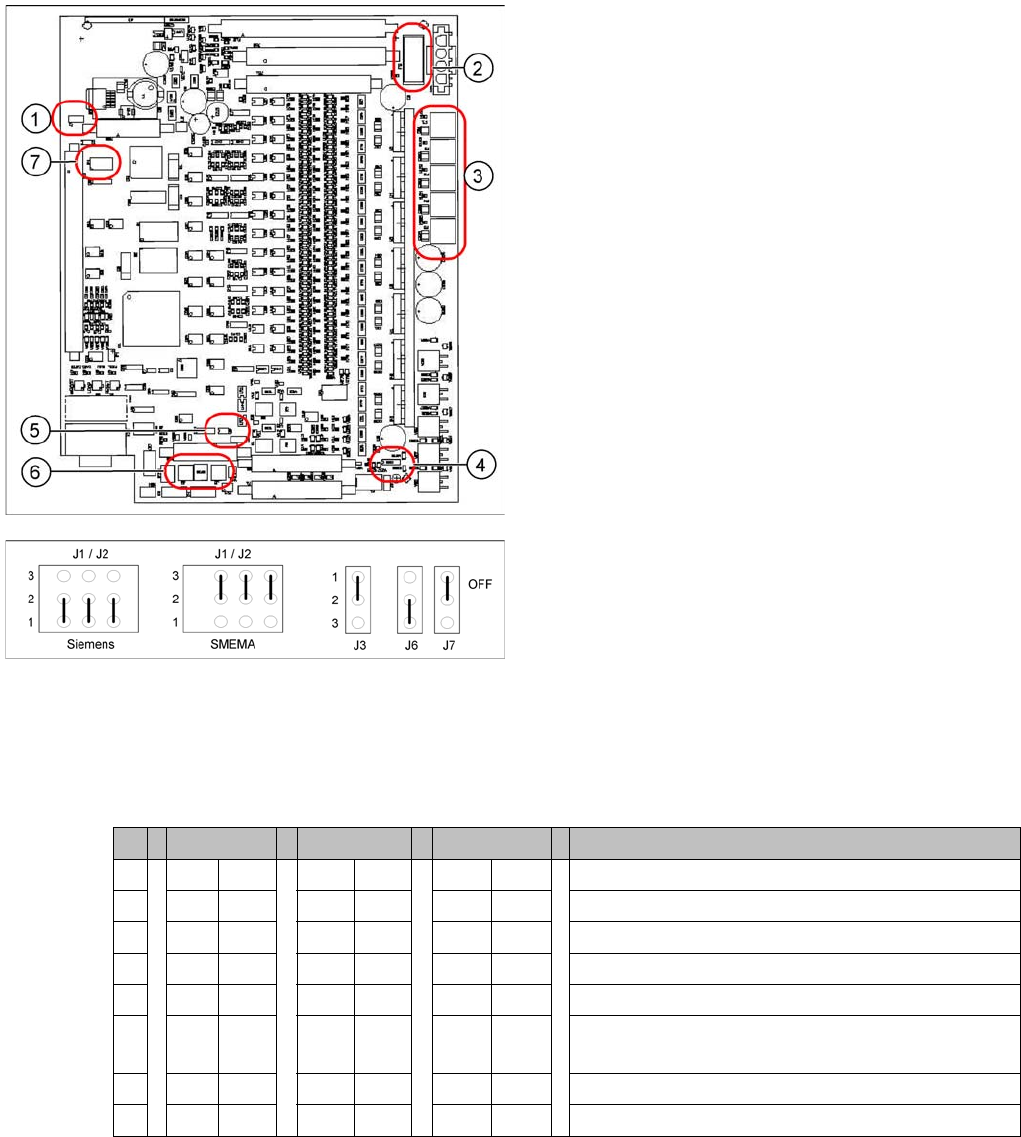

Legend
1. J7 CAN bus 1 terminating resistor
2. F6 Main Fuse TSP 301
3. F1 - F5 Fuses for the conveyor motors
4. J3 interference loop
5. J6 CAN bus 2 terminating resistor (not used)
6. J2, J1 successor/predecessor station
7. S4 DIL switch
Jumper J1, J2 "downstream/upstream station" at TSP
301
Legend
▪ J1 predecessor station
▪ J2 successor station
▪ J3 interference loop (EMERGENCY STOP on
productivity lift also switches the placement machine
off)
▪ J6 CAN bus 2 terminating resistor (not used)
▪ J7 CAN bus 1 terminating resistor
S X4I D4 X/D3/HF Comments
1* ON ON ON ON
2* OFF ON OFF ON = SIPLACE D4, OFF: SIPLACE X, HF, D3, X4I
3 OFF OFF OFF OFF= clamping sensor is no longer used
4 ON ON OFF OFF ON ON = quad lane, OFF: default conveyor
5 OFF OFF OFF Not in use
6 OFF ON OFF OFF ON OFF: Default conveyor, ON: quad lane (conveyor
edges fixed on outside)
7 OFF OFF OFF Not in use
8 OFF OFF OFF Not in use
