Head Modularity
Important Information
415 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Head Modularity
12 Head Modularity
Importan t Inform ation
12.1 Important Information

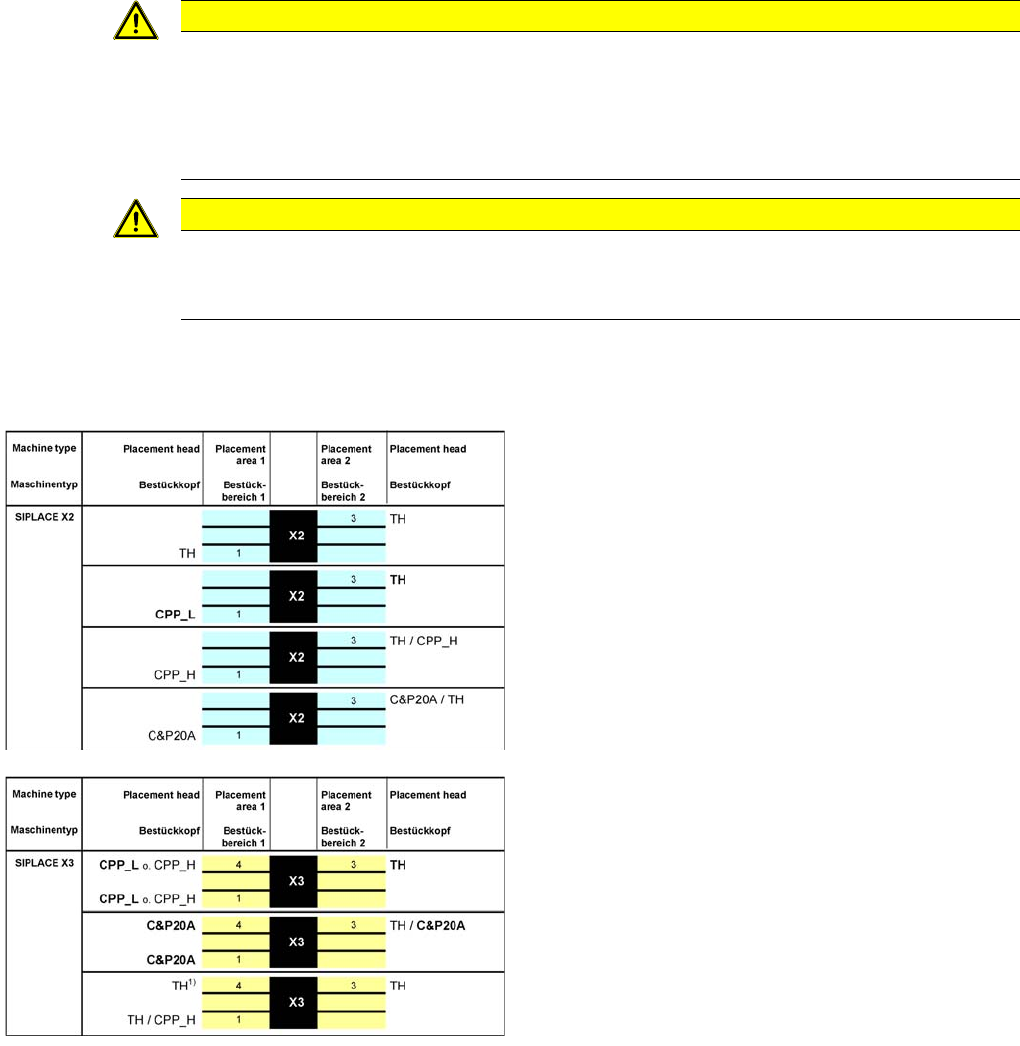

SIPLACE X and X4I Configuration Op tions
12.2 SIPLACE X and X4I Configuration Options
CAUTION
Head exchange
When replacing the Twin Head with a CPP head with MTC2 in this placement area, you need
to fit a bumper extension, to limit the Y travel range. After switching the machine back on, you
then need to redetermine the machine zero point and the travel ranges.
When you use a Twin Head again, you need to remove the bumper extension.
CAUTION
Risk of head crash!
When installing a CPP head with a stationary camera, this needs to be fitted in the top position,
otherwise there is a risk of a head crash!
Legend
▪ Placement heads
▪ 1/2/3/4 = Gantry 1/2/3/4
▪
1)
: The TH/TH combination in one PA was introduced
with SW 603 and may only be used with the
stationary cameras with VLT33. This also applies to
CPP / CPP or CPP / TH combinations. Retrofitting
kits have been defined to upgrade machines already
in operation.
