Head Modularity
Head Modularity Production requirements
417 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
▪ Alternating mode with a dual conveyor, dual conveyor as single conveyor or a single conveyor.
This placement mode is the mode known for X series machines: One gantry picks up components,
while the other gantry places components. In each placement area, a board is placed alternately by
both placement heads.
▪In I-Placement mode with a dual conveyor or quad lane conveyor.
In this placement mode, both gantries in a particular placement area place independently of one
another. Each gantry places a certain board on its own conveyor lane (1 or 2 ). I Placement mode is
possible without synchronization up to a board width of 76.5 mm. Boards with widths up to 180 mm
require gantry synchronization, although placement is still performed independently for each lane.
This means that two boards can be placed at the same time on a single conveyor, one in PA1 and the
other in PA 2. When using a dual conveyor, four boards can be placed at the same time and when using
a quad lane conveyor, this is increased to an impressive eight boards at the same time.
Head Modularity
12.3 Head Modularity
Producti on requirements
12.3.1 Production requirements

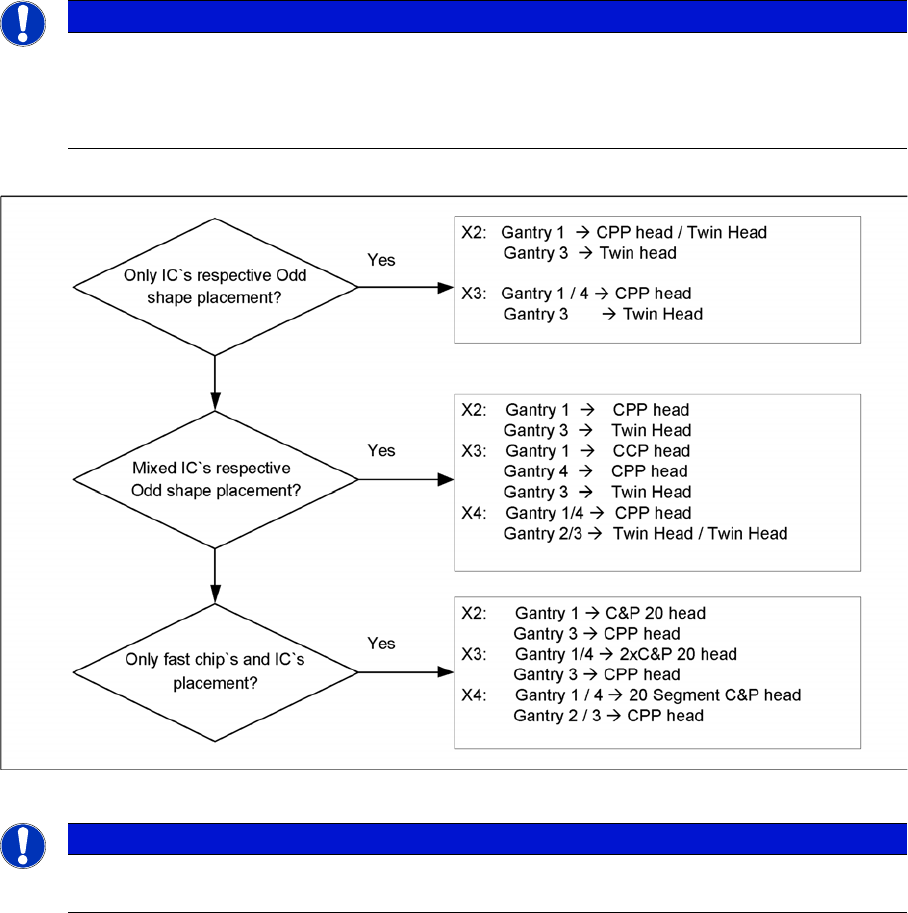

Which decisions must be taken before head exchange?
Decisions before head exchange
NOTICE
Reconfiguration of a SIPLACE X machine
The new configuration of the SIPLACE X machine should be maintained for a longer production
time for that product and should not be changed again on a weekly basis, as machine
reconfiguration and recalibration can take at least a day, depending on the machine type.
NOTICE
When using mixed placement, you need to decide which camera type is to be used for the CPP
head to achieve the widest possible component spectrum.
Head Modularity
Production requirements Head Modularity
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 418

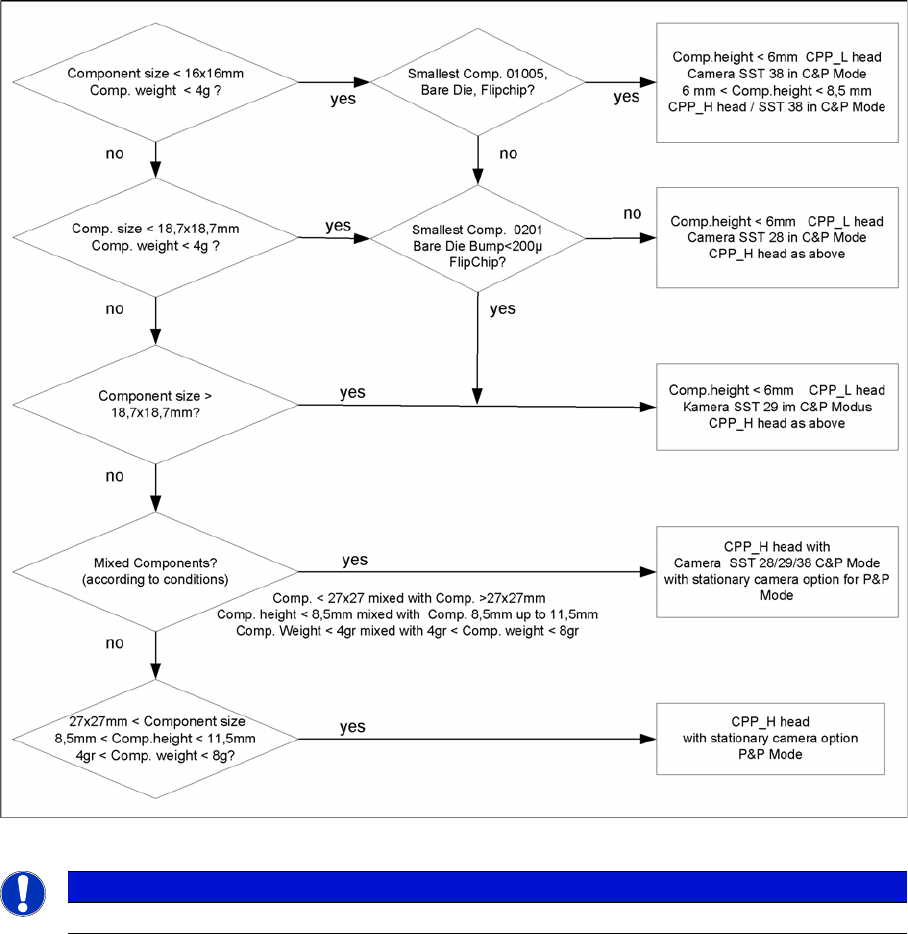

Decision criteria for selection of position and camera types of CPP head
NOTICE
For the option Head Modularity, use the retrofitting guide
"Head Reconfiguration Kits"
.
Head Modularity
Head Modularity Head Exchange
419 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)

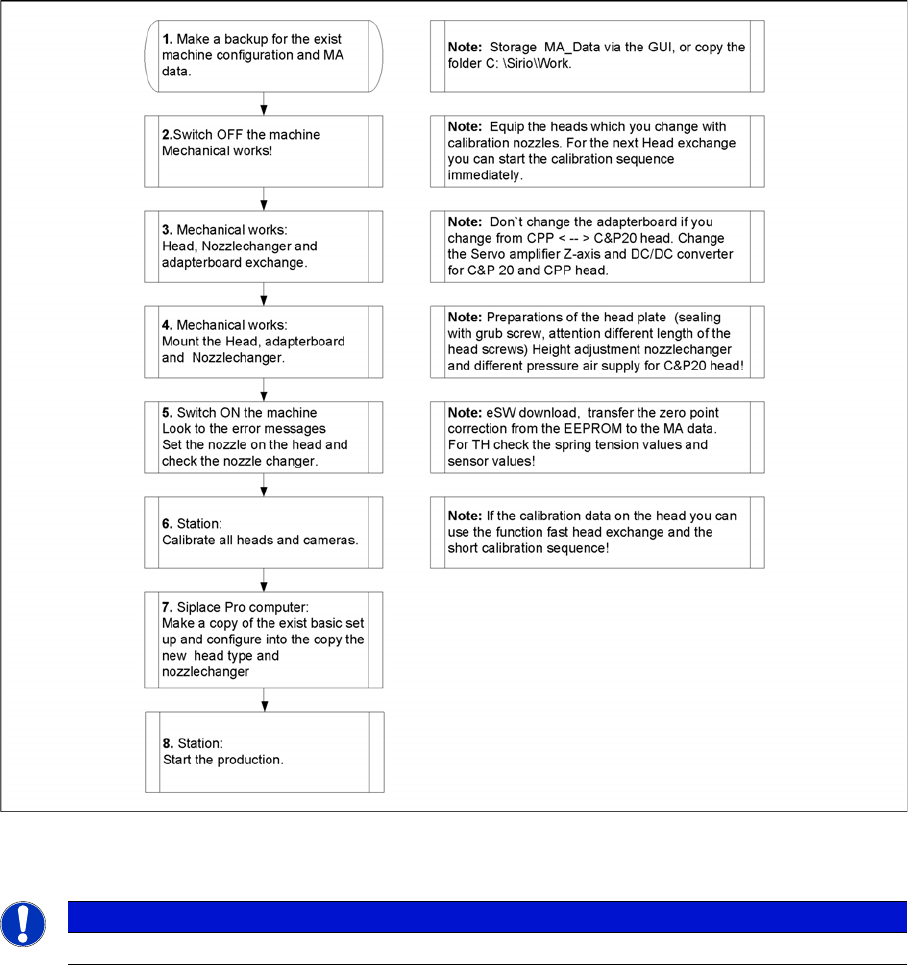

Head Exchange
12.3.2 Head Exchange
Calibration
12.3.3 Calibration
SIPLACE X C&P
► Calibrate zero point correction both gantries.
► Calibrate PCB camera
► Calibrate C&P head
► Component Camera
▪ Segment offset 2
▪ Segment offset 1
► Calibrate nozzlechanger (inclusive automatic pick up height)
NOTICE
See Chapter "Calibration".
