Head Modularity Axis Unit A364 Slots in the Axis Unit Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 430 Legend Axis Unit A364 with CPP-Twin Head 12.9.1.2 Axis Unit A364 with CPP-Twin Head Legend 1 Serv o amplifier st…
Head Modularity
Slots in the Axis Unit Axis Unit A364
429 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
– For the DLM heads:
A1 DP axis for the lower numbered gantry
A3 DP axis for the higher numbered gantry in the placement area.
– For the TWIN Head DP axis:
A1 for DP_segment 1 and A2 for DP_segment 2
of the lower numbered gantry and A3 for DP_segment 1 and A4 for DP_segment 2 of the higher
numbered gantry.
In relation to the axis controller board in slot 3, one can say that the upper part of the axis controller board
(A1, A2) is assigned to the axis controller board in slot 1, while the lower part of the axis controller board
(A3, A4) is assigned to the axis controller board in slot 2.
Servo board assignment:
The servo boards for the relevant head are the same in the upper and lower part of the axis unit.
Axis Unit A364
12.9.1 Axis Unit A364
Further development of the X series, to include the SW 603 and the A364 axis controller board, provides
operators with new head configuration options and axis assignment options on the axis controller board.
Axis Unit A364 wi th CPP-CPP

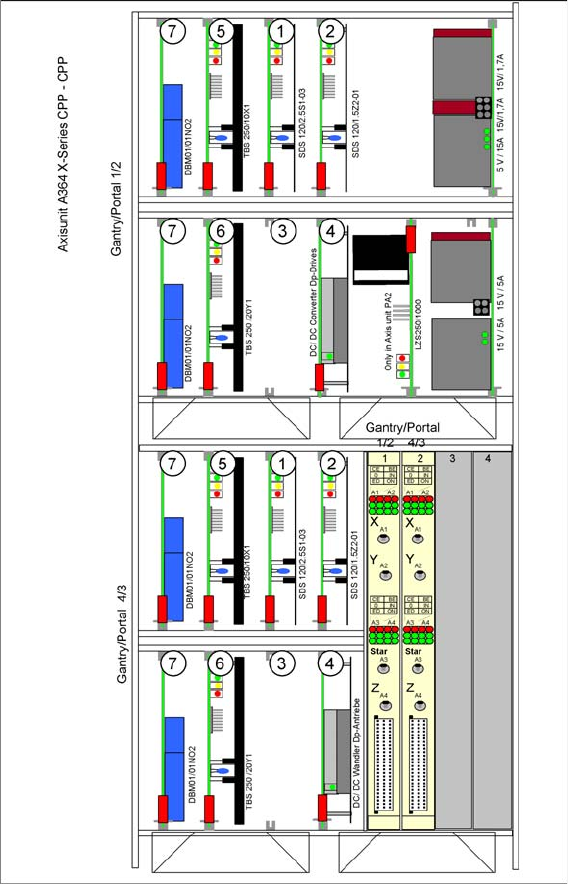

12.9.1.1 Axis Unit A364 with CPP-CPP
Head Modularity
Axis Unit A364 Slots in the Axis Unit
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 430
Legend
Axis Unit A364 with CPP-Twin Head

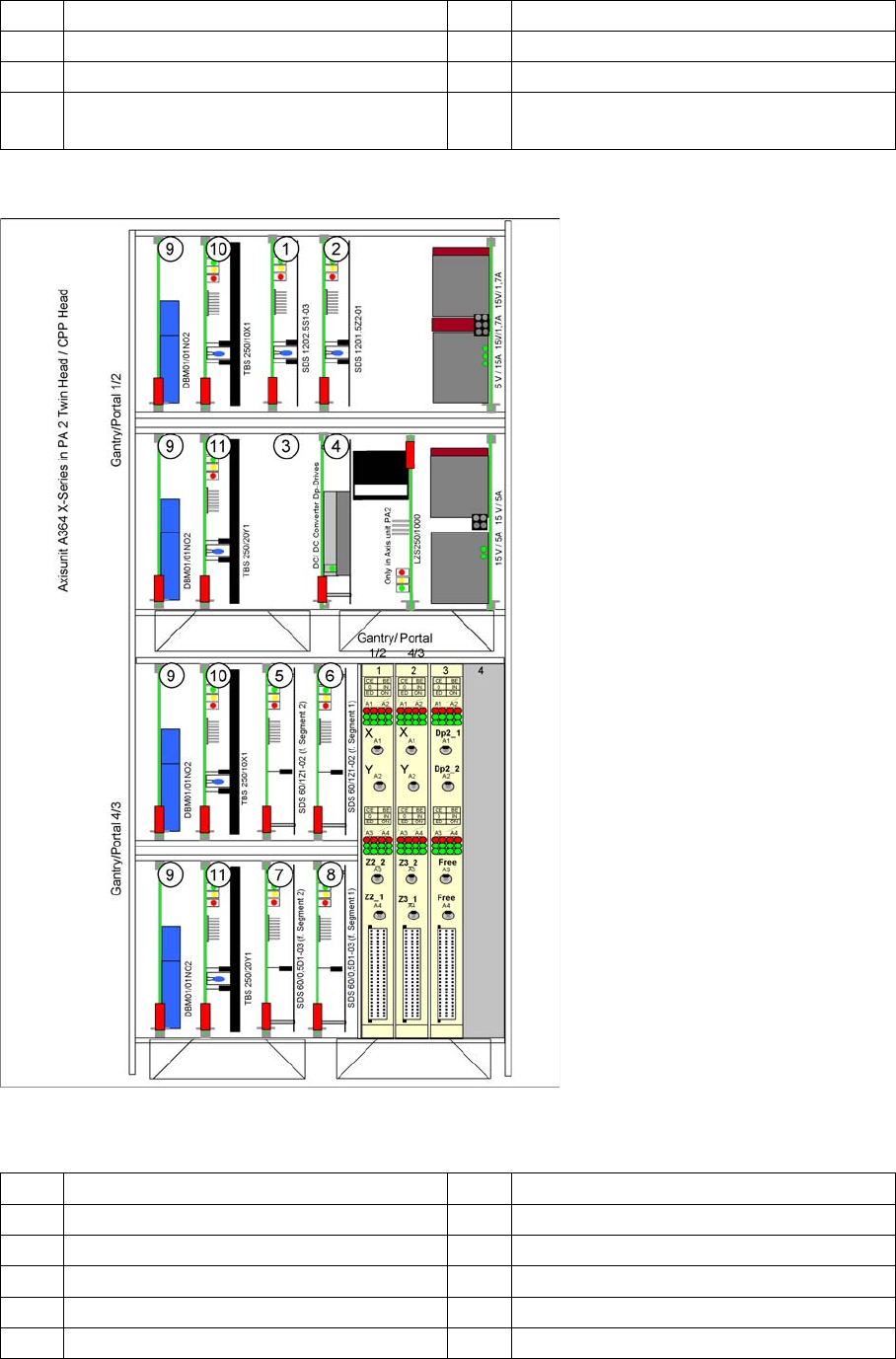

12.9.1.2 Axis Unit A364 with CPP-Twin Head
Legend
1 Servo amplifier star axis 5 Servo amplifier X axis
2 Servo amplifier Z axis 6 Servo amplifier Y axes
3 Free space 7 Brake board for each X axis and Y axis
4 24V-DC/DC converter - voltage supply for
DP axes
1 Servo amplifier star axis 7 Servo amplifier for D-axis Segment 2
2 Servo amplifier Z axis 8 Servo amplifier for D-axisSegment 1
3 Free space 9 Brake board for each X axis and Y axis
4 24V-DC/DC converter 10 Servo amplifier X axes
5 Servo amplifier for Z axis Segment 2 11 Servo amplifier Y axes
6 Servo amplifier for Z axis Segment 1
Head Modularity
Slots in the Axis Unit Axis Unit A364
431 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Axis Unit A364 with Twin Head-Twin Head
12.9.1.3 Axis Unit A364 with Twin Head-Twin Head
Legend
1 Servo amplifier for Z axis Segment 2 5 Servo amplifier for X axes
2 Servo amplifier for Z axis Segment 1 6 Servo board for Y axis, placement area 2,
gantry 3
3 Servo amplifier for D-axis Segment 2 7 Brake board for each X axis and Y axis
4 Servo amplifier for D-axisSegment 1
