Head Modularity Axis Unit A364 Slots in the Axis Unit Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 432 Axis Unit A364 wi th C&P20A-C&P20A 12.9.1.4 Axis Unit A364 with C&P20A-C&P20A Legend 1 Serv o am…
Head Modularity
Slots in the Axis Unit Axis Unit A364
431 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Axis Unit A364 with Twin Head-Twin Head

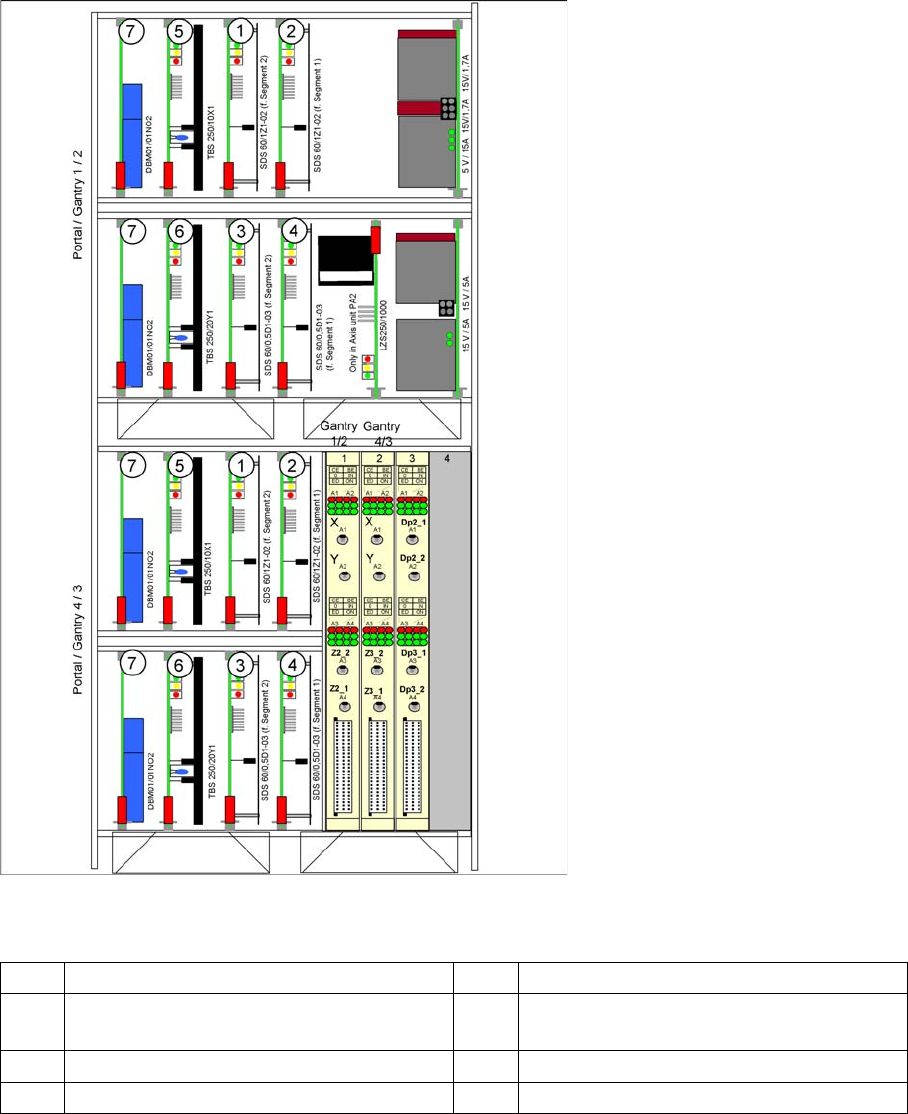

12.9.1.3 Axis Unit A364 with Twin Head-Twin Head
Legend
1 Servo amplifier for Z axis Segment 2 5 Servo amplifier for X axes
2 Servo amplifier for Z axis Segment 1 6 Servo board for Y axis, placement area 2,
gantry 3
3 Servo amplifier for D-axis Segment 2 7 Brake board for each X axis and Y axis
4 Servo amplifier for D-axisSegment 1
Head Modularity
Axis Unit A364 Slots in the Axis Unit
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 432
Axis Unit A364 wi th C&P20A-C&P20A

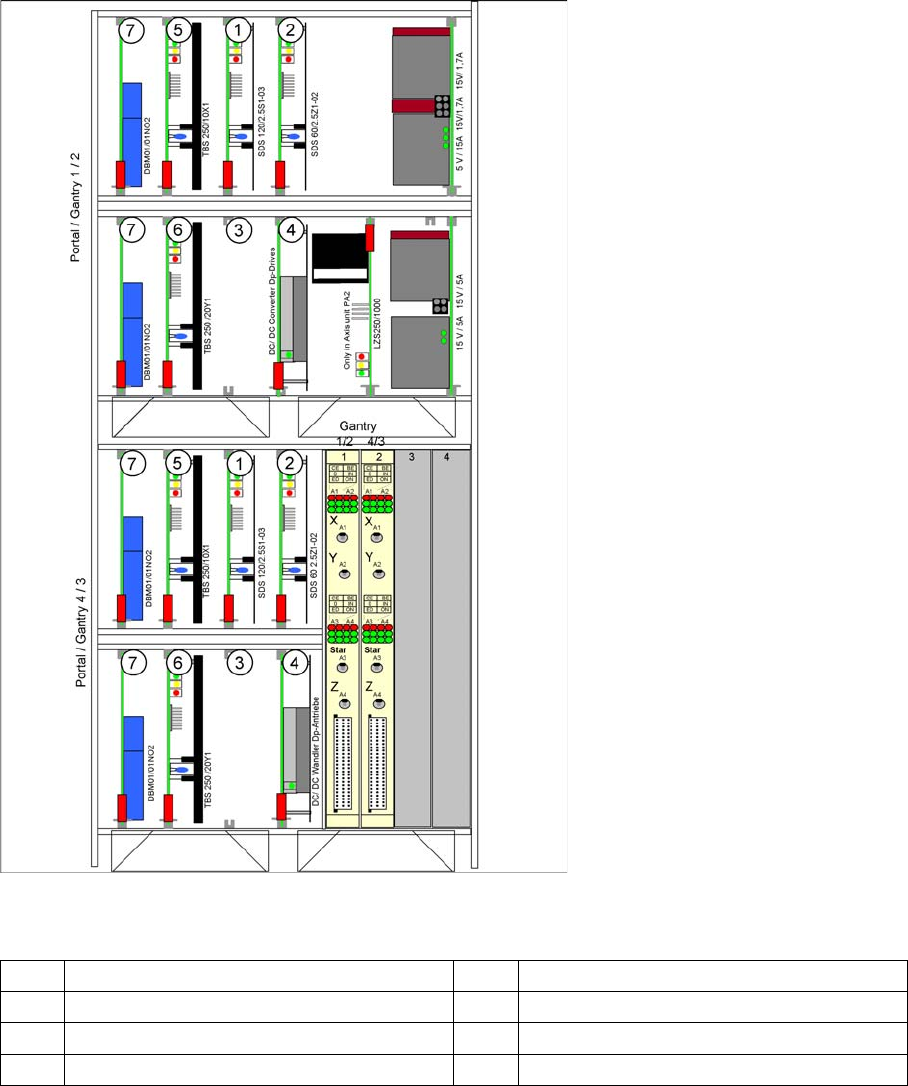

12.9.1.4 Axis Unit A364 with C&P20A-C&P20A
Legend
1 Servo amplifier star axis 5 Servo amplifier X axes
2 Servo amplifier Z axis 6 Servo amplifier Y axes
3 Free space 7 Brake board for each X axis and Y axis
4 24V DC/DC converter DP drives
Head Modularity
Slots in the Axis Unit Axis Unit A364
433 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Axis Unit A364 with Twin Head
12.9.1.5 Axis Unit A364 with Twin Head
Legend
1 Servo amplifier for Z axis Segment 2 5 Servo amplifier for X axes
2 Servo amplifier for Z axis Segment 1 6 Servo amplifier for Y axes
3 Servo amplifier for D-axis Segment 2 7 Brake board for each X axis and Y axis
4 Servo amplifier for D-axisSegment 1
