MTC2
Overview Technical Data
439 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Technical Data
13.1.3 Technical Data
Dimensions, weight, miscellaneous data
13.1.3.1 Dimensions, weight, miscellaneous data
Electric al Connec tions
13.1.3.2 Electrical Connections
Noise Emis sion Informati on
13.1.3.3 Noise Emission Information
Permitted ambient conditions
13.1.3.4 Permitted ambient conditions
Tower 1 (XL) Tower 2
Dimensions (L x W x H) 1340 x 610 x 1490/1660 mm
Weight (basic configuration) approx. 500 kg (incl. cassettes and WTCs)
Weight (set up completely) approx. 534 kg (with components)
Weight (moving mass) approx. 80 kg approx. 43.5 kg
Cassette size (L x W x H) 391.2 x 305.6 x 93.3 mm 352.7 x 154.8 x 133.8 mm
Cassette weight
(fully configured)
approx. 11 kg approx. 7.5 kg
WTC size (L x W x H) 386.5 x 295.8 x 11.1 mm 371 x 146 x 10.1 mm
Pitch between cassettes 96 mm 135 mm
Pitch between levels 12 mm 11.8 mm
Vertical travel 444 mm (1st through 40th WTC) 511.2 mm (1st through 40th
WTC)
Horizontal travel approx. 647 mm approx. 638 mm
(between removal and transfer positions)
Storage capacity 30 WTC XL with 40 WTC with
60 JEDEC or 30 special WPTs
max. size
40 JEDEC WPT
Changeover time (over 5 levels) approximately 2 s approximately 1.5 s
Maximum component height
(incl. WTC)
30 mm 15.5 mm
(For WT height > 7.62 mm 1 level must remain free,
For WT height >12.19 mm 2 levels must remain free)
Maximum floor load
(fully configured)
6.93 kg/cm
2
or 356 kg/cm
2
per foot per roller
Supply voltage 3 x 400 V~, 50 Hz (Europe)
3 x 208 V~, 60 Hz (USA)
Total power 1.5 kW
Rated current 2.7 A for 3 x 400 V~
4.2 A for 3 x 208 V~
Fuse rating 3 x 16 A
Rated current consumption by the largest consumer 2 A
Maximum noise level 74 dB (A)
Room temperature between 15°C and 35°C
Humidity 30 - 75%
(on average no higher than 45%, to prevent
condensation on the machine at all times.)
MTC2
Operational Safety Overview
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 440
Operational Safety
13.1.4 Operational Safety
Safety Instruc tions
13.1.4.1 Safety Instructions
Warning and Information L abels on the MTC2
Warning and Information Labels on the MTC2
CAUTION
The following pages contain only the most important safety information.
► Please observe the safety instructions detailed in the current operating instructions.

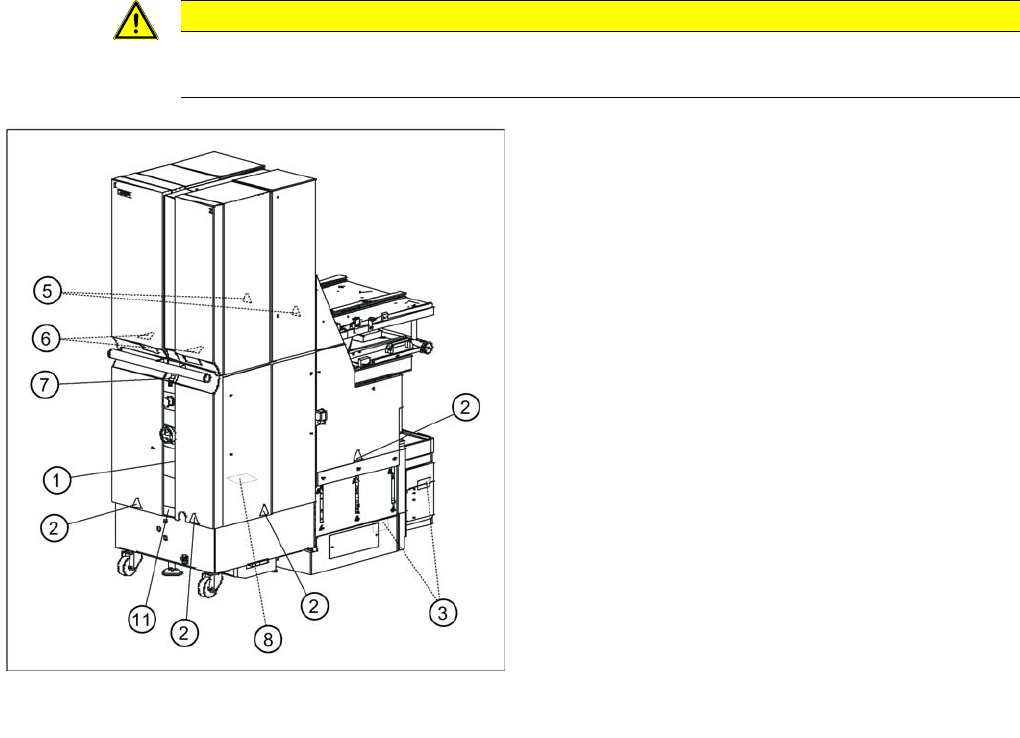

Location of the warning labels on the MTC2 (right-hand
side)
Legend
1. Information label below the main switch
2. Warning labels on the enclosures around the electric
parts
3. Warning label by the lifting axis motors
4. Warning labels by the toothed belts of the lifting axis
and feed axis
5. Warning labels in the feeding area and the lifting
frame area
6. Warning labels in the refill area (behind the protective
doors)
7. Information label at the ground terminal
8. Warning labels on the motor controller covers (below
the enclosure)
9. No loads warning by the feed axis
10. Information labels above the guides for the fork lift
truck
11. Information label for the cranking device
MTC2
Overview Operational Safety
441 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Warning Labels
Warning Labels
Information label below the main switch

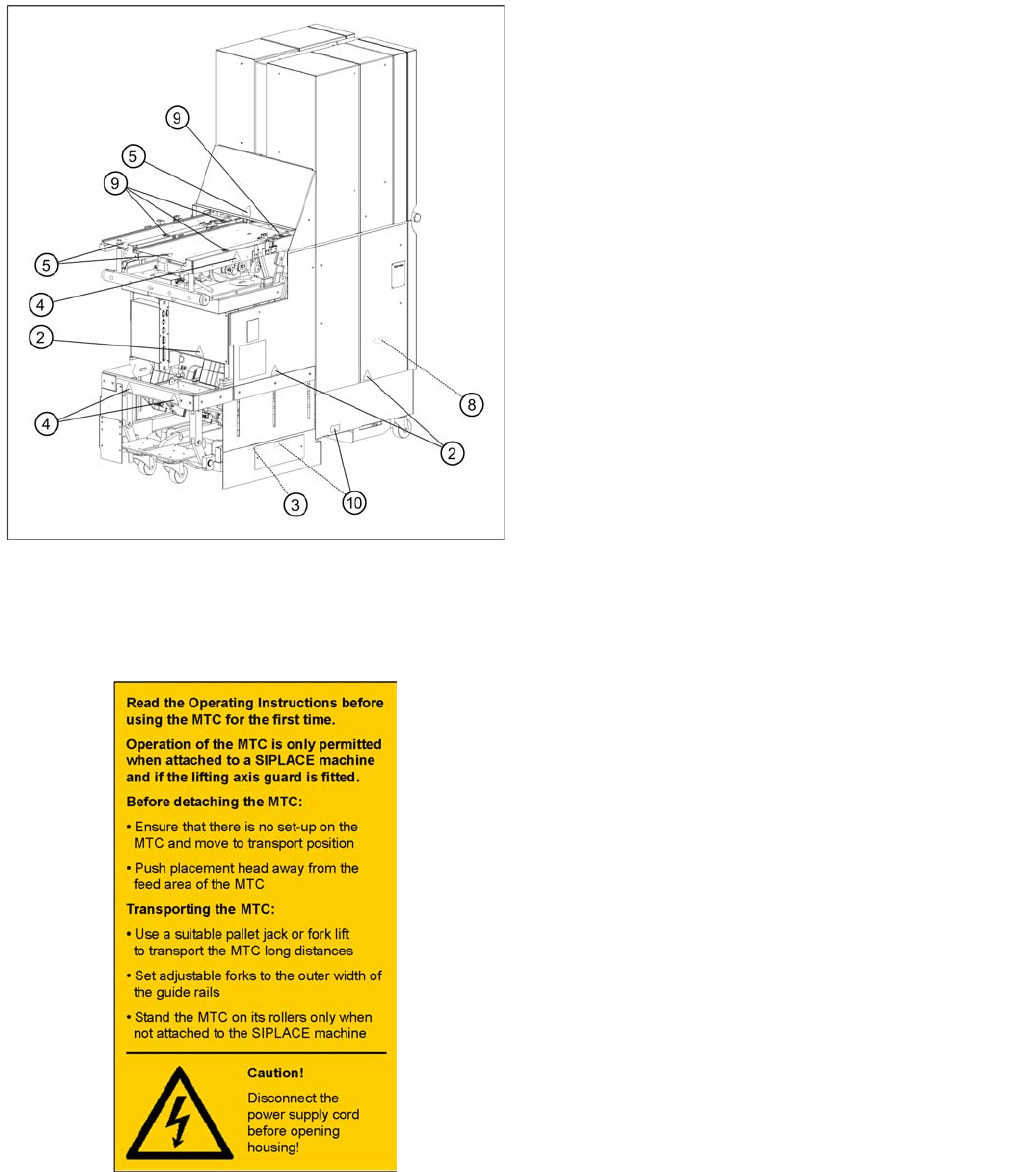

Location of the warning labels on the MTC2 (left-hand
side)
Legend
1. Information label below the main switch
2. Warning labels on the enclosures around the electric
parts
3. Warning label by the lifting axis motors
4. Warning labels by the toothed belts of the lifting axis
and feed axis
5. Warning labels in the feeding area and the lifting
frame area
6. Warning labels in the refill area (behind the protective
doors)
7. Information label at the ground terminal
8. Warning labels on the motor controller covers (below
the enclosure)
9. No loads warning by the feed axis
10. Information labels above the guides for the fork lift
truck
11. Information label for the cranking device
