MTC2
Construction and mode of operation Placement Functions
461 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
"Matrix-tra y changer" v iew (Examp le: locatio n 2)
13.2.8.3 "Matrix-tray changer" view (Example: location 2)
Terms used for the occupancy of a cassette
13.2.8.4 Terms used for the occupancy of a cassette
▪ Status
Status display for the current component level
▪ Component level
Current and maximum component level (is updated approximately every 30 seconds during
placement).
▪ Level
Number of the level
(a cassette is subdivided into 6 or 10 levels)
▪ Division
Number of the component division in the waffle pack tray
(a maximum of 150 divisions can be defined.)
▪ Component name
Name of the corresponding component in the waffle pack tray
Functio ns in the "Matrix-tray cha nger" vi ew
13.2.8.5 Functions in the "Matrix-tray changer" view
▪ Button Go to refill position
The MTC2 moves the tower to the refill position of the selected cassette.
The status indicator of the active tower turns yellow.
▪ Button Finish refilling position
Refilling is completed and placement with the selected cassette continues.
The status indicator of the active tower turns green.
▪ Button Prepare level
The selected tray will be moved out to the transfer position.

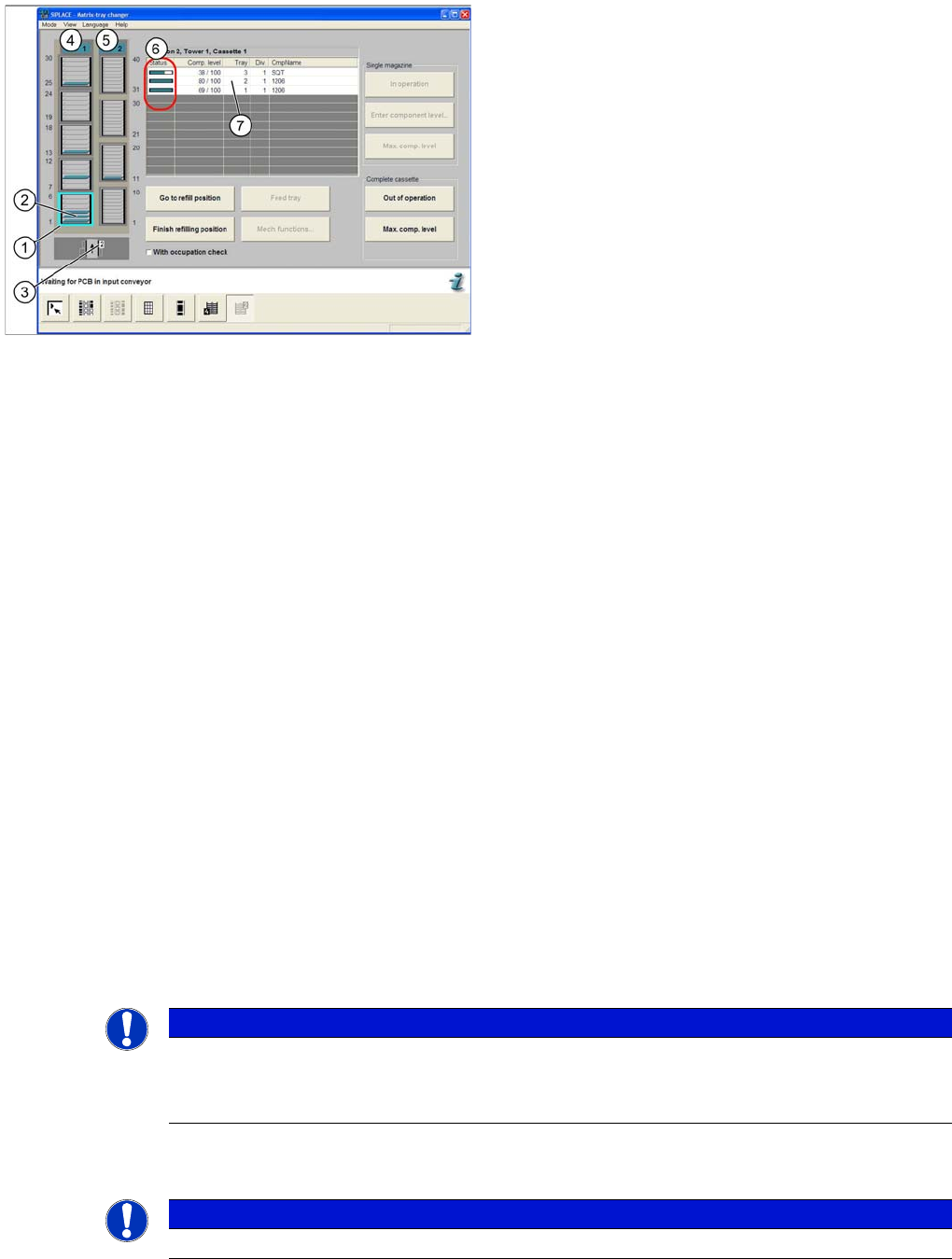

"Matrix-tray changer" view
Legend
1. Selected cassette
2. Levels in the cassette
3. View of the location
4. Status indicator for tower 1
5. Status indicator for tower 2
6. Display of component level and occupancy of the
selected cassette
7. Selected list entry for a level
NOTICE
If the checkbox With occupation check is selected, the setup of the refilled cassette will
be checked by moving to every level of the selected cassette.
The result of the check is displayed in a separate dialog box.
NOTICE
If there is already a waffle pack tray in the transfer position, it is first moved back to the tower.
MTC2
MTC2 - Individual Functions Construction and mode of operation
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 462
▪ Button Mechanical functions...
To call up the individual functions for the MTC2, see Section 13.2.9 "MTC2 - Individual Functions".
Field Single magazine:
▪ Button In operation
The waffle pack tray in the selected level is put into operation, which means that components can be
picked up from it. The component filling level for this level is displayed in green in the table.
▪ Button Enter component level
The following dialog box, in which the component level is shown, will open.
▪ Button Maximum component level
Confirms that the waffle pack tray in the selected level is full.
The component level displayed in the table is updated.
Field Complete cassette:
▪ Button Out of operation
All waffle pack trays in the selected cassette are put out of operation, which means that components
can not be picked up from them. A message is displayed, and the component level for this level is
displayed in red in the table.
▪ Button Maximum component level
Confirms that the waffle pack trays in all levels of the selected cassette are full.
The component level displayed in the table is updated.
MTC2 - Ind ividual Functions
13.2.9 MTC2 - Individual Functions
The button Mechanical functions... in the view Matrix-tray changer (see Sec"13.2.8.3
"Matrix-tray changer" view (Example: location 2)" [ ➙ 461]) can be used to call up the individual MTC2
functions.

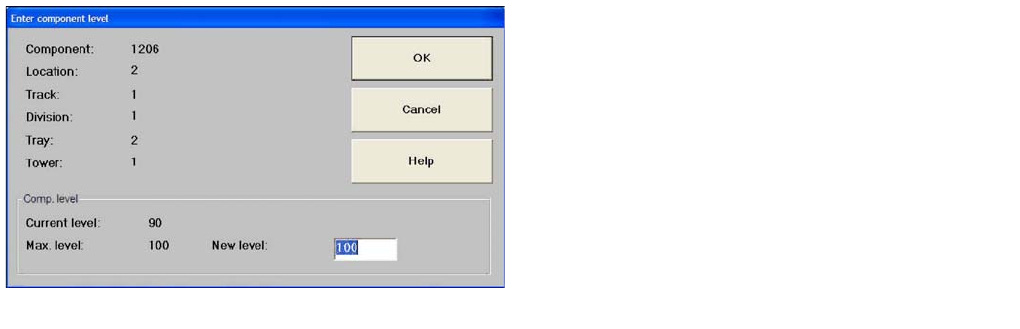

Dialog box
▪ entry field New level
► Enter the value for the actual number of refilled
components.
Confirm your entry with OK
The component level displayed in the table is
updated.
MTC2
Construction and mode of operation MTC2 - Individual Functions
463 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Functions in this view Matrix-tray changer single functions
▪ Button Transport position
This function moves the MTC2 into a defined position for transport.
▪ Field Reference Run:
– Button Entire MTC2
A reference run is carried out with the entire MTC2.
– Button Tower 1
A reference run is carried out with tower 1.
– Button Tower 2
A reference run is carried out with tower 2.
▪ Field Prepare level:
– entry field Level:
Entry field for the level containing the waffle pack tray to be made available.
– Button Tower 1
The waffle pack tray of the level entered is moved out of tower 1.
– Button Tower 2
The waffle pack tray of the level entered is moved out of tower 2.
Settings box

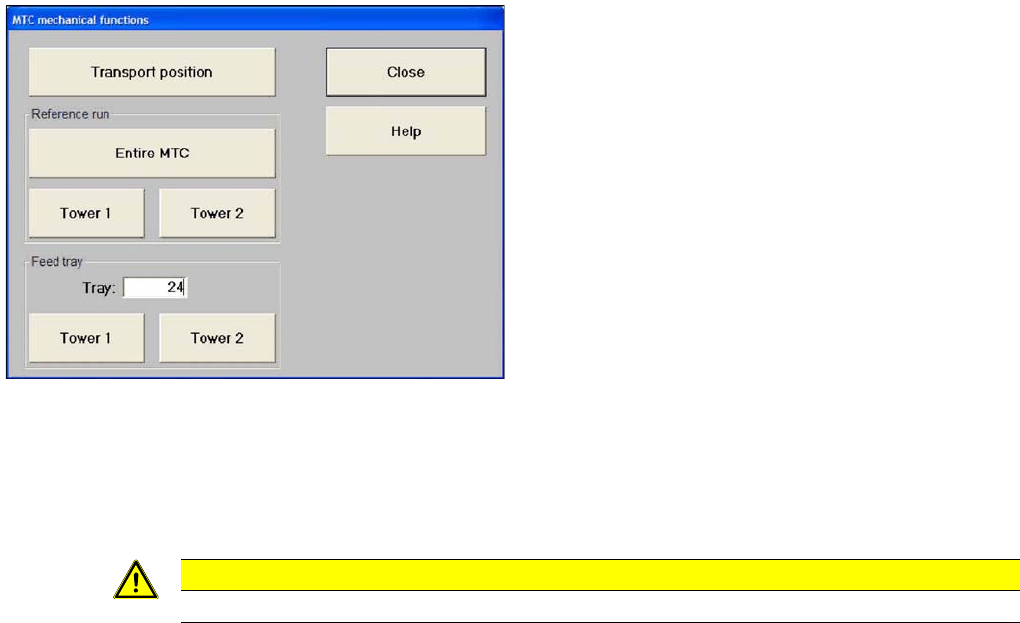

"Matrix Tray Changer individual functions view
CAUTION
Make sure that the MTC2 is not in the refill position when this function is executed.
