Error messages issued via the station Masterdrives

Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 504

Error messages issued via the station

13.4.6 Error messages issued via the station

Alarms and faults on the master drive

▪ A140, A141: Axis blocked, does not move easily, check and remove any obstruction.

▪ FF01: Time overrun

▪ FF04: A fault has occurred during the RAM test.

▪ FF05: A fault has occurred during the EPROM test.

▪ FF13: A version conflict has occurred between the firmware and the hardware.

▪ F002: The monitoring time has expired. The DC intermediate circuit voltage has not reached the

setpoint (3s) (can be ignored).

▪ F006: Intermediate circuit voltage too high. If this fault occurs during the startup phase: Press the

SIPLACE start button.

During operation: Contact the SIPLACE service team.

▪ F008: The lower limit value (76%) was undershot (can be ignored).

Press the SIPLACE start button.

▪ F011: Short circuit

▪ F015: Axis blocked, does not move easily during reference run

▪ F020: Motor temperature monitoring triggered.

▪ F021: Motor blocked, does not move easily. (I2t monitoring for the motor)

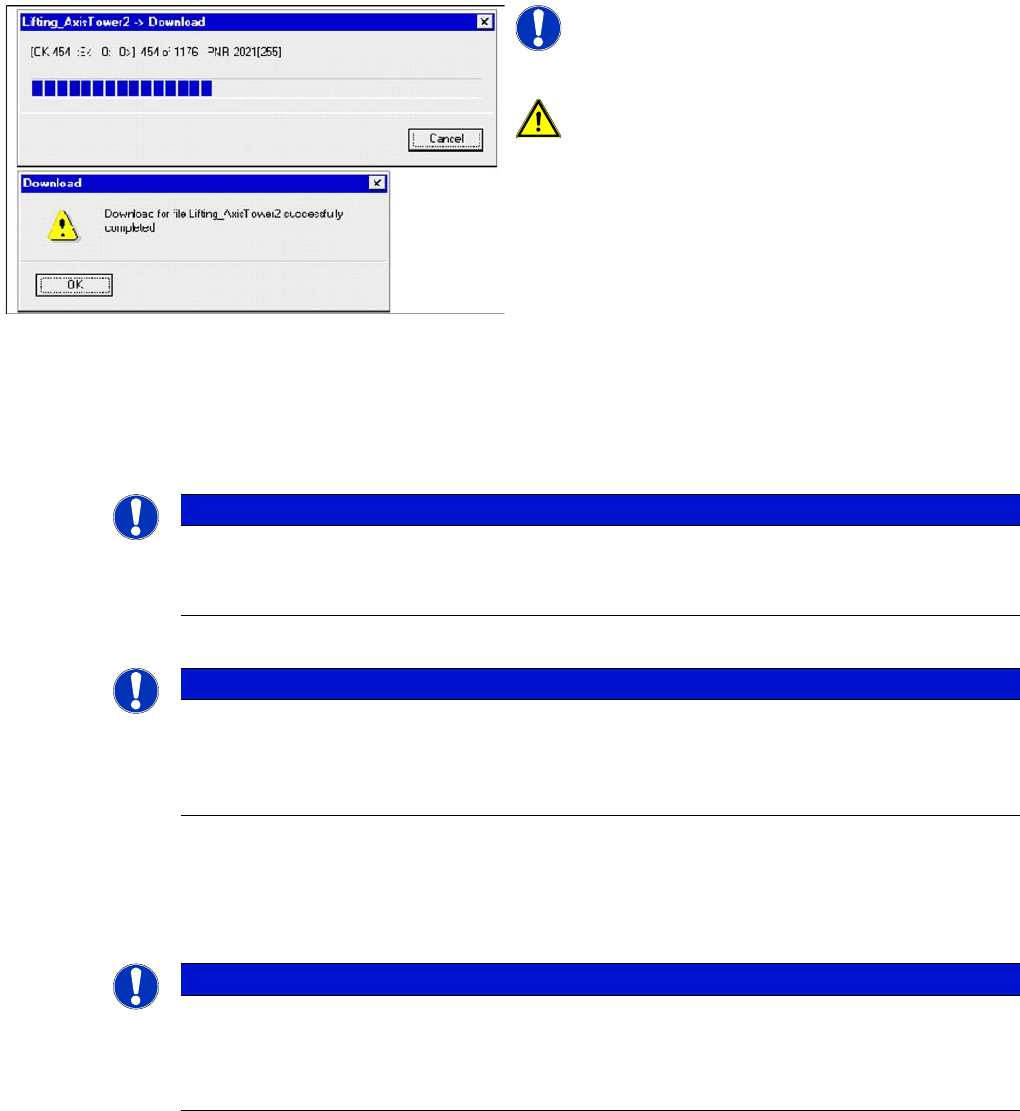

Downloading Parameter Sets

NOTICE! !

Select Save on EEPROM

CAUTION! If errors are counted in field E:(Error)

when you first start the download, abort the download

immediately and try it again.

NOTICE

Art und Quelle der Gefahr

Alarm messages will begin with „Axxx“. An alarm cannot be acknowledged.

It is automatically deleted once the cause has been eliminated.

NOTICE

Art und Quelle der Gefahr

Fatal errors will begin with „FFxx“. Fatal errors are serious hardware or software errors which

no longer permit normal operation of the Master drives. They only appear on the PMU in the

form "FF<No>". The software is re-booted by actuating any key on the PMU.

NOTICE

Art und Quelle der Gefahr

Fault messages will begin „Fxxx“. If a fault message is not reset before the electronic supply

voltage is switched off, then the fault message will be present again when the electronic supply

is switched on again.

MTC2

Masterdrives Error messages issued via the station

505 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)

▪ F023: Overtemperature master drives:

Ventilation locked, wire break at sensor.

▪ F035: Axis in the limit switch

▪ F041: A fault has occurred during the storage of values in the EEPROM.

▪ F051: Fault at resolver or cable disconnected.

▪ F082: Telegram fault - no new process data received. Replace the assembly.

▪ F085: A fault has occurred during initialization of the controller assembly in the master drives.
