Overview
Overview of Placement Head Component Heights SIPLACE X Series
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 50
Overview of P lacement Head Componen t Heights
3.1.4 Overview of Placement Head Component Heights
Locations
Number of changeover tables 4
Number of slots for 8 mm X feeder per
table
40
Number of slots for 8 mm X feeder per
table, location 2/4 for X4I
34
Feeder types X feeder 8-88 mm
LDU (Linear Dipping Unit)
Label presenter
Adapter X feeders
Reject module
MTC2 location 2/4
Conveyor systems Single conveyor
Dual conveyor
Quad lane conveyor
PCB changeover time <2.5s
PCB weight 3 kg
Minimum distance to PCB 3.0 mm
PCB thickness 0.3–4.5mm
Conveyor speed 50-450 mm/s
Fixed conveyor sides Right, left, outer
Conveyor widths
Single conveyor Standard 460 mm, max. 533 mm
Dual conveyor Standard 216 mm, max. 250 mm
Flexible dual conveyor as single conveyor Standard 380 mm, max. 450 mm
Quad lane conveyor 114 mm
PCB lengths Standard 450 mm (X4I max. 380 mm)
"Long Board" option max. 610 mm
Machine connection values
Electrical Connections 3 x 200 V~ ± 5 %; 50/60 Hz (Japan)
3 x 208 V~ ± 5 %; 50/60 Hz (U.S.A)
3 x 400 V~ ± 5 %; 50/60 Hz (Europe)
Pneumatic connection values min. 0.5 MPa = 5.0 bar
max.1.0 MPa = 10 bar
NOTICE
These values are only an excerpt from the specifications! The full specifications can be found
in the operating manual or in the specification documentation for the X series machines!
Specification details Value
Placement heads Maximum component height
CPP_L 8.5 mm (11.5 mm on request)
CPP_H 6.0 mm
C&P20A 4.0 mm
Twin Head 25.0 mm
Overview
Overview of Components Power supply
51 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Overview of Com ponents
3.2 Overview of Components

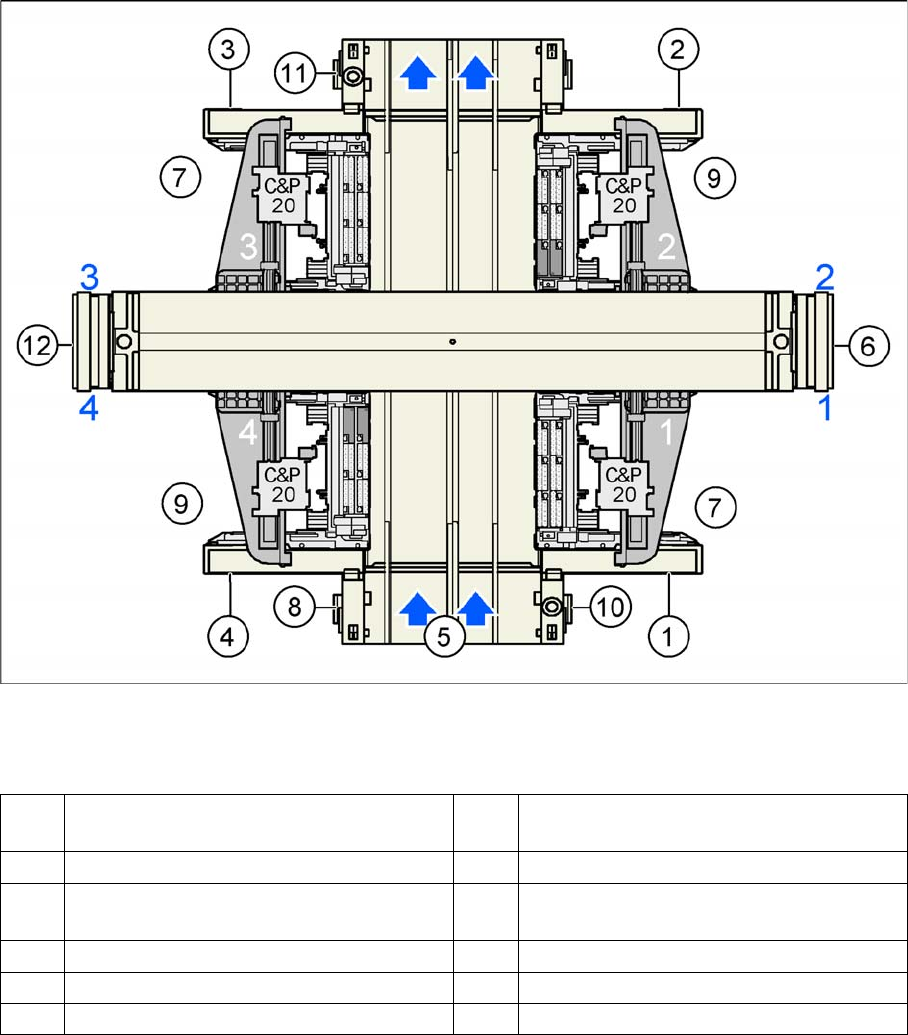

SIPLACE X4I - top view
Legend
Power supply
3.2.1 Power supply
The main power supply unit is mounted on a compact rack unit and is located on the left in the middle
section of the machine. From outside, you can only see the red main switch.
A lockable door prevents access to the power supply.
1 Sector 1 7 Location for component table 40 tracks,
each with 8 mm X feeder
2 Sector 2 (main distributor) 8 Computer unit
3 Sector 3 9 Location for component table 34 tracks,
each with 8 mm X feeder
4 Sector 4 (subdistributor) 10 Axis unit placement area 1 (PA1)
5 Transport direction 11 Axis unit placement area 2 (PA2)
6 Pneumatic unit & conveyor control 12 Power supply unit
Overview
Pneumatic Unit Overview of Components
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 52
Overview of V oltages in the Power Supply Unit
3.2.1.1 Overview of Voltages in the Power Supply Unit
Pneumatic Unit
3.2.2 Pneumatic Unit

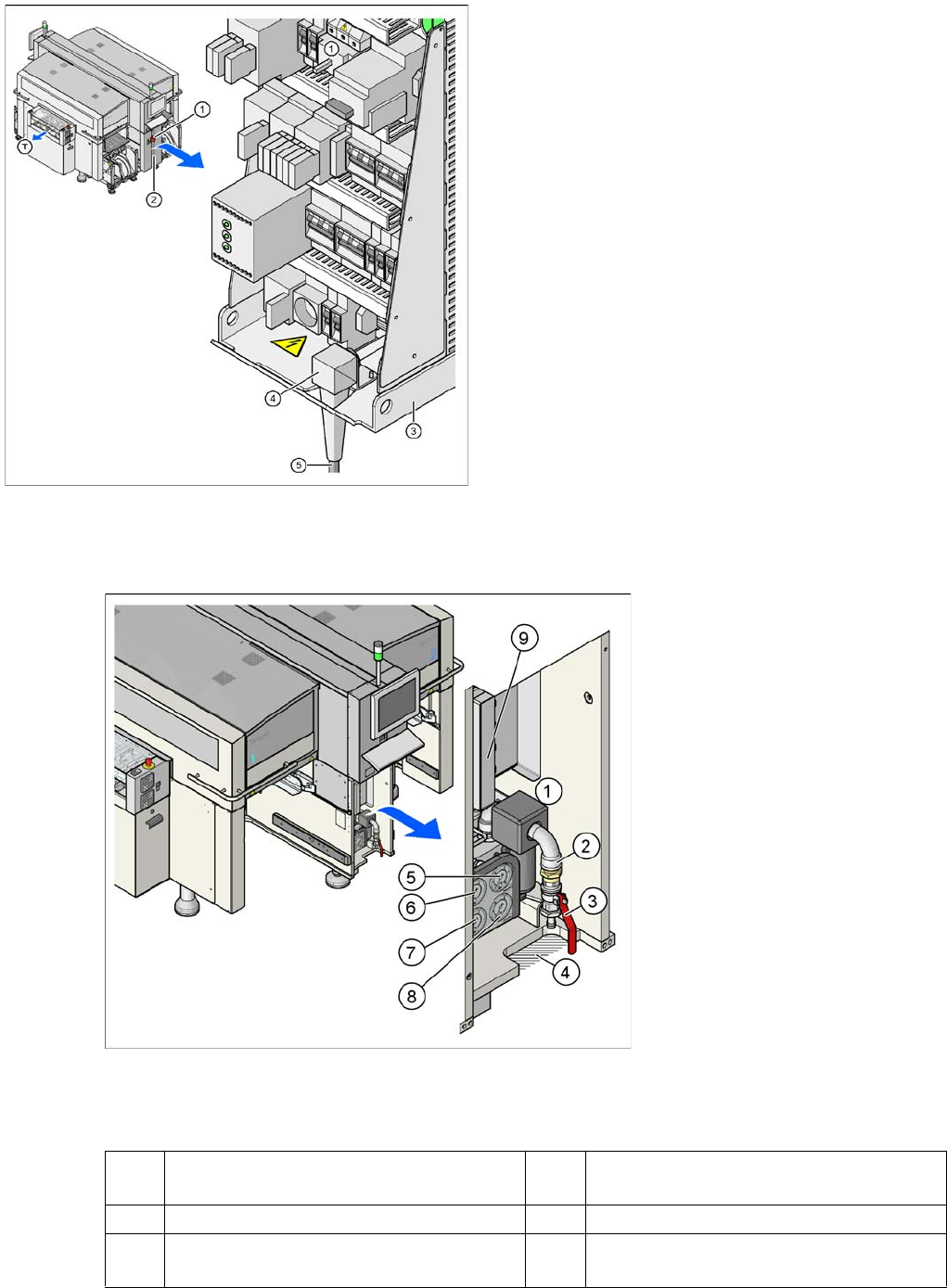

Pneumatic unit as rack unit
Legend
Power supply
Legend
1. Main switch
2. Cover on the power supply unit
3. Power supply unit
4. Bracket for the cable fixture
5. Mains connection cable
T = PCB transport direction
1 Pneumatic Unit 6 Manometer for bulkcase or nozzle changer
DLM
2 Compressed air hose coupling 7 Manometer for gantries
3 Shutoff valve 8 Manometer for machine components
(docking unit, conveyor, cutter, NC C&P20)
