Overview SIPLACE Vision Overview of Components Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 64 Technical Data Option: Digital camera (typ e 29.sst) fo r 0201 placement. Component C amera SST29 Component Camera SST29…
Overview
Overview of Components SIPLACE Vision
63 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Component Camera C&P20A
3.2.8.2 Component Camera C&P20A
Component Camera SST23
Component Camera SST23
Technical Data
Component Camera CPP
3.2.8.3 Component Camera CPP
Component Camera SST28
Component Camera SST28

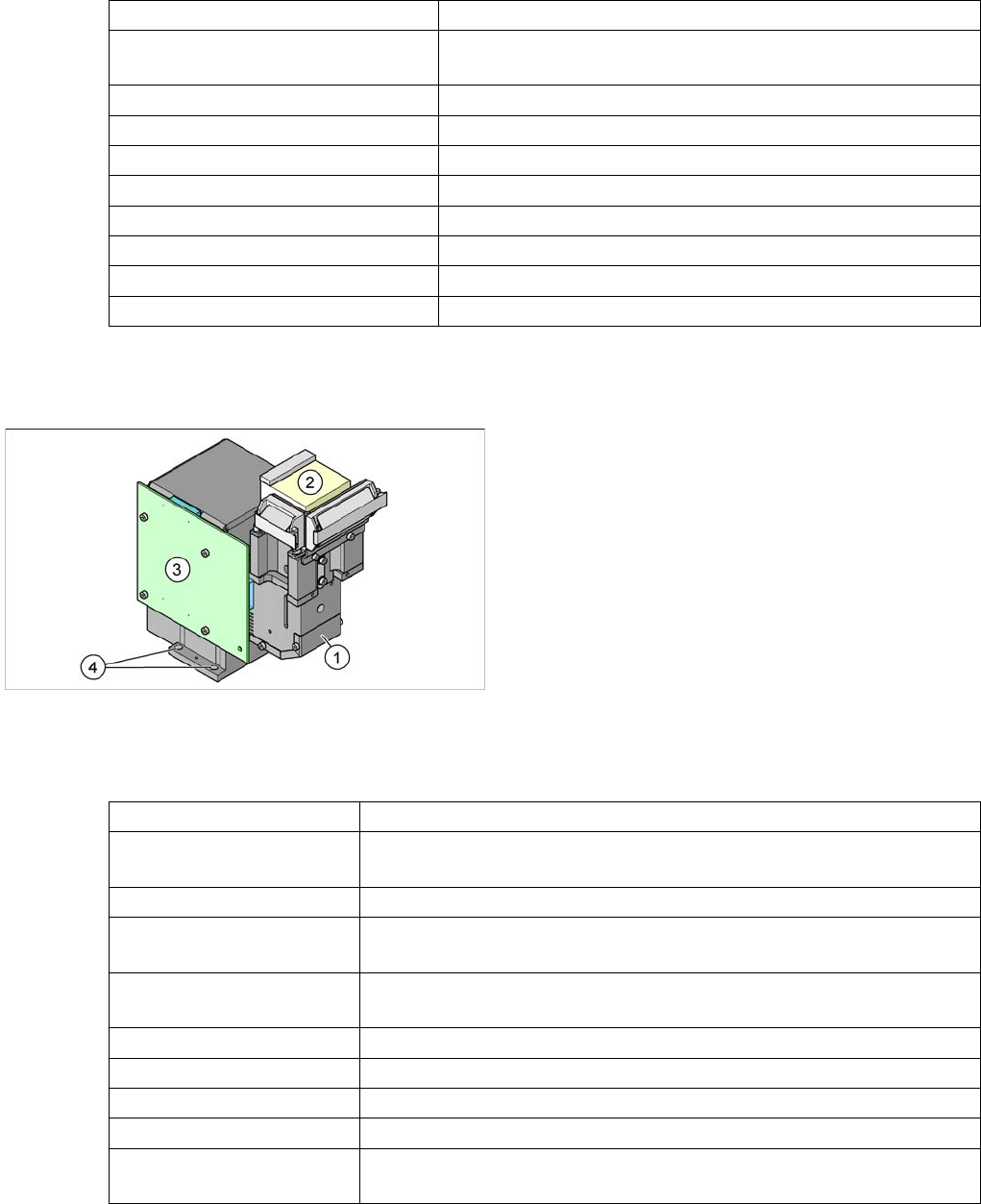

Component camera
Legend
1. Component camera lens system and illumination
2. Camera amplifier
3. Illumination controller
Component size 0.2 mm x 0.2 mm up to 6 mm x 6 mm
Components 01005 to 2220 (Flip CHIP, Bare Dies)
Minimum lead pitch 0.5 mm
Min. ball pitch 0.45 mm
Min. ball diameter 0.25 mm
Field of vision 8mm x 8mm
Type of illumination Front-lighting (5 levels, programmable as required)
Resolution 14.1 µm/pixels
Camera type.sst 23.sst
Application C&P20A (standard)
Component camera
Legend
1. Component camera lens system and illumination
2. Camera amplifier
3. Illumination controller
Overview
SIPLACE Vision Overview of Components
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 64
Technical Data
Option: Digital camera (type 29.sst) for 0201 placement.
Component Camera SST29
Component Camera SST29
Technical data
Component size 0.5mm x 0.5 mm up to 18.7 mm x 18.7 mm
Component shape 0402 to PLCC44 incl. BGA, µBGA, flip-chip, TSOP, QFP,
PLCC, SO to SO32, DRAM
Minimum lead pitch 0.5 mm
Minimum ball pitch 0.45 mm
Minimum ball diameter 0.25 mm
Field of vision 24.5 mm x 24.5 mm
Type of illumination Front-lighting (4 levels, programable as required)
Resolution 50µm/Pixel
Camera type.sst 28.sst
Application C&P12 (standard), CPP (option)
Component camera
Legend
1. Component camera optics and illumination
2. Camera amplifier
3. Illumination controller
4. Holes for fastening screws (4x)
Component size 0.3 mm x 0.3 mm to 27 mm x 27 mm
Components 0201 to 27 mm x 27 mm
PLCC, SO, QFP, TSDP, SOT, MELF, CHIP, ...
Minimum lead pitch 0.3 mm
Min. ball pitch 0.25 mm for CO < 18 x 18 mm
0.35 mm for CO >= 18 x 18 mm
Min. ball diameter 0.14 mm for CO < 18 x 18 mm
0.2 mm for CO >= 18 x 18 mm
Field of vision 32 mm x 32 mm
Illumination type Front illumination (4 levels individually programmable)
Resolution 26 µm/pixels
Camera type.sst 29.sst
Used with the following
heads
CPP (as default)
C&P6 (as default)
Overview
Overview of Components SIPLACE Vision
65 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
Note for SST29
Note for SST29
Component Camera SST38
Component Camera SST38
Technical Data
Stationary Component Cameras
3.2.8.4 Stationary Component Cameras
NOTICE
The component camera SST29 is the standard camera for the CPP head. The other cameras
can be ordered as an option.
Component camera
Legend
1. Component camera lens system and illumination
2. Camera amplifier
3. Illumination controller
Component size 0.4x0.2 mm (01005) to 16x16 mm
Components 01005 to 16 mm x 16 mm
PLCC, SO, QFP, TSDP, SOT, MELF, CHIP, IC BGA
Min. ball pitch 250 µm
Min. ball diameter 140 µm
Field of vision 20 mm x 20 mm
Type of illumination Front-lighting (4 levels, programable as required)
Resolution 17 µm/pixels
Camera type.sst 38.sst
Application CPP (option)
NOTICE
The stationary cameras (IC, FC camera) version ≧ 04 from machine no. B160 also have a
Vision illumination control board for controlling the illumination levels.
