Overview
CPP Head Overview of Components
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 72
Overview of Func tions
3.2.10.2 Overview of Functions
Star station 1:
▪ Component pickup, placement or rejection
▪ Component sensor: This checks whether the component is present after pickup and before
placement.
▪ Component sensor: This checks whether there is no component present before pickup and after
placement.
▪ Vacuum/air blast measurement for pickup/placement circuit
Star station 7:
▪ Optical measurement of components
▪ Vacuum measurement for holding circuit: By rotating the star axis, the vacuum value can be
measured at each segment.
Star station 2 - 6
▪ In these star stations, the component at the segment can be rotated into the programmed placement
position.
Star station 8 -12
▪ In star stations 8 - 12, angular correction is performed after optical measurement.
Star stations 2 - 6 and 8 - 12
▪ Rotation to the correct pickup angle can be performed at any of the star stations, except 1 and 7.
Description
3.2.10.3 Description
The CPP head can be operated in various placement modes. The standard mode for the CPP head is
Collect&Place. This is possible up to a component size of 27 mm x 27 mm. The two additional placement
modes, mixed mode for medium/sized components (up to 32 mm x 32 mm) and Pick&Place mode for
large components (up to 50 mm x 40 mm) have significantly increased the component spectrum.
Legend
▪ A : Vacuum measurement hold circuit
▪ B : Vacuum measurement of pick and place circuit
▪ 1-12: star stations 1 to 12
Overview
Overview of Components CPP Head
73 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)
A maximum of twelve components can be picked up from the feeders (X feeders). This value also
depends on the component spectrum.
The component sensor checks the pickup/place positions, to see whether a component has been taken
by the nozzle or placed on a board. On the way to the placement position, the components are rotated
into the correct placement position and optically centered. This is performed with the digital component
camera on the head or, for medium/sized and large components, via a stationary camera. Before
placement is performed, the angle and X/Y position correction, determined by the Vision system, is
applied. The X/Y position correction is calculated into the placement position, while the angle correction
is applied separately to each segment. This is possible as each segment can be rotated independently
of the star position. The components are then carefully and accurately placed down on the board, with
an air blast.
Features:
▪ Each segment has its own DP drive for rotating of the components into the correct position. The
segments are therefore no longer rotated into the correct angle in one single star position but can
now be rotated separately from one another.
▪ Each segment has its own vacuum generator.
▪ The so/called valve terminal is used to switch the supply pressure on and off for each segment. This
reduces the compressed air consumption by up to 40-50%.
▪ In addition, each DP drive has a light barrier Z down. There is no moving cable during the upwards
and downwards movement of the Z axis.
▪ The Z drive for the segments is realized via a linear motor with linear position measuring system.
The secondary part is now integrated into the Y axis, meaning that there is no moving cable during
the upwards and downwards movement of the Z axis.
Nozzle Changer (NC)
3.2.10.4 Nozzle Changer (NC)

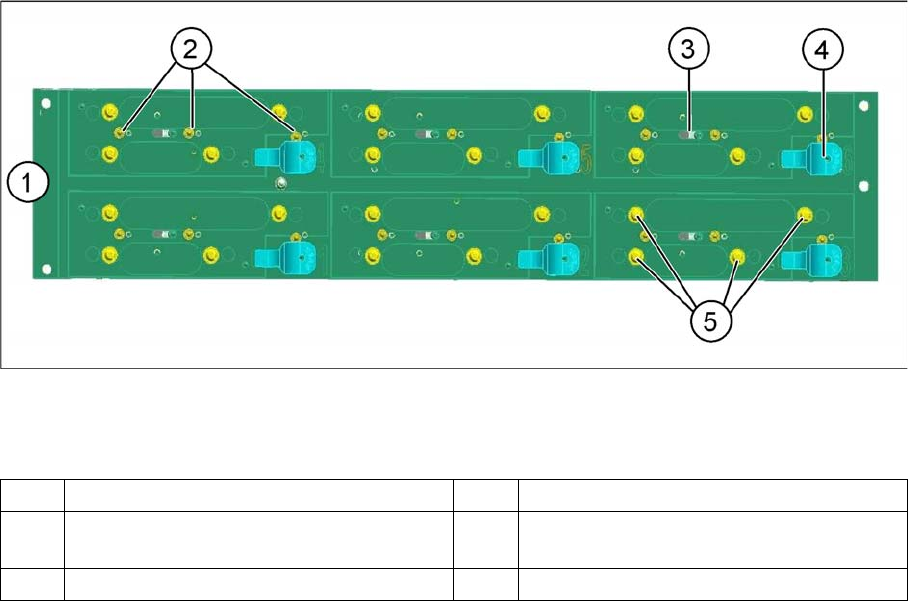

Nozzle changer for X machine
Legend
▪ In X series machines, a maximum of twelve nozzle changers are possible for each location,
depending on the machine configuration.
▪ The nozzle changer for the X machines has been extended to include the following functions:
– Magazine ID
(1) Nozzle changer carrier (2) Microswitch 1, 2 and 3 for magazine query
(3) Actuator for opening and closing the NC
magazine
(4) Unlocking lever for NC magazine
(5) Fixture clips for NC magazines
Overview
CPP Head Overview of Components
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 74
– Height query
▪ The nozzle changer carrier can accommodate the various magazine types for the C&P20A and CPP
heads.
▪ The machine recognizes the configured magazines via the magazine query (microswitch).
If the wrong magazines are configured for the head, a warning will be issued to prevent a head crash.
– 10xx magazine: Switch 2 (center) pressed
– 20xx magazine: Switches 1 and 3 pressed
– 28xx magazine: Switches 1, 2 and 3 pressed
Nozzle Magazines
3.2.10.5 Nozzle Magazines
Structure of 20xx Nozzle Magazines
Structure of 20xx Nozzle Magazines
Structure of 28xx Nozzle Magazines
Structure of 28xx Nozzle Magazines
Legend
1. 20xx magazine (CPP)
2. 28xx magazine (CPP)
3. 10xx magazine (C&P20A)
4. Magazine query switch 1, 2 and 3
▪ 12 garages per magazine
▪ Antirotation guard for nozzles
▪ Special nozzles up to a max. length of 16.5 mm
▪ Two fiducials per magazine
Legend
1. Five garages for nozzles with a length of up to
12.5 mm (garages 1, 5, 6, 8, 9)
2. Four garages for special nozzles with a length of up
to 16.5 mm (garages 2, 3, 4, 7)
3. Level surface – this is used by special nozzles for
orientation purposes, when they are nonsymmetrical.
The standard 28xx nozzles are symmetrical.
▪ Antirotation guard for nozzles
▪ Two fiducials per magazine
