Communication and Control
CAN Bus Processor Board C&P Head CAN Bus
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 98

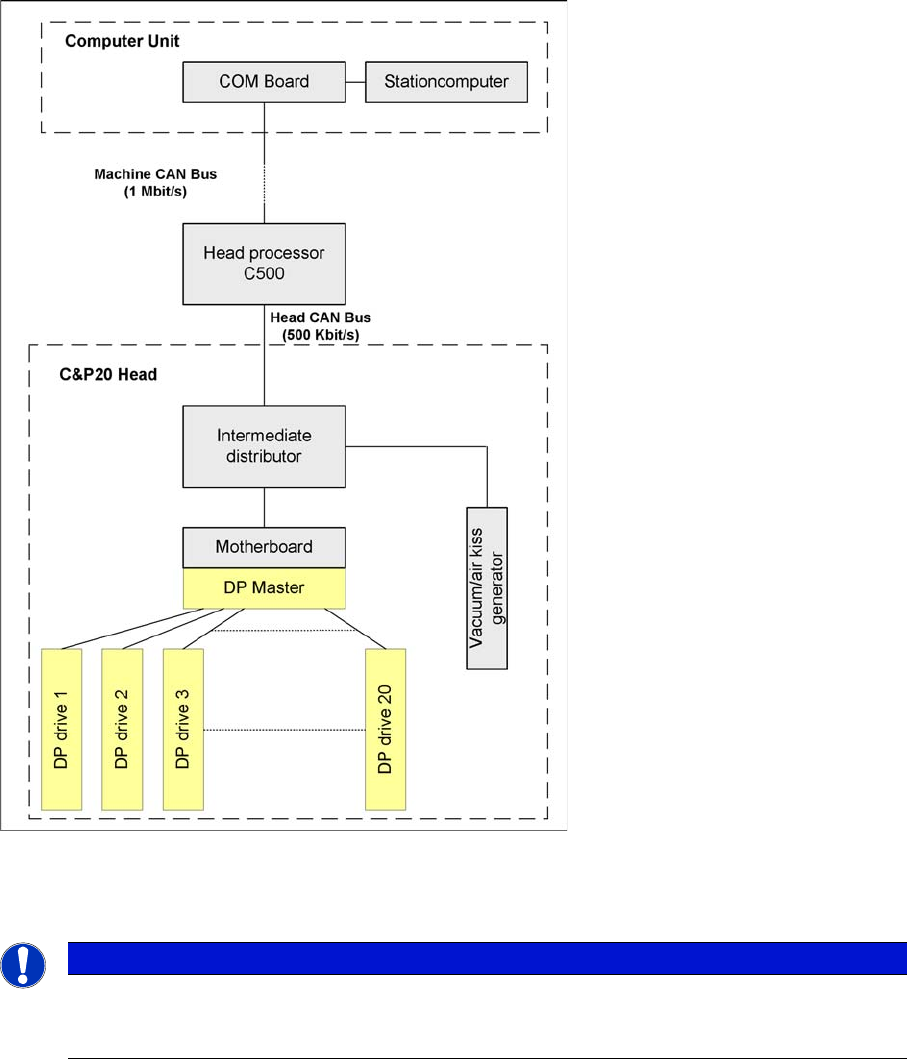

CAN Bus-Controlled Functions on the C&P20A Head
4.3.4.1 CAN Bus-Controlled Functions on the C&P20A Head
Communication TQM module
The following overview shows various head functions, controlled by the CAN system. Thus, the CAN bus
controls the actuators and sensors of the C&P or CPP head.
NOTICE
The status of the 16 bit processor board is indicated on the 7-segment display.
Normal status on the display is: The dot "." in the display is flashing. (for description see Section
C&P or CPP head).
Communication and Control
CAN Bus CAN Bus Processor Board C&P Head
99 Student Guide SIPLACE X-Serie and X4I SW70x (AL2)

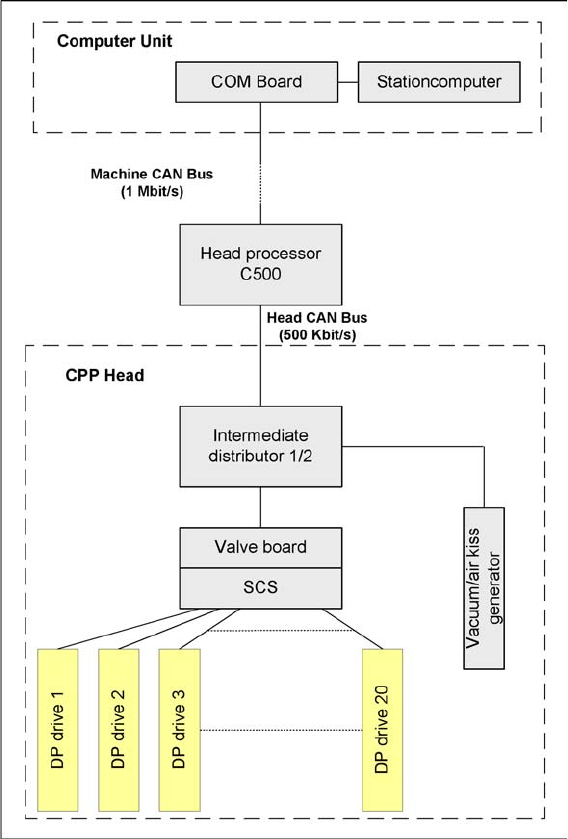

CAN Bus-Controlled Functions on the CPP Head
4.3.4.2 CAN Bus-Controlled Functions on the CPP Head
Communication TQM module
Communication and Control
CAN Bus Communication with Axis Controller CAN Bus
Student Guide SIPLACE X-Serie and X4I SW70x (AL2) 100

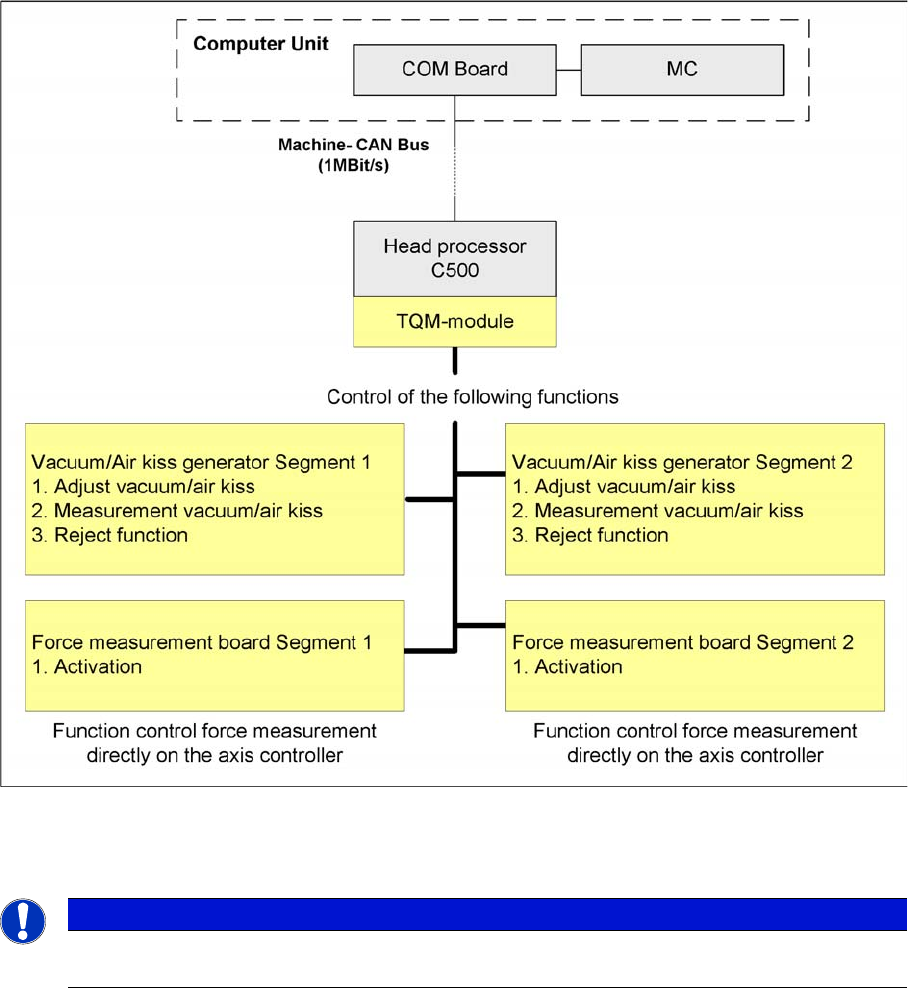

CAN Bus- Control led Func tions on the Twin Head
4.3.4.3 CAN Bus-Controlled Functions on the Twin Head
Function on the Can Bus Processor Twin head
The CAN bus processor board is no longer installed on each Twin segment, as in the case of the HF
machines. It can now be found at a central location on the head processor board C500.
CAN Bus Communication with Axis Controller
4.3.5 CAN Bus Communication with Axis Controller
The communication between the axis controller modules is now achieved using the CAN Bus. All the
information exchanged between these modules is transmitted via the CAN bus (e.g. axis parameter,
target position, end position signal, ...).
NOTICE
The status of the 16 bit processor board is indicated on the 7-segment display.
Normal status on the display is: "." flashes. (for description see Section C&P Head).
