Edition 1.0
IP S Adjustment for V arious Head Types on the Module
< H12HSQ head>
FK-9F50-74-0E
5-3
FUJI CORPORATION

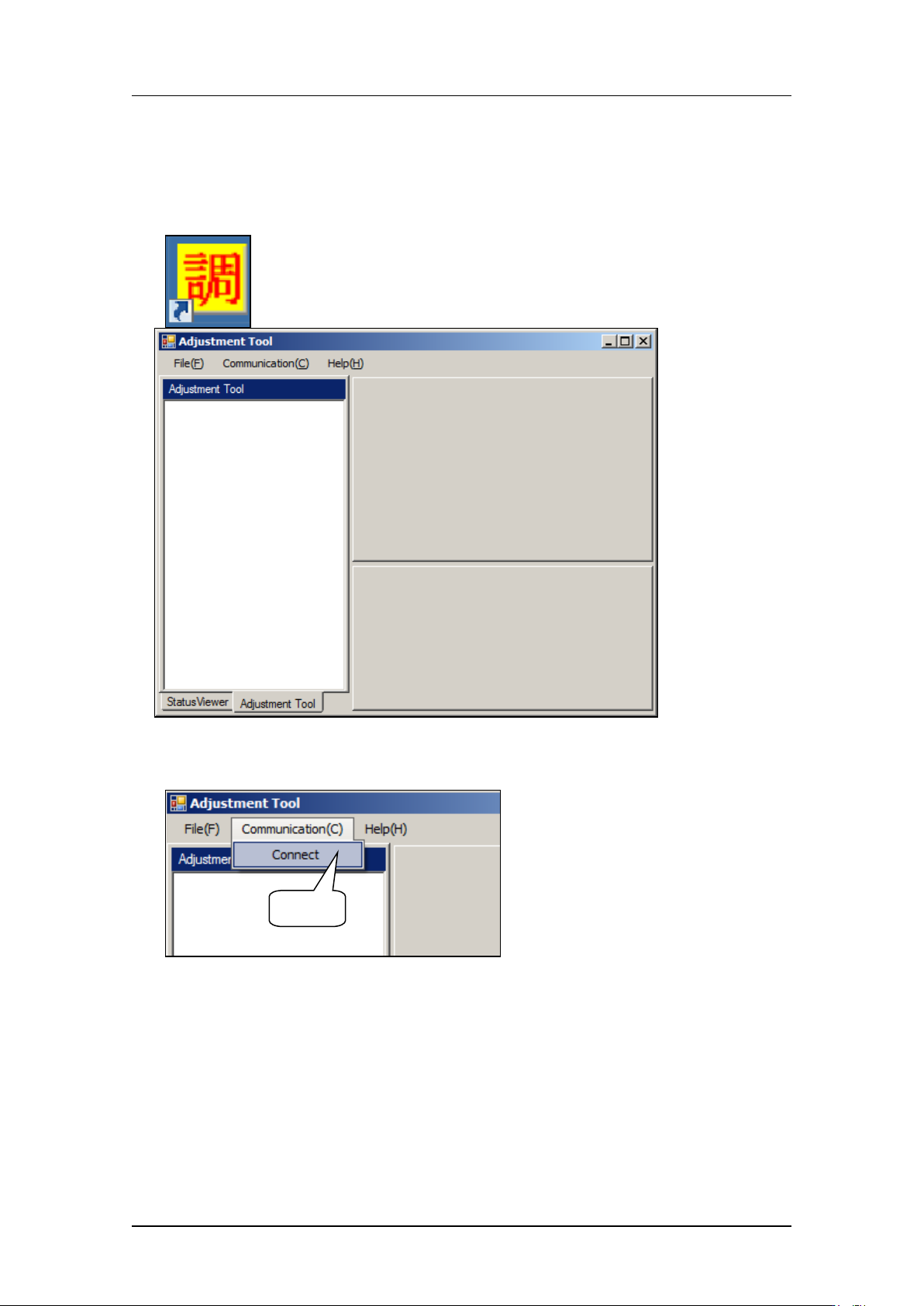

The following steps ex plain how t o c heck the servo counter us ing Motion Adjustment Tool.
8. After the machine wakes up, press [Start] button and then press [Cycle stop] button
immediately.
9. Start up Moti on Adjustment Tool.
10. Select [Comm unication] – [Connect].
Select
CONFIDENTIAL
Edition 1.0
IP S Adjustment for V arious Head Types on the Module
< H12HSQ head>
FK-9F50-74-0E
5-4
FUJI CORPORATION

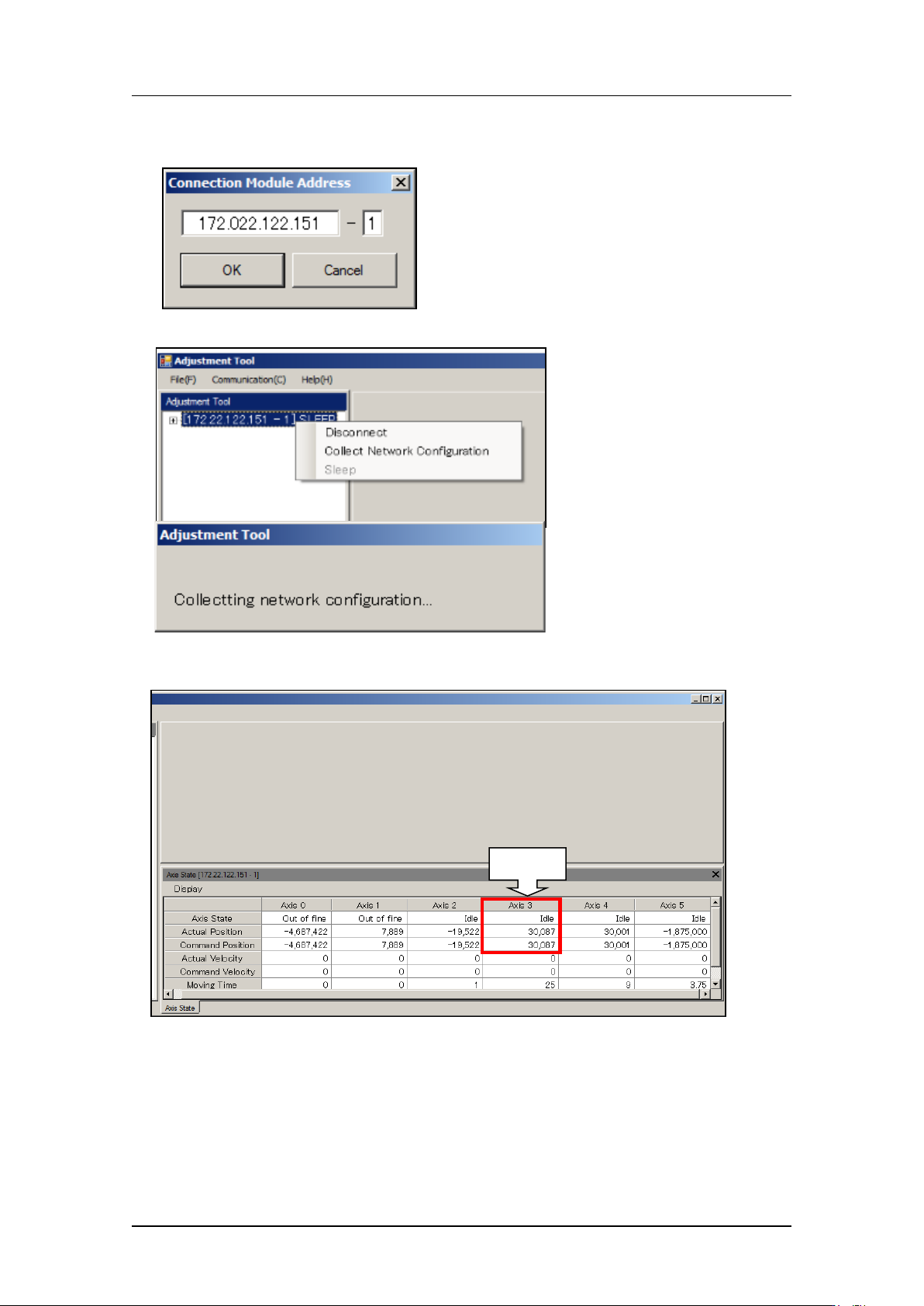

11. Enter the IP address of the target base and the module number, and then select
[Connect].
12. Right-click on the IP address and then se lect [ Collect Network Con fig ur at i on].
13. Record the Axis 3 ( R-axis servo c ount er ) value. (Ref er ence value: 0 to 60,000 pulses)
R-axis
CONFIDENTIAL
Edition 1.0
IP S Adjustment for V arious Head Types on the Module
< H12HSQ head>
FK-9F50-74-0E
5-5
FUJI CORPORATION
Component names and explanation of the adjustment modes
Mode name: displays t he cur r ent ly selected adjustment mode.
Back butt on: used t o switch t o a different mode from t he cur r ent ly selec ted mode.
Set button: us ed when saving or when selecting mo des.
There are six a djustment modes a s show n below. The adjustments differ for e ach mode.
Mode name
Contents
AUTO MODE
The initial screen displayed when the power is supplied
to the head.
ADJ MODE
This mode is used to access the 3 adjustment modes
below.
ADJUSTMENT 1
Used for res ol ut ion and tilt adjustment.
ADJUSTMENT 2
Used for gray scale and cu r r ent value adjustment.
ADJUSTMENT 3
Used to chec k the field of vision.
CONFIGURATION
Used to set the funct ion sett ings.
IPS Type
Hard Type
IPS Board
2
2
FH1406A1F(Old)
6
FH1335C1F(New)
Back butt on
Set button
Mode name
CONFIDENTIAL
