Edition 1.0
IP S Adjustment for V arious Head Types on the Module
< H12HSQ head>
FK-9F50-74-0E
5-6
FUJI CORPORATION
Configuration settings

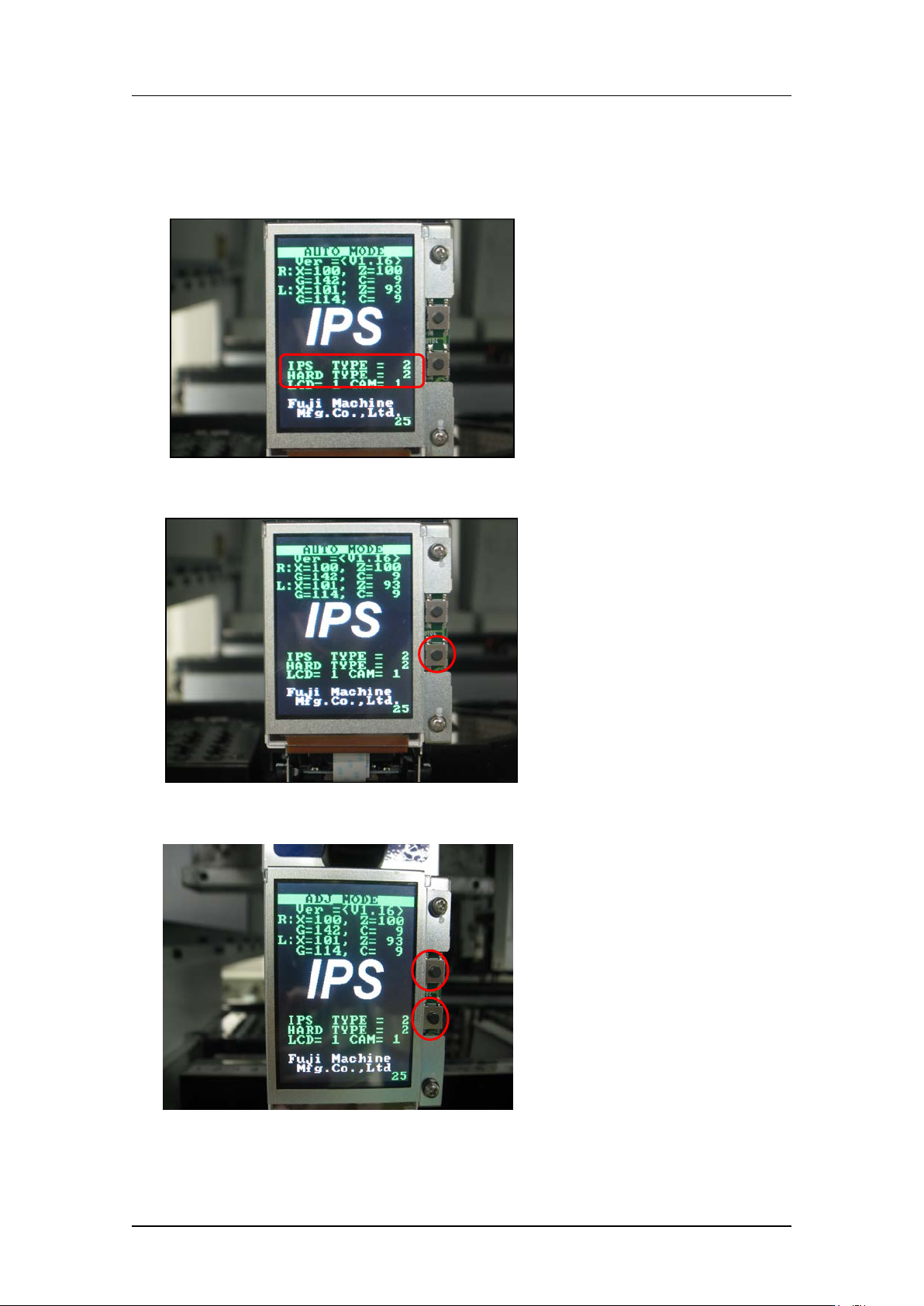

1. Firstly, check that the “IPS TYPE” and “HARD TYPE” ar e set t o 2 on the LCD screen. If
they are not set to 2, ma ke the settings s how n below.
2. Press and ho ld t he lower button to enter “ ADJ MODE”.
3. Press the upper and lower buttons simultaneously to select the “CONFIGURATION”
screen.
CONFIDENTIAL
Edition 1.0
IP S Adjustment for V arious Head Types on the Module
< H12HSQ head>
FK-9F50-74-0E
5-7
FUJI CORPORATION

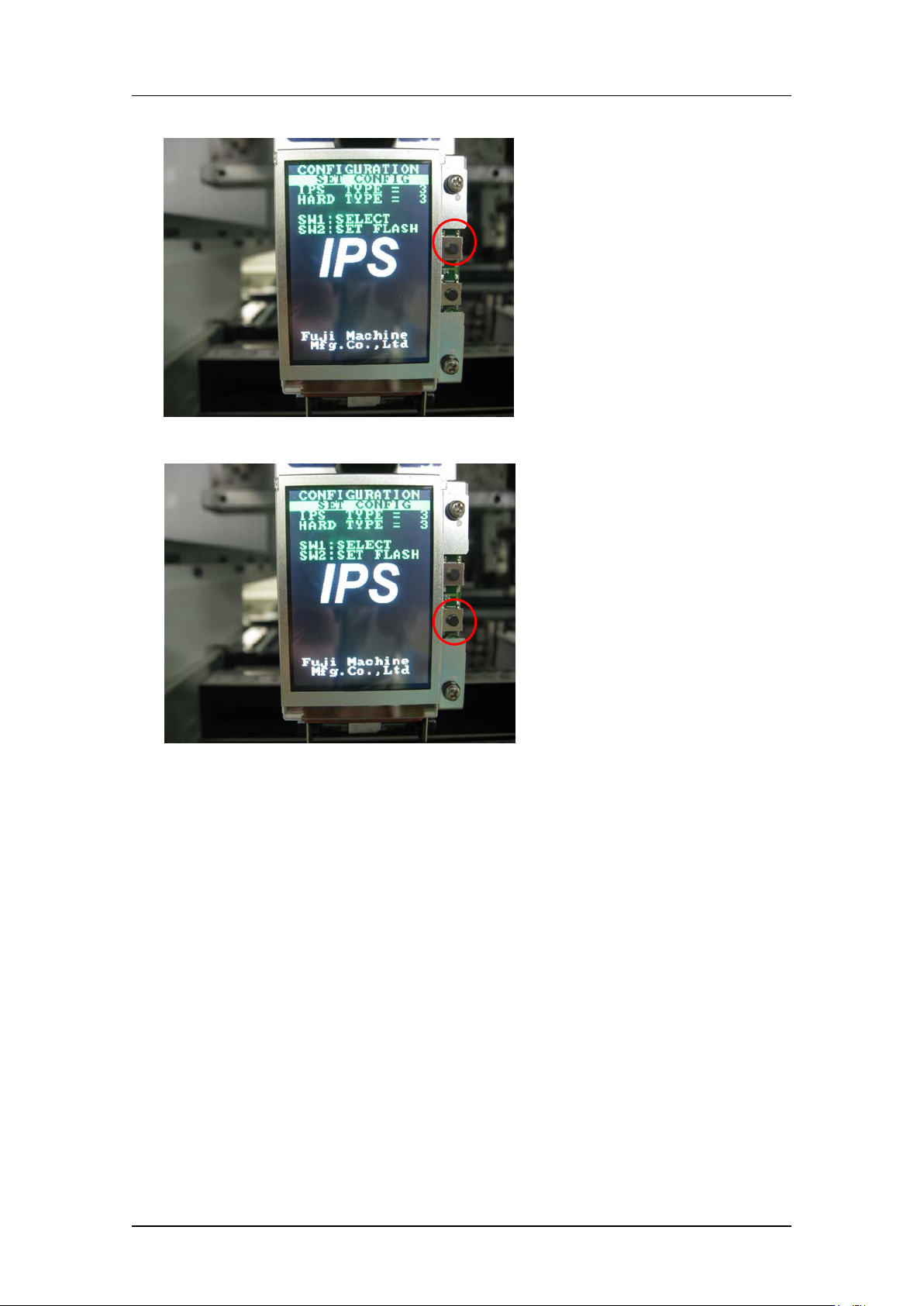

4. Press the upper button t o set “IPS TY PE” and “HARD TYPE” to 2.
5. Press the low er but t on t o comp lete the setting.
6. Rest ar t t he ma chine. The set t ings will be up dat ed after restart.
CONFIDENTIAL
Edition 1.0
IP S Adjustment for V arious Head Types on the Module
< H12HSQ head>
FK-9F50-74-0E
5-8
FUJI CORPORATION
Adjusting t he c a mer a ins tallation posit ion
（
ADJUSTMENT1
）

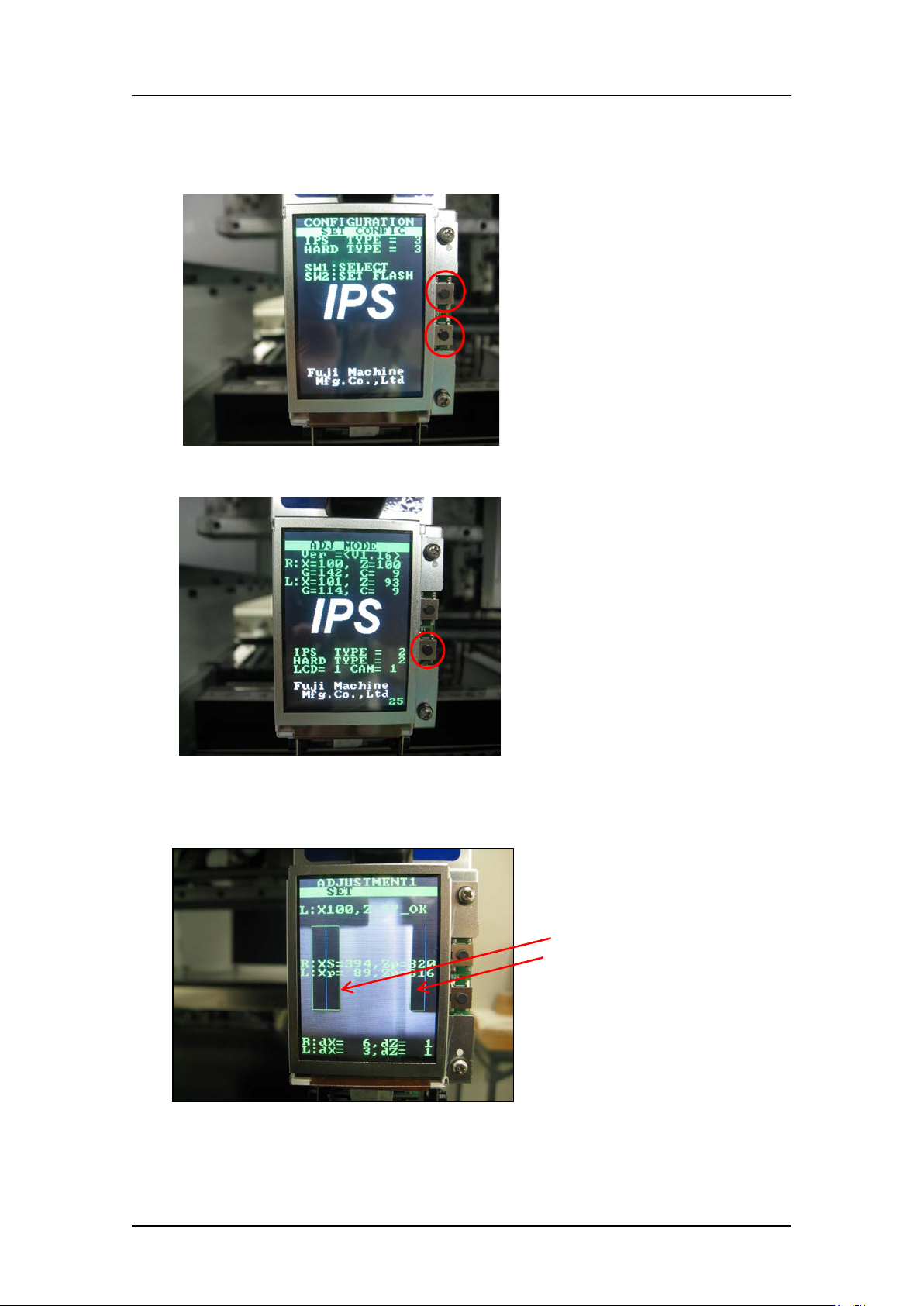

1. Press the upper and lower buttons s i m ultaneously t o retur n t o “ADJ MODE”.
2. Press the low er but t on t o enter “ ADJ USTM E NT 1” mode.
3. Use MotionTool.mini to check that the A holder is at the front of the head (the position
where the B and L holders are aligned).With holder A at this position, adjust the
position of the camera so that the jigs on the B and L holders match up with the green
frames on the s cr een.
The jigs match the
green frames on the
screen.
