Edition 1.0
IPS Adjustment for Various Head Types on the Module
<H08MQ head>
FK-9F50-74-0E
6-4
FUJI CORPORATION
The following steps explain how to check the s er vo counter using Motion Adjustment Tool.
10. After the machine wakes up, press [Start] button and then press [Cycle stop] button
immediately.
11. St ar t up M otion Adjust m ent Tool.
12. Select [Communication] – [Connect].
Select
CONFIDENTIAL
Edition 1.0
IPS Adjustment for Various Head Types on the Module
<H08MQ head>
FK-9F50-74-0E
6-5
FUJI CORPORATION
13. Enter the IP address of the target base and the module number, and then select
[Connect].
14. Right-click on the IP address and then se lect [ Collect Network Con fig ur at i on].
15. Record the Axis 3 ( R-axis serv o count er ) value.
Axis 3 : Reference v alu e 30000
±
3000 pulses
R-axis
CONFIDENTIAL
Edition 1.0
IPS Adjustment for Various Head Types on the Module
<H08MQ head>
FK-9F50-74-0E
6-6
FUJI CORPORATION

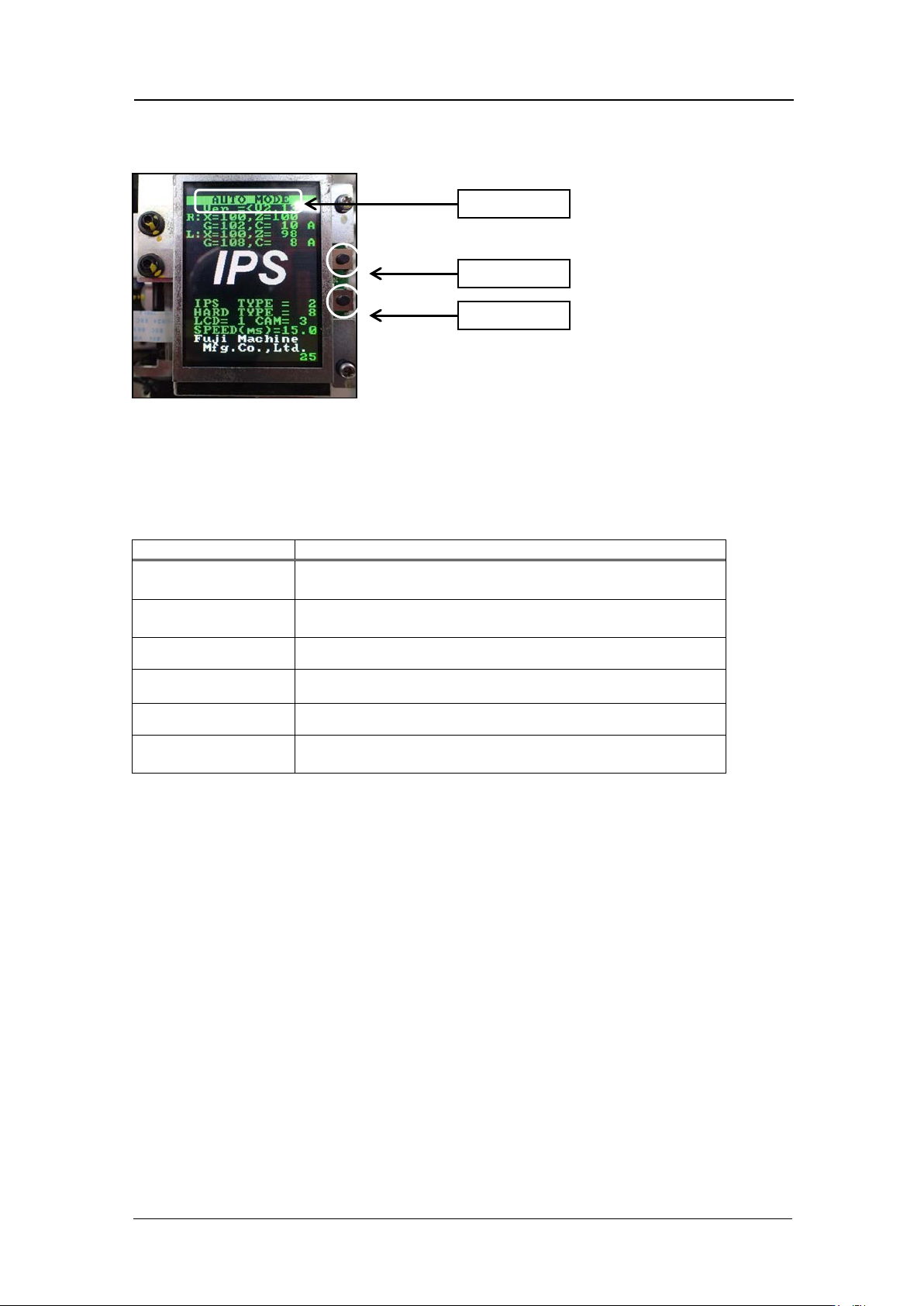

Component nam e s and e x planation of the a djustment modes
Mode name: displays t he cur r ent ly selected adjustment mode.
Back butt on: used t o switch t o a different mode from t he cur r ent ly selected mode.
Set button: us ed when saving or when selecting mo des.
There are six a djustment modes a s show n below. The adjustments differ for e ach mode.
Mode name
Details
AUTO MODE
The initial screen displayed when the power is supplied
to the head.
ADJ MODE
This mode is used to access the 3 adjustment modes
below.
ADJUSTMENT 1
Used for res ol ut ion and tilt adjustment.
ADJUSTMENT 2
Used for gray scale and cu r r ent value adjustment.
ADJUSTMENT 3
Used to chec k the field of vision.
CONFIGURATION
Used to set t he function settings.
Back butt on
Set button
Mode name
