Edition 1 .0 IPS Adjustment for V arious Head T ypes on the Module <H08MQ head > FK - 9F50 - 74 -0 E 6-8 FUJI CORPORA TION 4. Press the upper button to select “ IPS T YPE ” and “ HARD TYPE ” , and then pres s the l…
Edition 1.0
IPS Adjustment for Various Head Types on the Module
<H08MQ head>
FK-9F50-74-0E
6-7
FUJI CORPORATION

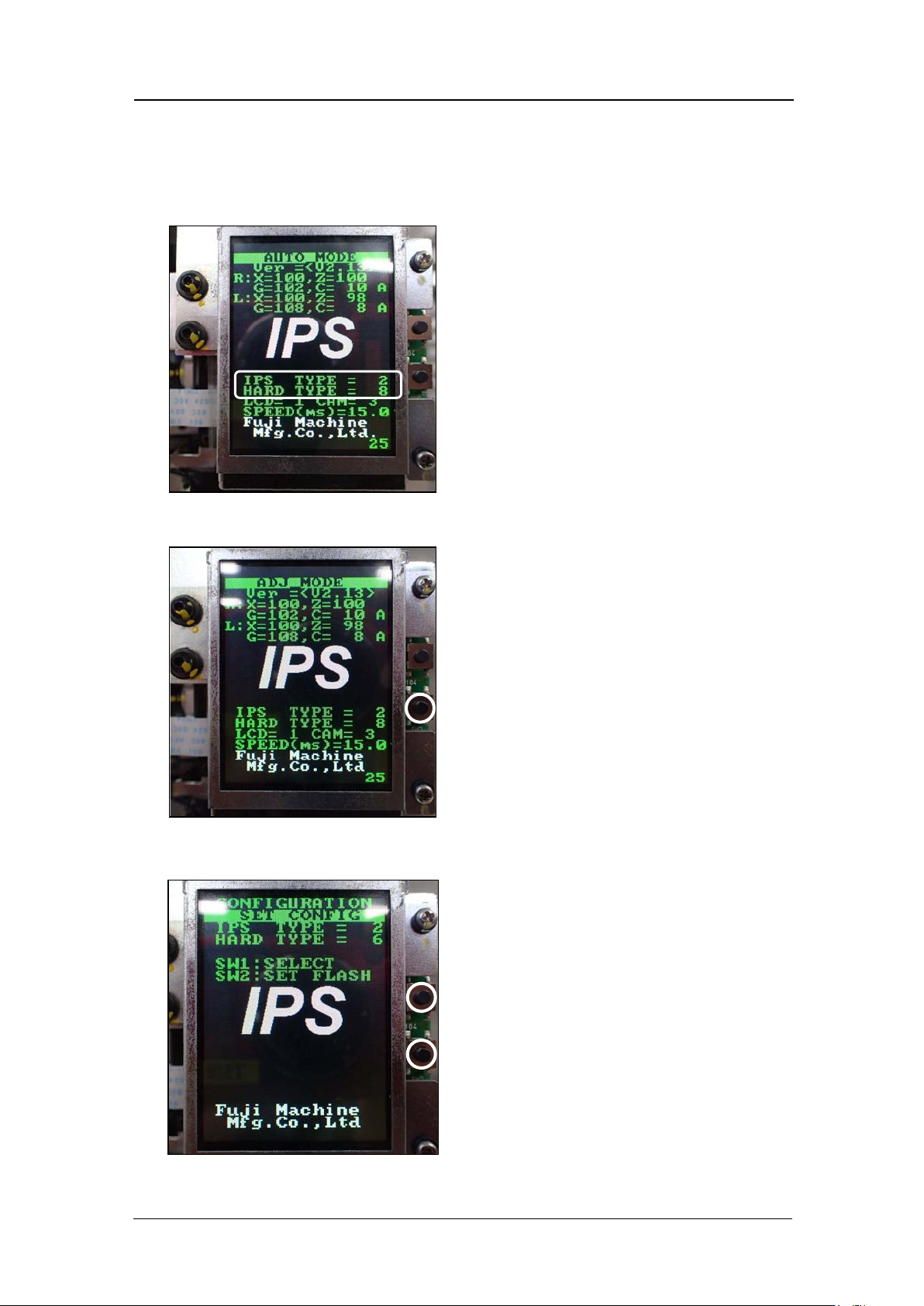

Configur a t ion setti ngs
1. Firs tly, check the "IPS TYPE” and “HARD TYPE ” on the LCD screen. The “Hard Type”
setting var ies depend ing o n the IPS board.
2. Press and ho ld t he lower button to enter “ADJ MODE”.
3. Press the upper and lower buttons together to select the “Confi gur at i on” sc reen.
CONFIDENTIAL
Edition 1.0
IPS Adjustment for Various Head Types on the Module
<H08MQ head>
FK-9F50-74-0E
6-8
FUJI CORPORATION
4. Press the upper button to select “IPS TYPE” and “HARD TYPE”, and then press the
lower button to save the settings. The settings differ depending on the IPS board, so
be careful t o m ake the correct settings.
IPS Type
Hard type
IPS Board
IPS2
4
FH1374A0F (Old)
8
FH1374B0F (New)
Note: The difference between old and new boards is the difference between the LED
drivers on t he I PS m ain board.
5. The head mu st be r ebooted a f t er m aking the sett i ngs.
CONFIDENTIAL
Edition 1.0
IPS Adjustment for Various Head Types on the Module
<H08MQ head>
FK-9F50-74-0E
6-9
FUJI CORPORATION

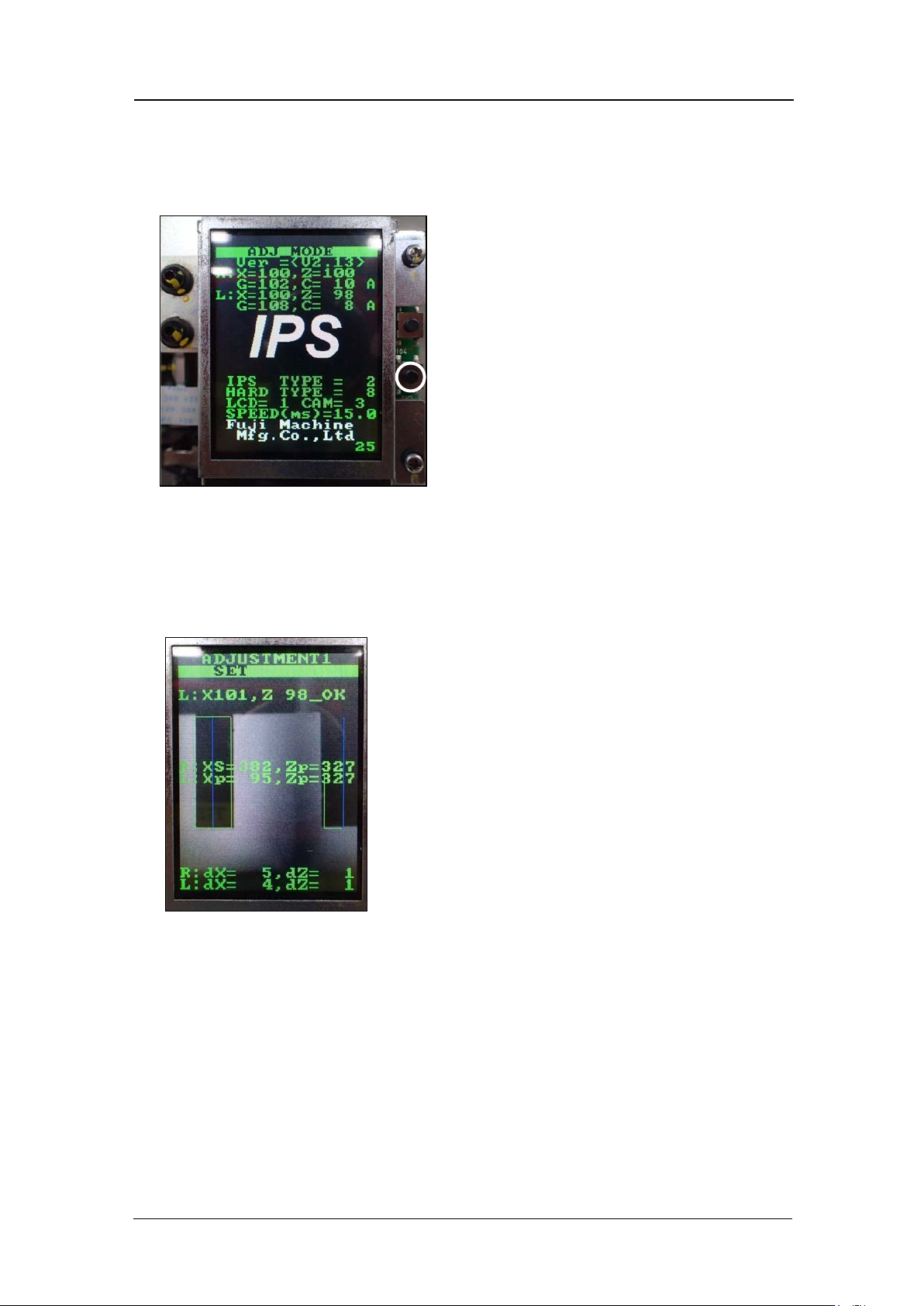

Adjusting t he c a mer a ins tallation posit ion
1. Press the low er but t on t o return to “ADJ MODE”.
2. Use Equipment Check to turn the following I/Os ON.
Y10C Lower Transport Height C ommand
Y10D Lower IPS Back Comm and
3. Press the low er but t on t o enter “ ADJ USTM E NT 1” mode.
