Edition 1.0 IPS Adjustment for Various Head Types on the Module
<G04Q head>
FK-9F50-74-0E 7-12 FUJI CORPORATION
8. Press the low er but t on until the current v alue is within tolerance.
9. Once the grayscale value is 120 or more and the current value is 20 mA o r les s, p ress
the upper button to display “ CURR ENT BACK”.
10. Press the lower button t o return to “ADJUST M ENT2 CURRENT”.
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<G04Q head>
FK-9F50-74-0E 7-13 FUJI CORPORATION
11. Press the upper button to display “ADJUSTMENT2 SET”, and then press the lower
button to save the sett ings.
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<G04Q head>
FK-9F50-74-0E 7-14 FUJI CORPORATION

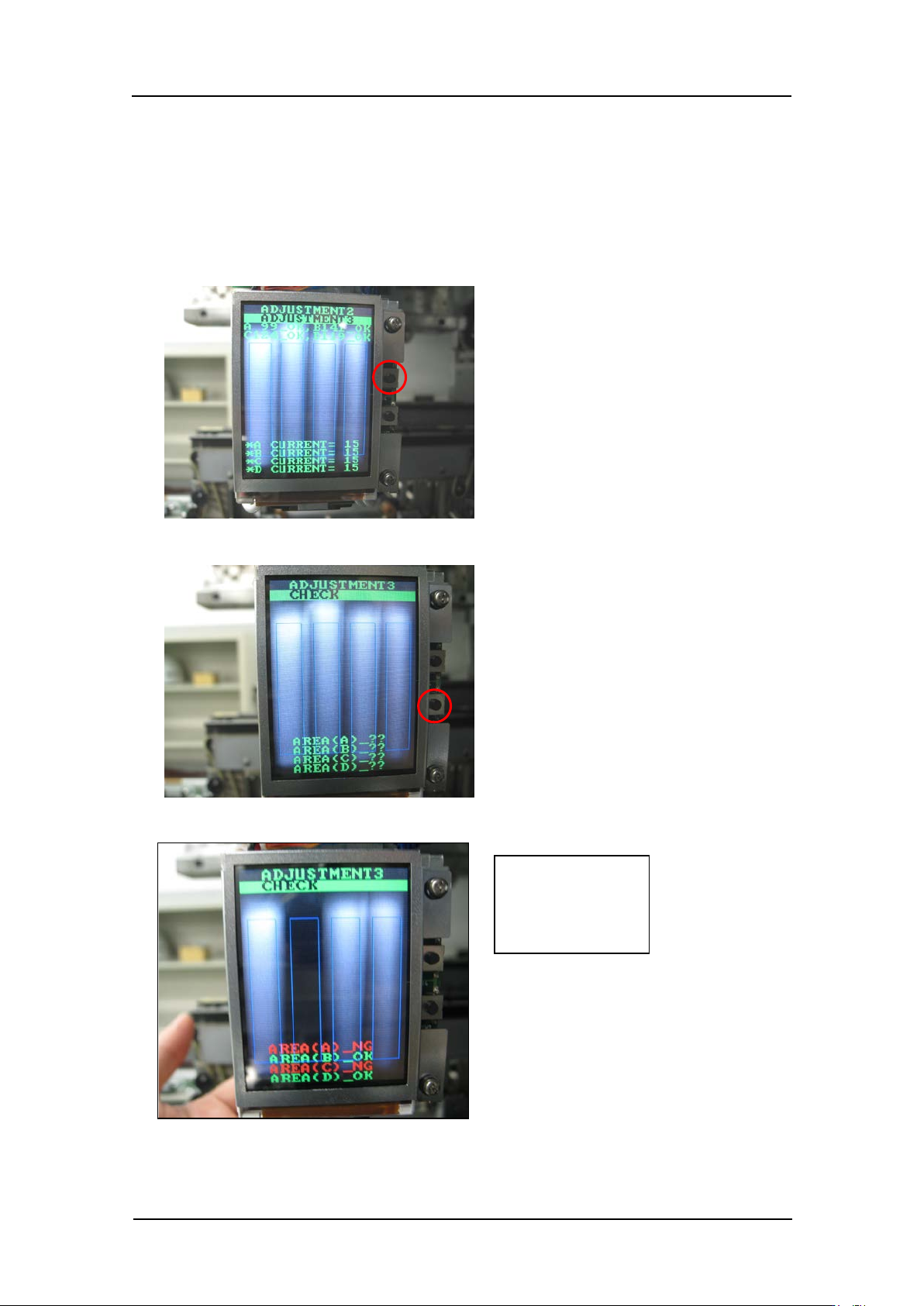

Checking the field of vision
External l ig ht can affect the results so be sure to per form the procedure in a shaded area.
1. Continuing from the procedure above, press the upper button to display
“ADJUSTMENT 2 ADJUSTMENT 3”.
2. Press the lower button t o display “ ADJUSTMENT 3 CHECK”.
3. Block hold er A and conf irm that “AREA (A)_NG” and “AREA (C)_NG ” dis play.
Check:
AREA (A) _NG
AREA (C) _NG
