Edition 1.0 IPS Adjustment for Various Head Types on the Module
<G04Q head>
FK-9F50-74-0E 7-16 FUJI CORPORATION
5. Press the upper and lower buttons simultaneously to reverse the LCD contrast, and
then check that there are no white areas within the blue rectangles. If there are white
areas within the blue rectangles, follow the procedure below to readjust the camera
position.
6. Use a wrench t o loosen the bolts shown in the following p hot o.
7. Adjust the position of the camera so that there are no white areas within the blue
rectangles on the LCD.
Caution: After this adjustment it is necessary to repeat “3.7 Adjusting the camera
installat i on position ” t o check the camera resoluti on, posi t i on and til t .
8. Tighten t he bolts with 0.5 Nm torque.
9. The field of v isi on check is now complete.
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<G04Q head>
FK-9F50-74-0E 7-17 FUJI CORPORATION
10. Press the upper button to display “ ADJUSTMENT 3 BACK”.
11. Press the lower button t o display “ADJUSTMENT 2 CURRENT”.
12. Press the upper button to display “ ADJUSTMENT 2 SET”.
13. Press the upper button to display “ ADJUSTMENT 2 ADJUSTMENT 3”.
14. Press the upper button to display “ ADJUSTMENT 2 BACK”.
15. Press the lower button t o display “ADJUSTMENT 1 SET”.
16. Press the upper button to display “ ADJUSTMENT 1 ADJUSTMENT 2”.
17. Press the upper button to display “ ADJUSTMENT 1 BACK”.
18. Press the lower button t o display “ADJ MODE”.
Note: to return to the initial “AUTO MODE” screen it is necessary to turn the head
power OFF.
Note: If the “ ADJUSTMENT 1” resolution and camera position were changed, be sure
to perform the calibration.
19. Transmit a JOB which uses the IPS function to the machine and confirm that the IPS
camera function s correct ly.
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<G04Q head>
FK-9F50-74-0E 7-18 FUJI CORPORATION

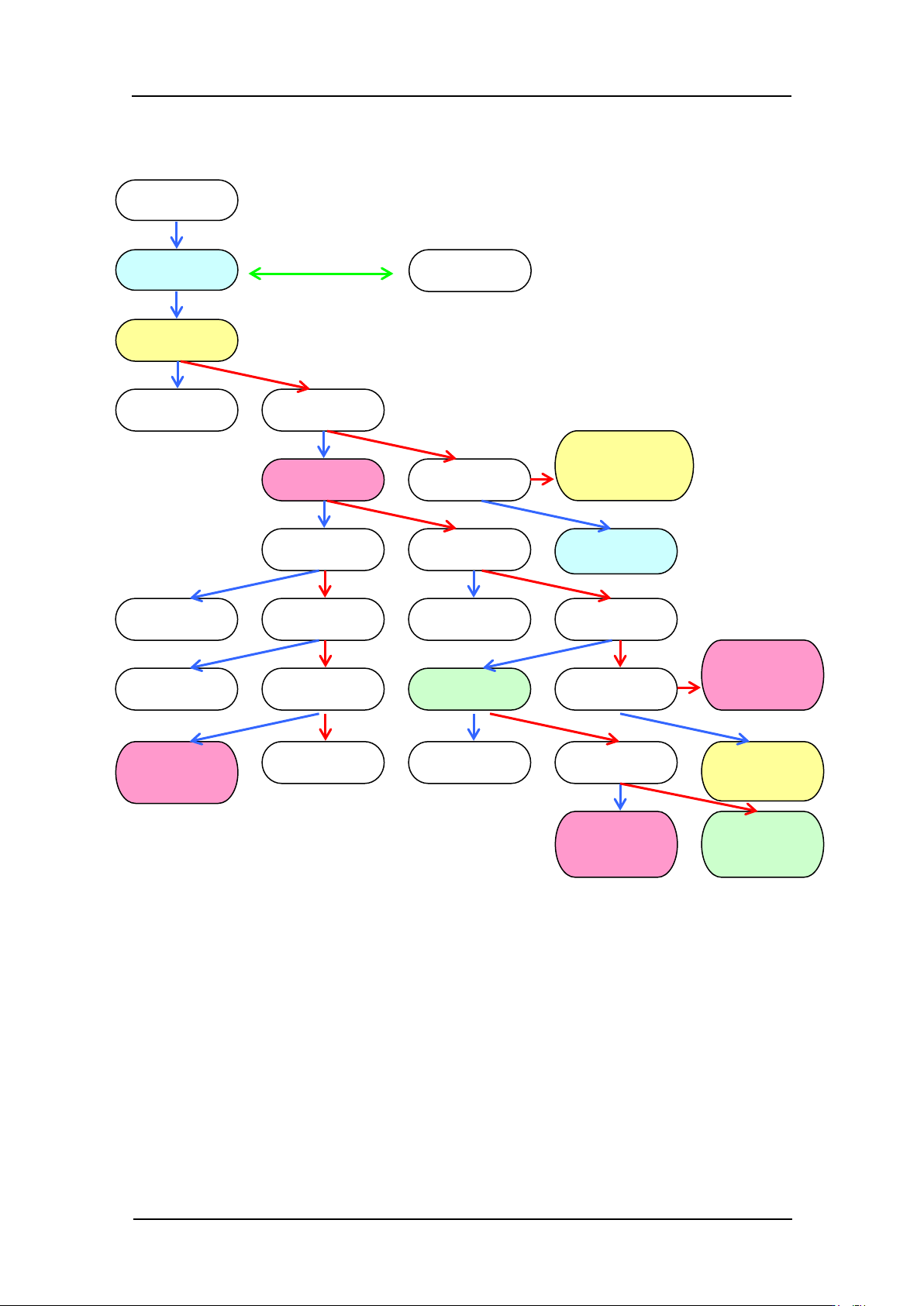

Mode setting cha r t
ADJUSTME NT 1
ADJUSTME NT 2
ADJUSTME NT 1
BACK
ADJUSTME NT 2
CURRENT
CURRENT
UP
ADJUSTMENT 2
SET
CURRENT
DOWN
Raise
Current
Save setting
ADJUSTM ENT 2
ADJUSTME NT 3
Lower
Current
CURRENT
BACK
ADJUSTME NT 3
CHECK
ADJUSTME NT 2
BACK
Return to:
ADJUSTME NT 2
CURRENT
CURRENT
UP
ADJUSTME NT 3
BACK
Return to:
ADJUSTME NT 2
CURRENT
Return to:
ADJUSTME NT 3
CHECK
AUTO MODE
ADJ MODE
ADJUSTME NT 1
SET
Save setting
Check field of vision
Return to
ADJUSTME NT 1
SET
Return to:
ADJUSTME NT 2
CURRENT
Up
Up
long press
Down
Down
Down
Up
Up and down together
Up
Up
Up
Up
Up
Up
Up
Up
Up
Down
Down
Down
Down
Down
Down
Down
Down
Down
CONFIGURATION
SET CONFI G
Return to
ADJ MODE
Return to
ADJUSTME NT 1
SET
Up
Down
