Edition 1.0 IPS Adjustment for Various Head Types on the Modul e <DX h ead> FK - 9F50 - 74 -0E 3-5 FUJI CORPORAT ION 3.3 I P S uni t bri ght ness adjus t m e nt 1. Close the front cover and release the e mergen cy …

100%1 / 172
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-4 FUJI CORPORATION
11. Push the upper button t o ma ke the settings shown bel ow.
12. Push the lower butt on t o save the sett ings.
13. After changing the settings, be sure to turn OFF the module. (It is necessary to reboot
the head.)
14. T ur n ON the mod ule power.
15. Push the start but ton and then push the cy cle st op button i m med iately.
16. The power is su pplied to the DX head.
IPS TYPE
2a
HARD TYPE
11
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-5 FUJI CORPORATION
3.3 I P S uni t bri ghtness adjus t m e nt
1. Close the front cover and release the emergency stop button.
2. Push the star t button and t hen push the cy c le stop button i m med iately.
3. Startup Motion Adjustment Tool.
4. Record the R-axis (Axis3) count er valu e.
5. Push the emergency stop button and move the XY robot (head) towards the device pallet
side by hand.

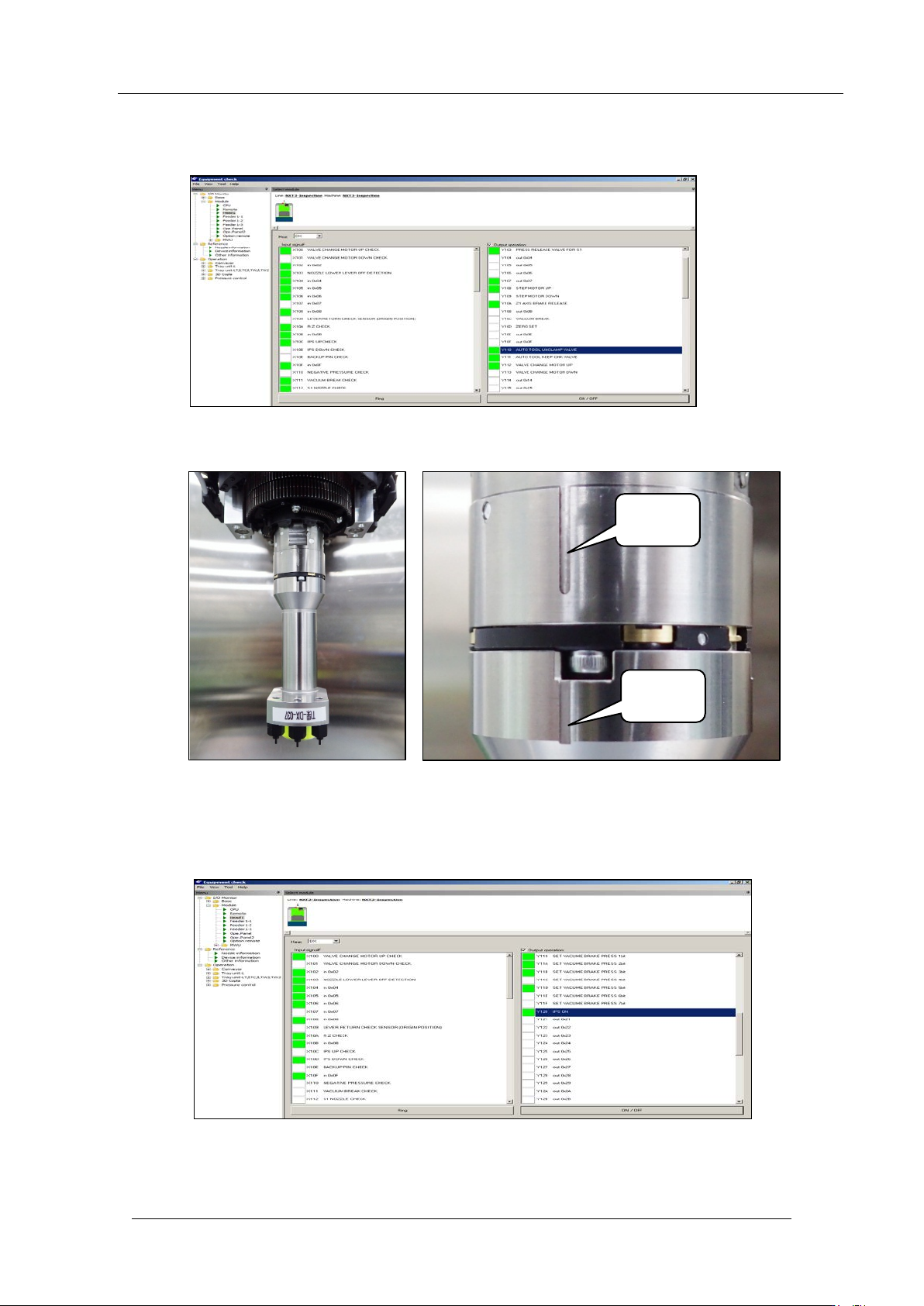

6. Use Equip m ent Check I/O monitor to turn ON [Y10A Z1AXIS BRAKE RELEASE].
Note: The Z-axis lowers down by its ow n weight. Be careful it does not interfere with the
other parts .
7. Lower the Z 1-axis by hand, and t hen set the R-axis so the vert ical groove is at the front
as shown bel ow.
Vertical
groove
R-axis
R Axis
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-6 FUJI CORPORATION
8. Turn OF F [Y10A Z1AXIS BRAKE RELEASE].
9. Turn ON [Y110 AUTO TOOL UNCLAMP].
10. Attach the IPS adjustment jig to the auto-tool clamper so the line on the jig is aligned
with the line on t he clamper, and then turn OFF [Y1 10 AUTO TOOL UNCLAMP].
11. Check the R-axis (Axis 3) servo counter value using Motion Adjustment T ool. Rotate the
R-axis by hand so it become s t he value recor ded in Step 4.
12. T ur n ON [Y120 I PS ON] to lower the IP S unit.
Vertical
groove
Vertical
groove
