Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-6 FUJI CORPORATION
8. Turn OF F [Y10A Z1AXIS BRAKE RELEASE].
9. Turn ON [Y110 AUTO TOOL UNCLAMP].
10. Attach the IPS adjustment jig to the auto-tool clamper so the line on the jig is aligned
with the line on t he clamper, and then turn OFF [Y1 10 AUTO TOOL UNCLAMP].
11. Check the R-axis (Axis 3) servo counter value using Motion Adjustment T ool. Rotate the
R-axis by hand so it become s t he value recor ded in Step 4.
12. T ur n ON [Y120 I PS ON] to lower the IP S unit.
Vertical
groove
Vertical
groove
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-7 FUJI CORPORATION
13. On the IPS monit or, hold down the low er but t on t o enter “ADJ MO DE”.
14. Push the lower button once to enter “ AD JUSTME N T1”.
15. Move the Z1-axis to the IPS vision processing position. Use Equipment Check I/O
monitor to turn ON [Y10A Z1AXIS BRAKE RELEASE].
16. Raise the Z1-axis so the jig displays on the IPS monitor as shown below. Align the
bottom edge of n ozzle with the green frame.
17. Turn OFF [Y10A Z1AXIS BRAKE RELEASE].
18. Push the upper butt on
once to select “ AD JUSTME NT 2” .
ADJUSTMENT 2
Align the bot t om edge of the
nozzle with the gr een frame.
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-8 FUJI CORPORATION

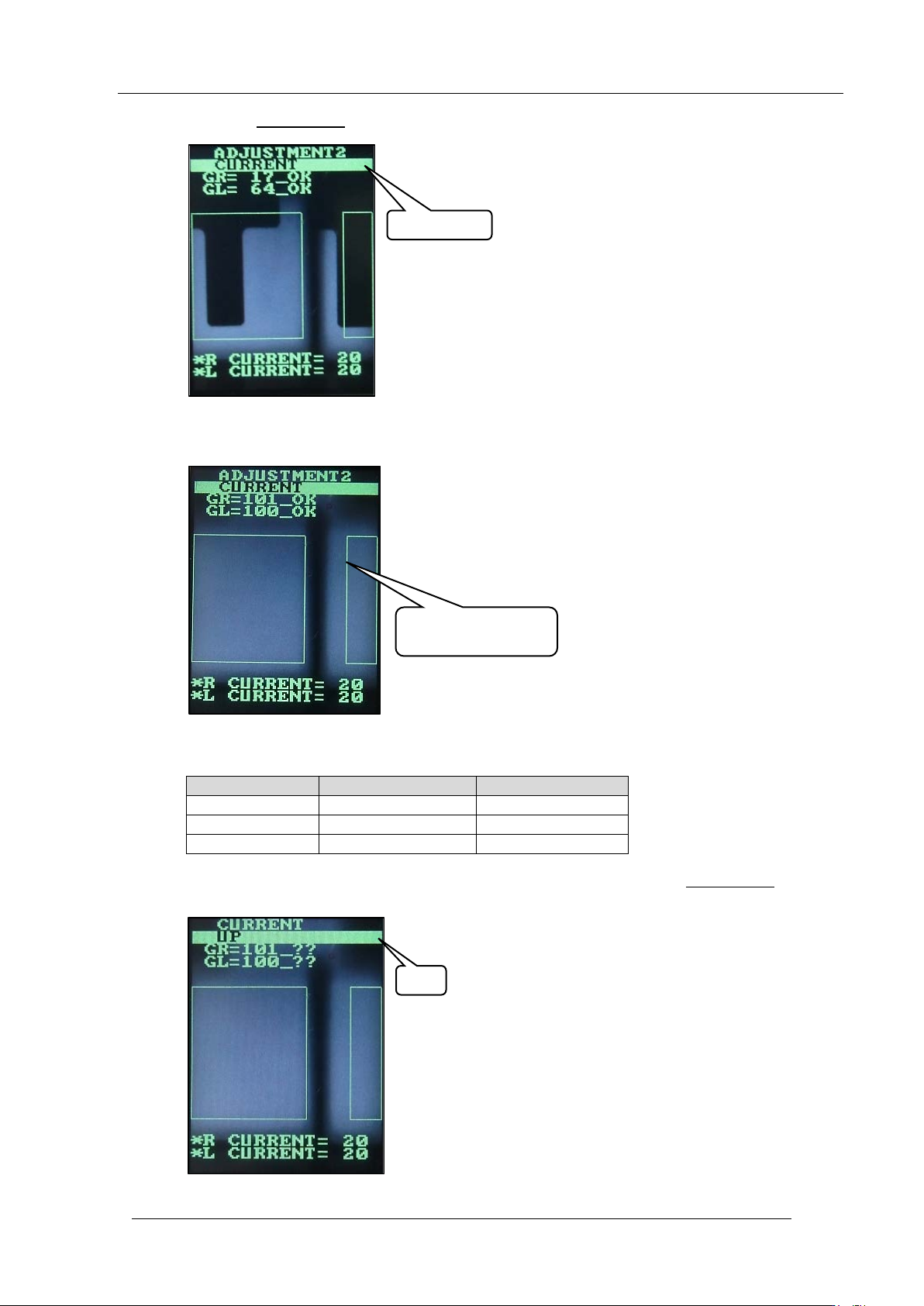

19. Push the lower button once to display “CURRENT”.
20. Rotate the jig 180 degrees (R-axis) so only the fluorescent sticker is displayed on the
IPS monitor .
21. Check the current and gray scale values are within tolerance shown in the following
table.
Tolerance
Target
CURRENT
26 or less
Same as toler ance
GR
100 ~ 140
100
GL
100 ~ 140
100
22. If the gray scale value is not close to the target value of 100, push the lower but ton once
to select “UP” .
。
CURRENT
UP
Only the sticker is
displayed
