Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-12 FUJI CORPORATION
35. Block the right -hand glass with a piece of paper as shown below.
36. With the glass still blocked, push the lower button
.
37. Check that “E DGE 2_NG” and “E DGE3_O K” are displayed. Also, che ck that “S2=1 00% ”
and “S3=0%” are displayed.
38. Push the upper and lower buttons together
to reverse the LCD contrast, and then chec k
there are no white areas inside the rectangles. If there are white areas inside the
rectangles, it is necessar y to readjust t he position o f the IPS unit.
Block with
paper
Check there are no
white areas inside
the rectangles
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-13 FUJI CORPORATION
39. Push the upper and lower butt ons together to set the LCD contrast back to normal.
40. Push the upper butt on once to sele ct “BACK”.
41. Push the lower but ton
once to select “CURRENT”.
42. Hold down the lower button
to display the follow ing screen
BACK
CURRENT
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-14 FUJI CORPORATION

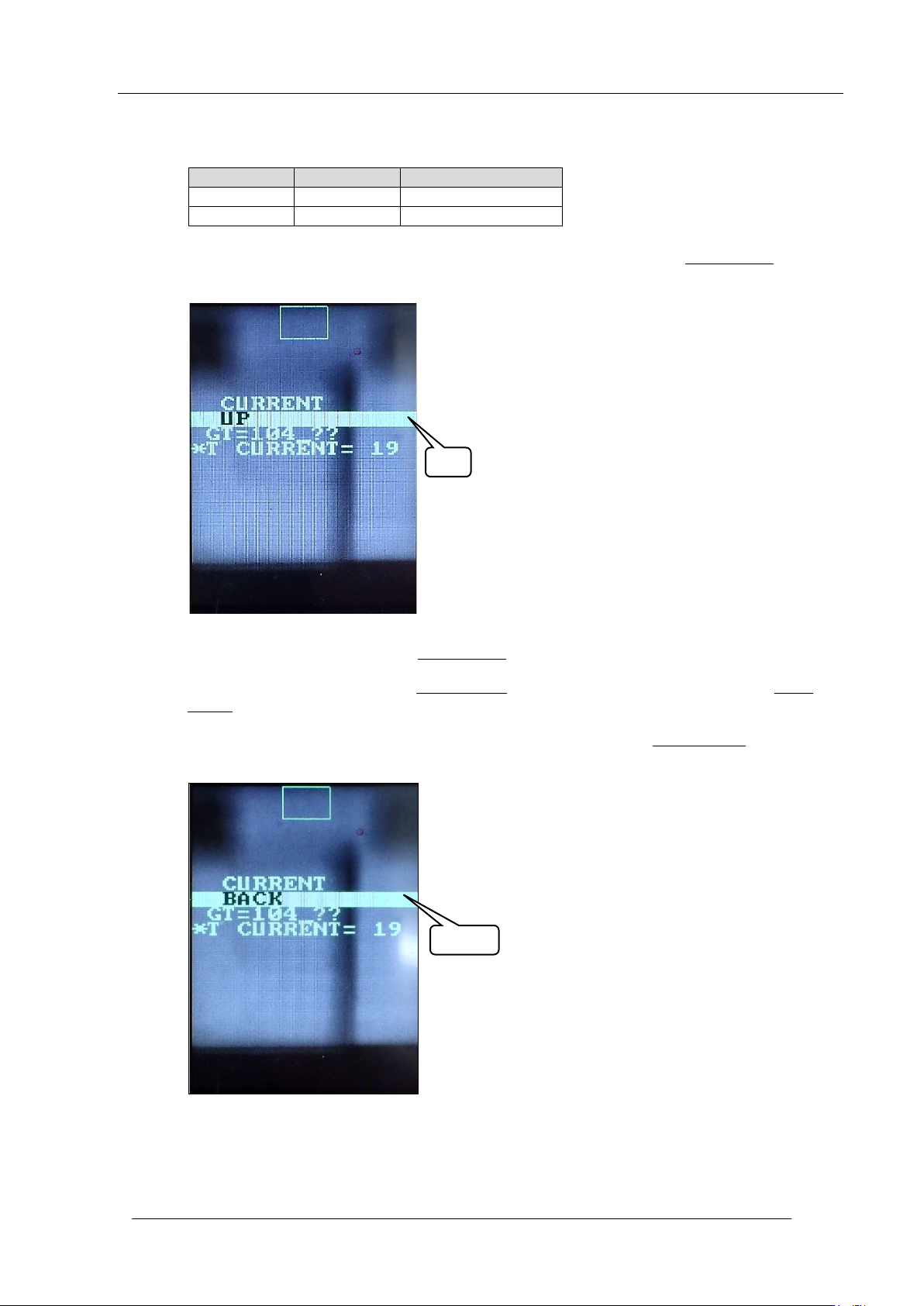

43. Check the current and gray scale values are within tolerance shown in the following
table.
44. If the gray sc ale value is not close to the t arget v alue of 100, push the lower but ton once
to select “UP” .
45. To increase the v alue, push the lower but t on
.
46. To decrease the value, push the upper button to select “DOWN”, and then push the lower
button to decrease the value.
47. Once the gray scale value is close to the target value, use the upper button to select
“BACK”.
Item
Tolerance
Target
CURRENT
26 or lower
Same as tolerance
GT
100 to 140
100
UP
BACK
