Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-14 FUJI CORPORATION
43. Check the current and gray scale values are within tolerance shown in the following
table.
44. If the gray sc ale value is not close to the t arget v alue of 100, push the lower but ton once
to select “UP” .
45. To increase the v alue, push the lower but t on
.
46. To decrease the value, push the upper button to select “DOWN”, and then push the lower
button to decrease the value.
47. Once the gray scale value is close to the target value, use the upper button to select
“BACK”.
Item
Tolerance
Target
CURRENT
26 or lower
Same as tolerance
GT
100 to 140
100
UP
BACK
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-15 FUJI CORPORATION
48. Push the lower button once t o display “CUR RENT”.
49. Push the upper butt on
once to display “ SET”.
50. Push the lower button
once to sav e t he settings.
CURRENT
SET
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-16 FUJI CORPORATION

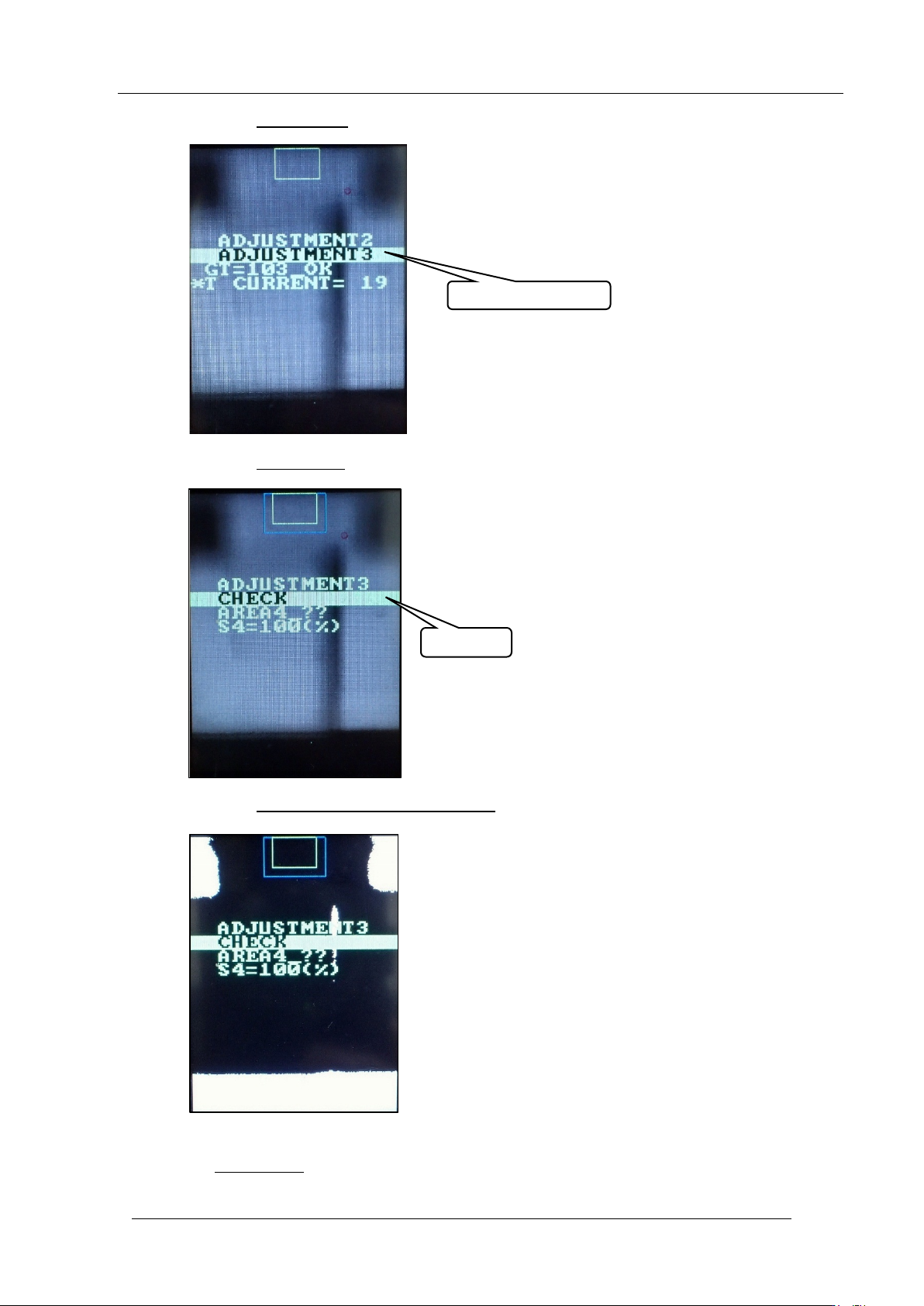

51. Push the upper butt on once to sele c t “ AD JU STMENT 3”.
52. Push the lower button
once to display “ CH ECK”.
53. Push the upper and low er buttons together
to reverse the contrast.
54. Make sure nothing is blocking the middle glass on the IPS prism, and then push
the lower but t on
once.
ADJUSTMENT 3
CHECK
CONFIDENTIAL
