Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-16 FUJI CORPORATION
51. Push the upper butt on once to sele c t “ AD JU STMENT 3”.
52. Push the lower button
once to display “ CH ECK”.
53. Push the upper and low er buttons together
to reverse the contrast.
54. Make sure nothing is blocking the middle glass on the IPS prism, and then push
the lower but t on
once.
ADJUSTMENT 3
CHECK
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-17 FUJI CORPORATION
55. Check that “A RE A4_OK” and “ S4=0%” are displayed.
56. Block the middle glass as show n below.
57. With the glass still blocked, push the
lower button.
58. Check that “A RE A4_NG” and “S4=100% ” are displayed.
Block this
area
CONFIDENTIAL
Edition
1.0 IPS Adjustment for Various Head Types on the Module
<DX head>
FK-9F50-74-0E 3-18 FUJI CORPORATION

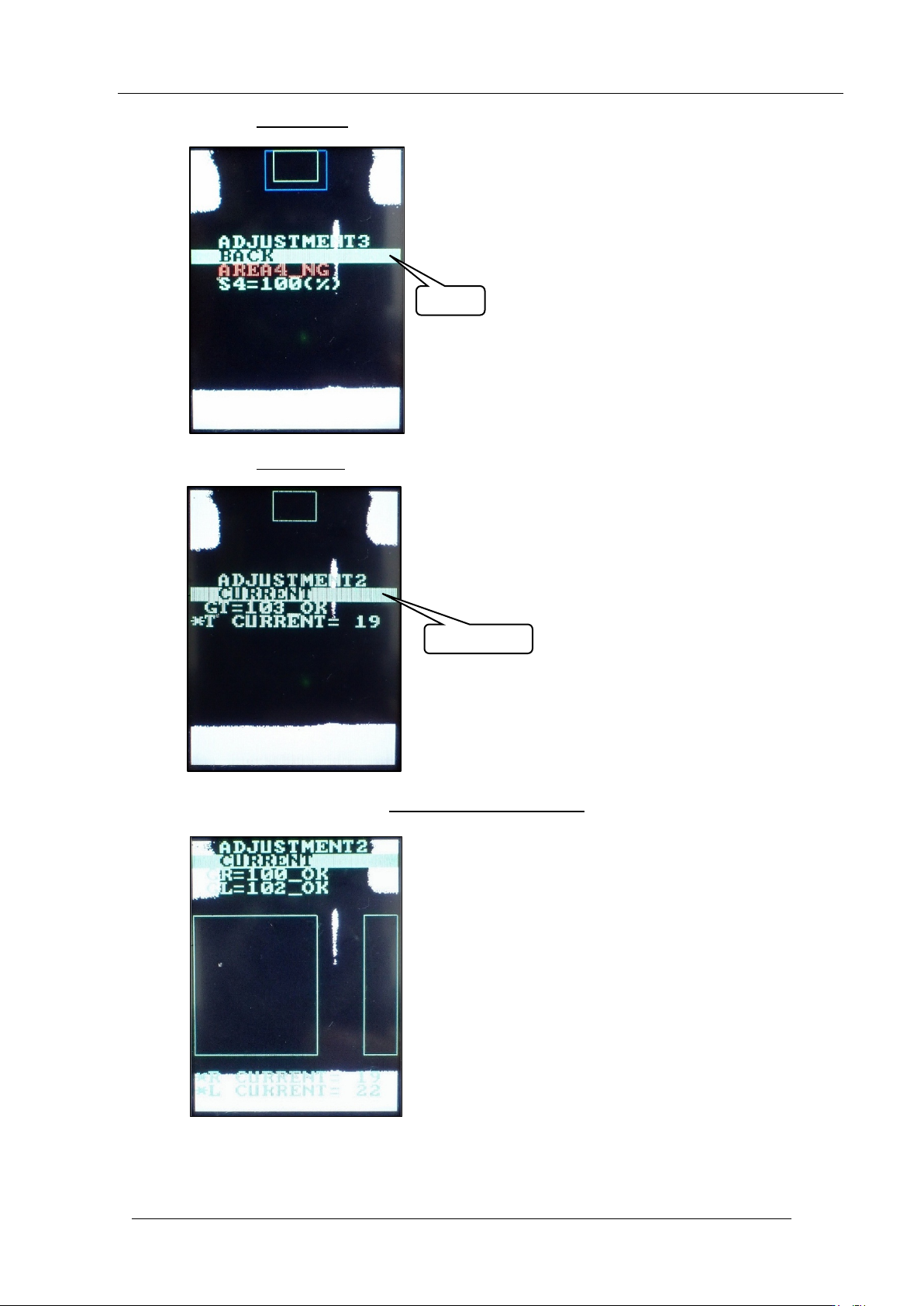

59. Push the upper butt on once to sele c t “ BA CK”.
60. Push the lower button
once to display “ CU R RENT”.
61. With “CURRENT” selected, hold down the lower button
to display the followin g scr een.
BACK
CURRENT
