Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-3
FUJI CORPORATION
The follow ing st eps explain how to chec k the s er vo counter using Motion Adjustment Tool.
8. After the machine wakes up, press [Start] button and then press [Cycle stop] button
immediately.
9. Start up Motion Adjustment Tool.
10. Select [Communication] – [Connect].
Select
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-4
FUJI CORPORATION
11. Enter the IP address of the target base and the module number, and then select
[Connect].
12. Right-click on the IP address and then se lect [ Collect Network Con fig ur at i on].
13. Record the Axis 3 ( R-axis servo c ount er ) value. (Ref er ence value : 30000 ± 500 pulses)
R-axis
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-5
FUJI CORPORATION

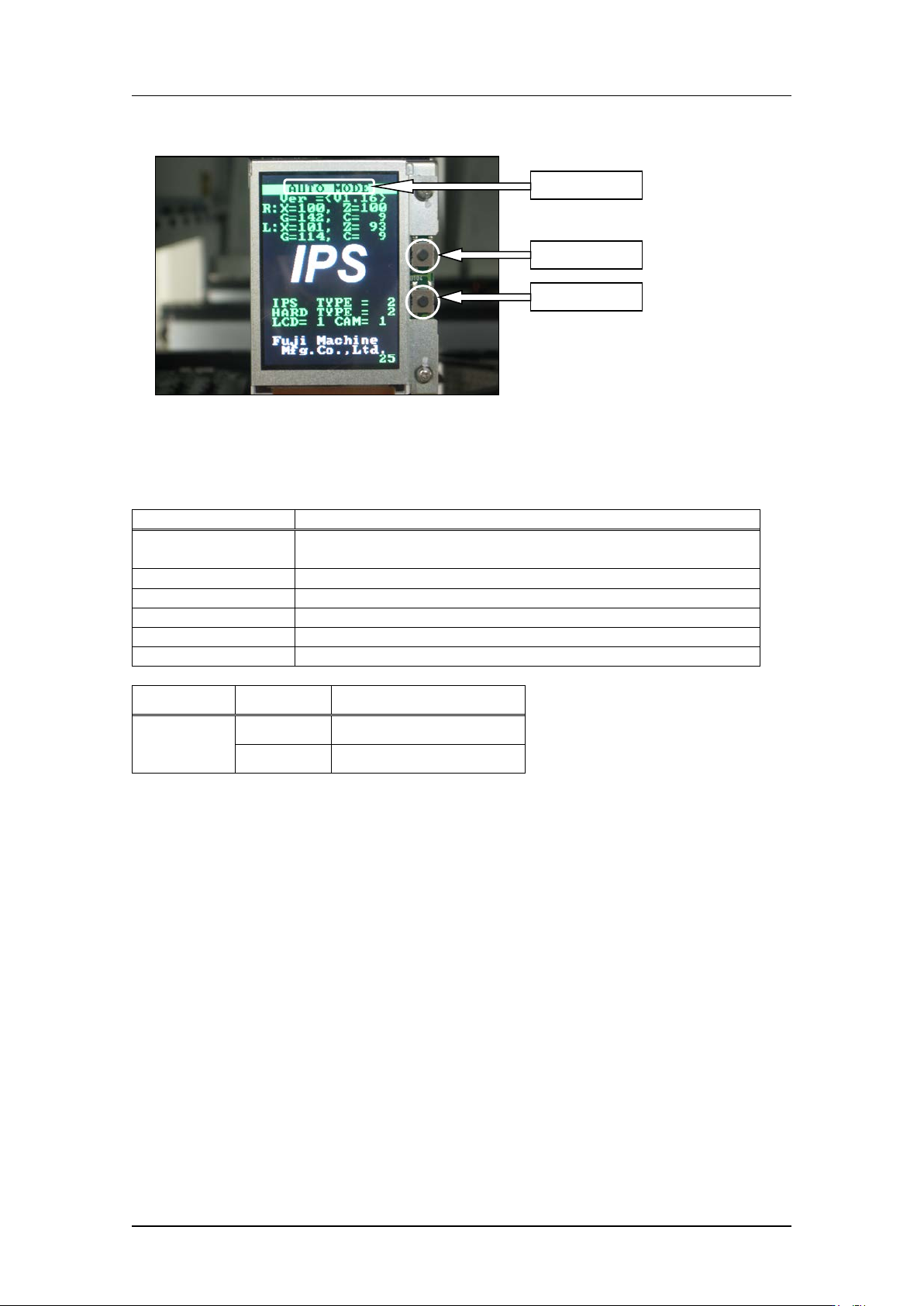

Component nam e s and e x planation of the a djustment modes
Mode name: displays t he cur r ent ly selected adjustment mode.
Back butt on: used t o switch t o a different mode f rom t he cur r ent ly selected mode.
Set button: us ed when saving or when selecting mo des.
There are six a djustment modes a s show n below. The adjustments differ for e ach mode.
Mode name
Contents
AUTO
MODE
The initial screen displayed when the power is supplied to the
head.
ADJ MODE
This mode is used to acce ss t he 3 adjustme nt modes below.
ADJUSTMENT 1
Used for res ol ut ion and tilt adjustment.
ADJUSTMENT 2
Used for gray scale and cu r r ent value adjustment.
ADJUSTMENT 3
Used to chec k the field of vision.
CONFIGURATION
Used to set t he function settings.
IPS Type
Hard Type
IPS Board
2
2
FH1374A0F(Old)
6
FH1374B0F(New)
Note: The differe nce between old and new boards is the difference between t he LED
drivers on the IPS main board.
Back butt on
Set button
Mode name
