Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-8
FUJI CORPORATION
Adjusting t he c a mer a ins t al lation posit ion (ADJUSTMENT1)
1. Press the upper and lower buttons s i m ultaneously t o retur n t o “ADJ MODE”.
2. Press the low er but t on t o enter “ ADJ USTM E NT 1” mode.
3. Use MotionTool.mini to check that the A holder is at the front of the head (the position
where the B and L holders are aligned).With holder A at this position, adjust the
position of the camera so that the jigs on the B and L holders match up with the green
frames on the scre en.
The jigs match the
green frames on the
screen.
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-9
FUJI CORPORATION
4. Use the bolts below to adjust the camera position so that the center value, resolution
and tilt are al l w ithin t olerance.
Inspection item
Tolerance
Target value
Camera resolution
L: X = 90~110
L: Z = 90~110
Same as tolerance
Center val ue
R: Xs = 380~400, Zp = 310~330
L: Xp = 80~100, Zp = 310 ~330
R: Xs = 390, Zp = 320
L: Xp = 90, Zp = 320
Tilt
R: dX = 0~9, dZ = 0~9
L: dX = 0~9, dZ = 0~9
R: dX = 0, dZ = 0
L: dX = 0, dZ = 0
5. Press the lower button to save the settings, and then press the upper button to enter
[ADJUSTM ENT 2 ] mode.
Resolution
Center val ue
Tilt
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-10
FUJI CORPORATION

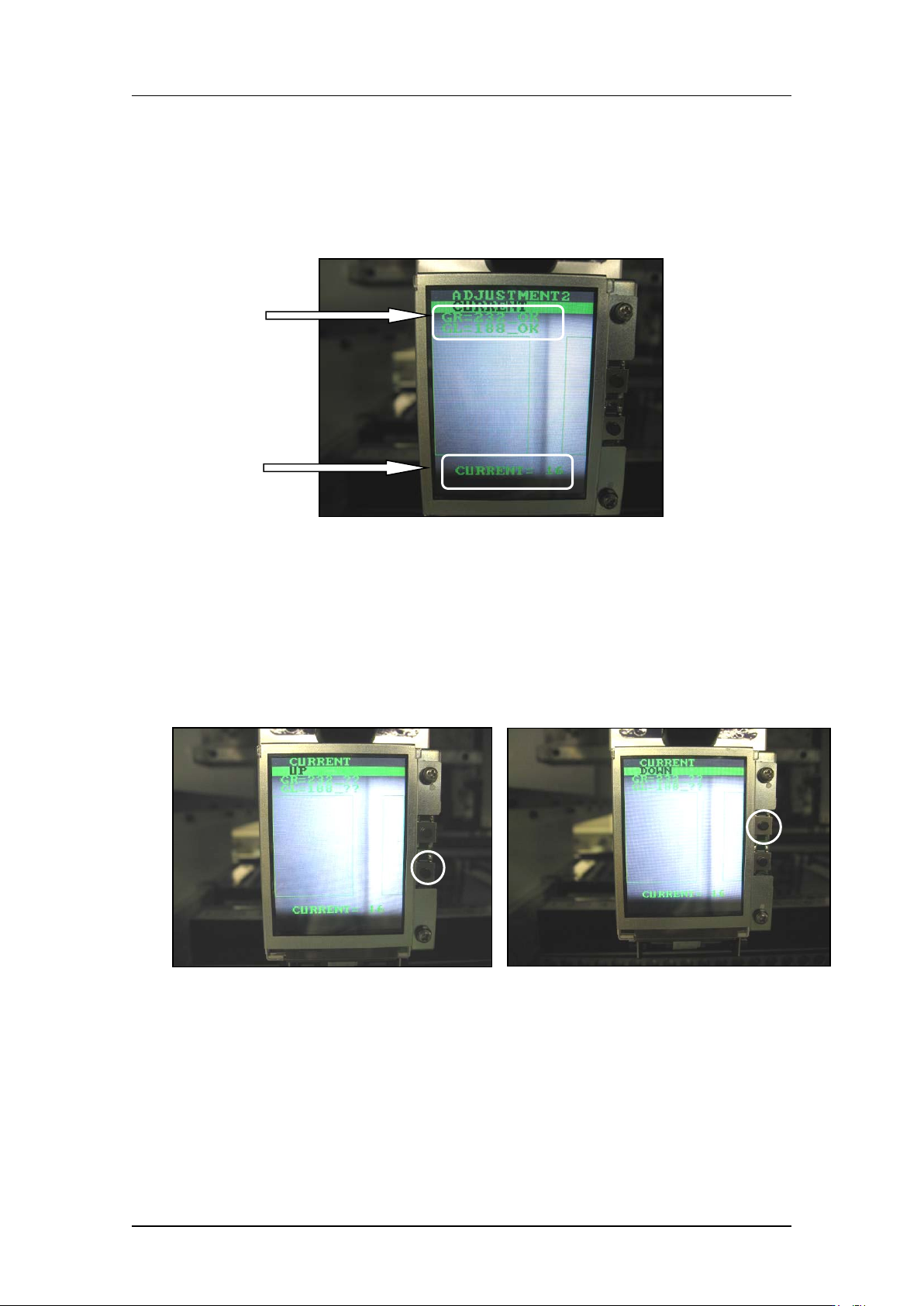

Adjusting the current value (grayscale value)
Adjust i ng t he current value (grayscale value) for IPS versions below 1.21
1. Remov e t he jigs . Pres s t he lower button to display the curr ent and grayscale values.
2. Rotate the R-axis by hand to find the positions where the grayscale values (GR and
GL) are maximized and minimized. Check that the minimum and maximum grayscale
values are within the tolerance of 95~250. Also check that the current value is 24 mA
or less.
3. If the gray scal e values are not within t he targ et values, adjust t hem as shown below.
4. Press the low er but t on t o display “CURRENT, UP” or “CURRENT, DOWN” to adjust the
current v alue.
Grayscale
values
Current
values
