Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-14
FUJI CORPORATION
Checki ng t he fi e ld of vision (ADJUSTMENT3)
External l ight can affect the results, so be sure t o perform the pr ocedure in a shaded area.

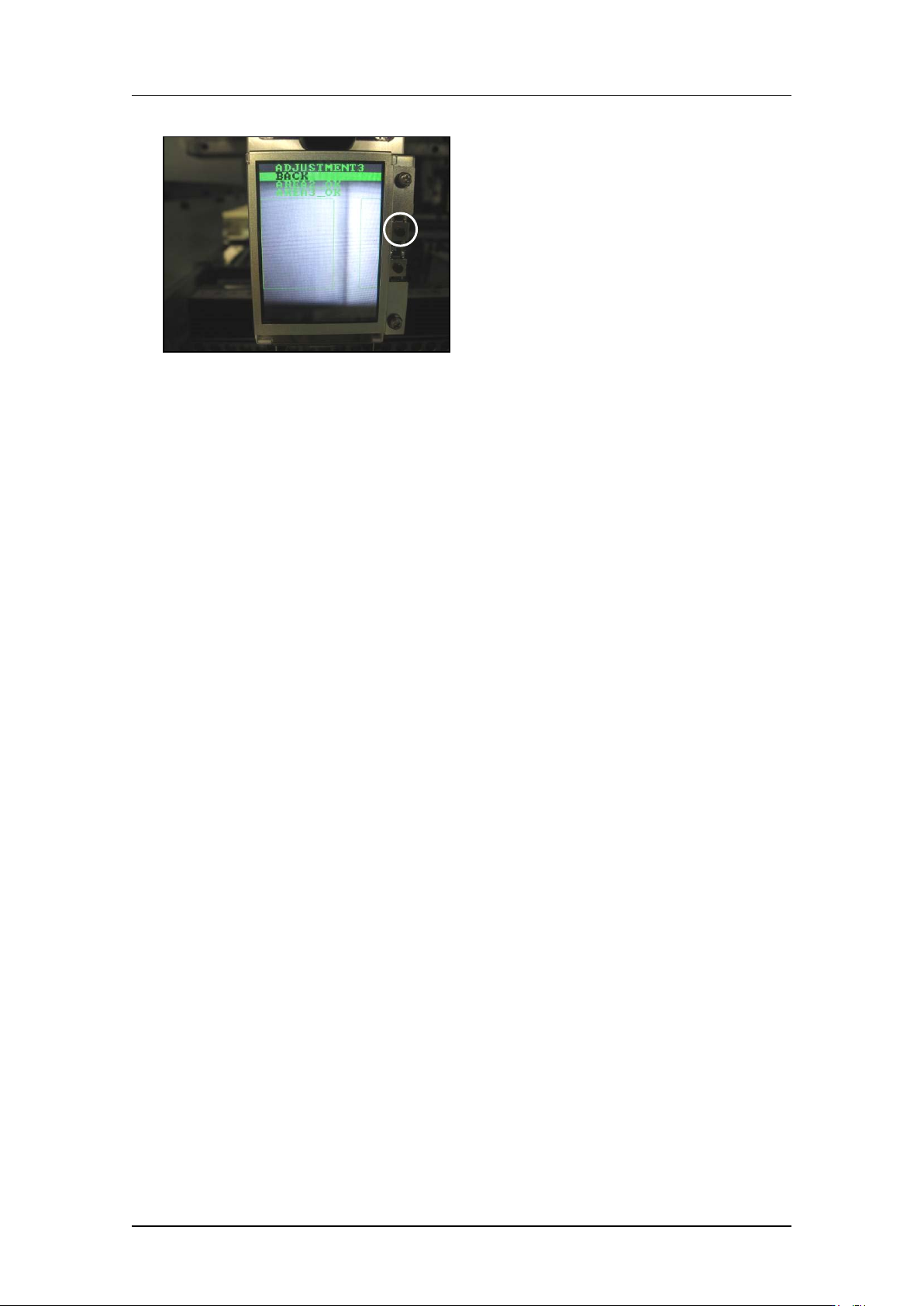

1. Continuing from the procedure above, press the upper button to display
“ADJUSTMENT 2 ADJUSTMENT 3”.
2. Press the low er but t on t o display “ A DJUSTMEN T 3 CHECK”.
3. Block one of the glasses with some paper etc., and then press the lower button. (In the
example below, the right-hand glass as viewed from the front of the machine is
blocked).
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-15
FUJI CORPORATION
4. Check that “EDGE2_NG, EDGE3_OK” displ ays. A lso che ck t hat S2 = 100 %, S3 = 0 %
displays.
5. 4. Block the other glass with some paper and then press the lower button. (In the
example b elow t he left-hand gl ass as viewed from the fro nt of the machine is blocked).
6. Check that “EDGE2_OK, EDGE3_NG” displays. Also, check that S2 = 0 %, S3 =
100 % displays.
7. Press the upper and lower buttons simultaneously to reverse the LCD contrast, and
then check that there are no white areas within the green rectangles. If there are white
areas within the green rectangles, it is necessary to readjust the position of the camera.
If the camera position is readjusted, it is necessary to check the resolution, center
values and t ilt.
CONFIDENTIAL
Edition 1.0 IPS Adjustment for Various Head Types on the Module
<V12 head>
FK-9F50-74-0E
4-16
FUJI CORPORATION
8. Press the upper button t o disp lay “ADJ US TMENT 3 BACK”.
9. Press the low er but t on t o display “ A DJUSTMEN T 2 CURRENT”.
10. Press the upper button to display “ ADJUSTMENT 2 SET”.
11. Press the upper button to display “ ADJUSTMENT 2 ADJUSTMENT 3”.
12. Press the upper button to display “ ADJUSTMENT 2 BACK”.
13. Press the lower button t o display “ADJUSTMENT 1 SET”.
14. Press the upper button to display “ ADJUSTMENT 1 ADJUSTMENT 2”.
15. Press the upper button to display “ ADJUSTMENT 1 BACK”.
16. Press the lower button t o display “ADJ MODE”.
17. The field of vision check is now complete.
If the ADJUSTMENT 1 data was updated, it is necessary to perform the
calibration using [Accessory software] – [Calibration] – [Remeasure
Calibration] command
.
Otherwise, the saved values w ill not be updat ed.
