Mechanical Drawings 9 145370 Issue 3 T able Lif t GA 5 4 3 2 1 A B C C B A 123 4 5 67 8 9 10 11 12 13 6 7 8 9 10 11 12 13 D E F G H I D E F G H I PROJECTION DRAWN APPROVED DATE C COPYRIGHT DO NOT SCALE SCALE TITLE DRAWIN…

100%1 / 68
8 Mechanical Drawings

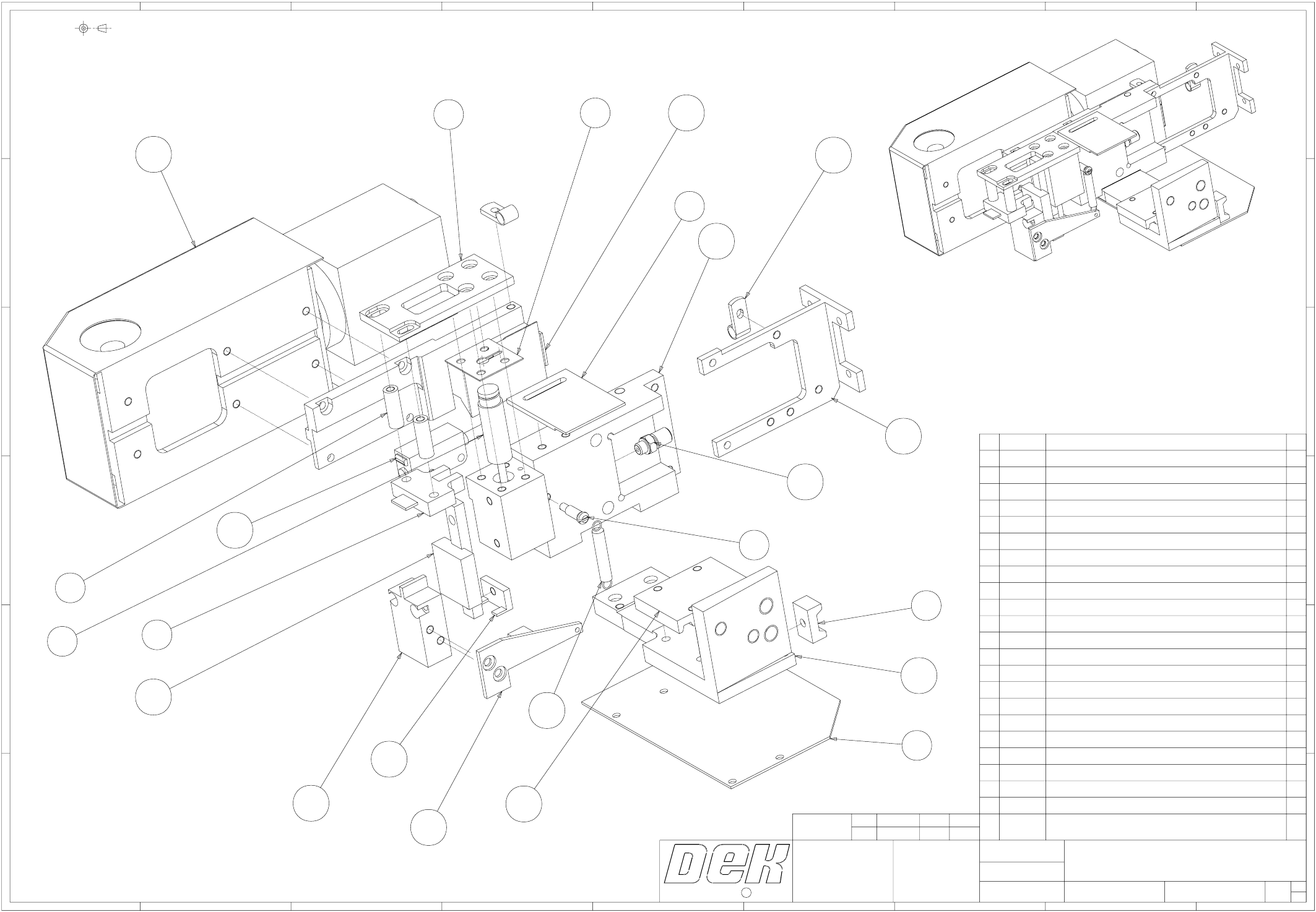

145011 Issue 4 Camera Mount GA
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
1999
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
107451 TOP PLATE 1
2
107452 SPRING POST 1
3
107458 OPTO 1
4
107645 GASKET 1
5
107850 MODIFIED CYLINDER 1
6
112256 OPTO SPACER CAMERA MOUNT 2
7
112414 CABLE TIE CLAMP 1
8
112511 VANE 1
9
112616 RIBBON PLATE 1
10
112788 SIDE PLATE 1
11
113080 BEARING 1
12
113163 BEARING STOP BRACKET 1
13
114758 SENSOR 1
14
119641 CAMERA PLUG BRKT. 1
15
119673 BOARD STOP 1
16
129325 'X' CAMERA BELT CLAMP 1
17
133045 DRAG CHAIN BRKT 1
18
140127 CAMERA MOUNT 2D 1
19
145230 SOFTWARE CAMERA, MOUNT 1
20
145550 CAMERA, GREEN, S'WARE CTRL LIGHTING 1
21
E0506 P CLIP 9-14MM 2
22
G0361 SPRING (AF2406 FLEXO) 1
23
G4346 CONN M-5H-4 1
ITEM PART NO. DESCRIPTION QTY.
1
107451 TOP PLATE 1
2
107452 SPRING POST 1
3
107458 OPTO 1
4
107645 GASKET 1
5
107850 MODIFIED CYLINDER 1
6
112256 OPTO SPACER CAMERA MOUNT 2
7
112414 CABLE TIE CLAMP 1
8
112511 VANE 1
9
112616 RIBBON PLATE 1
10
112788 SIDE PLATE 1
11
113080 BEARING 1
12
113163 BEARING STOP BRACKET 1
13
114758 SENSOR 1
14
119641 CAMERA PLUG BRKT. 1
15
119673 BOARD STOP 1
16
129325 'X' CAMERA BELT CLAMP 1
17
133045 DRAG CHAIN BRKT 1
18
140127 CAMERA MOUNT 2D 1
19
145230 SOFTWARE CAMERA, MOUNT 1
20
145550 CAMERA, GREEN, S'WARE CTRL LIGHTING 1
21
E0506 P CLIP 9-14MM 2
22
G0361 SPRING (AF2406 FLEXO) 1
23
G4346 CONN M-5H-4 1
LATEST
ISSUE
No. DATE DCR INITIAL
04
26-Feb-99
11952 PNH
3:2
N. PALMER
CAMERA MOUNT G.A. (S/W LIGHTING)
13-May-97
145011
145010
SH 1
OF 1
A
1
NOTE:
BOM STRUCTURE:
BOM No. 145010 CAMERA MOUNT, S/W LIGHTING
140401 P/TRAY
145012 M/TRAY
145013 F/TRAY
ITEMS NOT DETAILED
117424, TUBING O/D 4.0mm, 0.3M
129012, STANDARD LOCKING POST, 4 OFF
107650, STRAIGHT UNION (KQH04-00), 1 OFF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
17
SCALE 1:1
THIS DRAWING AND THE
COPYRIGHT IN IT, IS THE
PROPERTY OF DEK PRINTING
MACHINES LIMITED, IT MAY
NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN
WHOLE OR IN PART WITHOUT
OUR WRITTEN CONSENT.
Mechanical Drawings 9

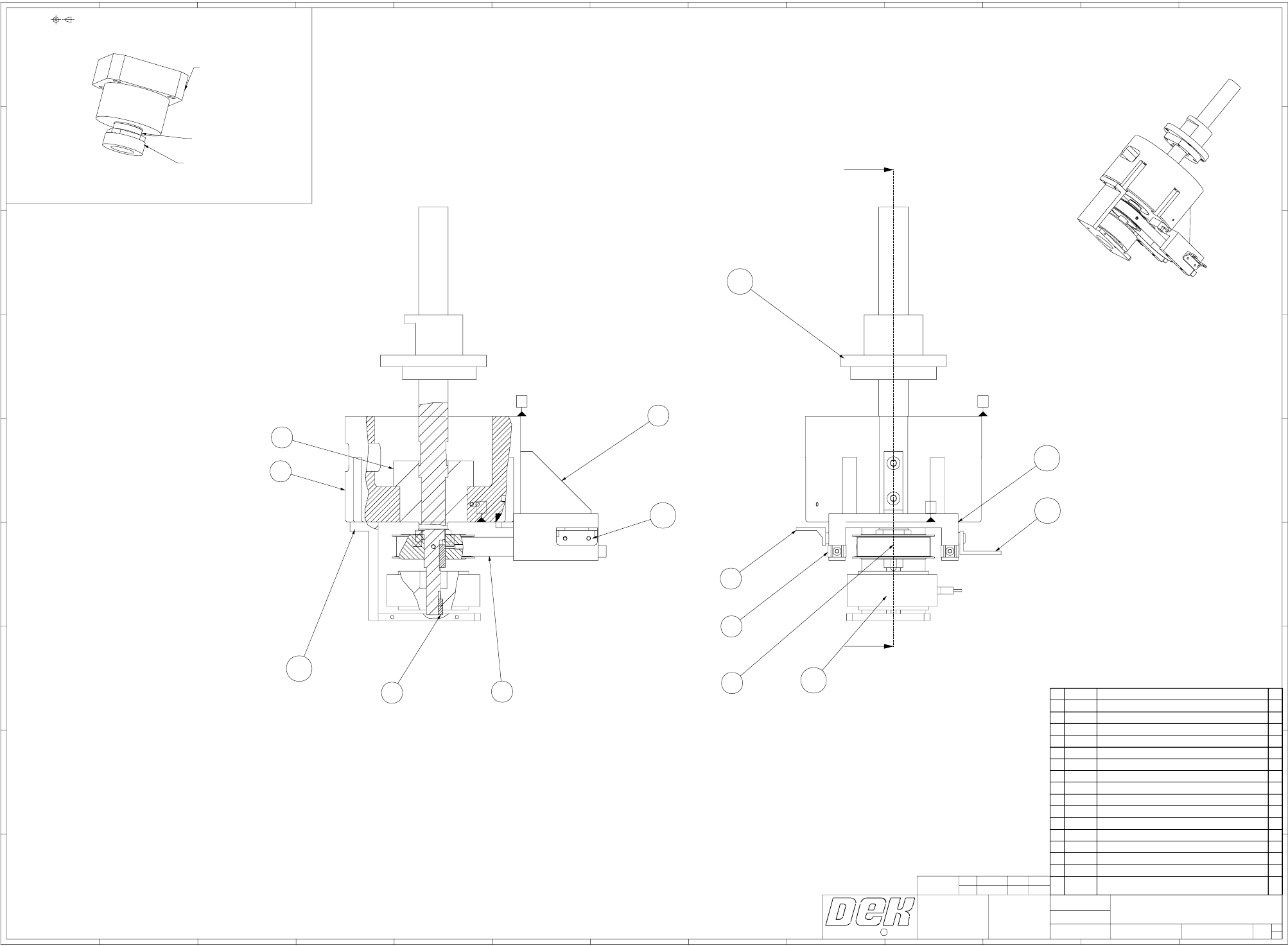

145370 Issue 3 Table Lift GA
54321
A
B
CC
B
A
12345
67
8
9 10
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
C
A
C
A
A
A
ITEM PART NO. DESCRIPTION QTY.
1
107041 TIMING PULLEY 1
2
107044 BEARING HOUSING 1
3
107380 TABLE BOSS 1
4
107381 TABLE MOTOR WEB 1
5
107508 TIMING BELT 1
6
112020 KEY 5MM 1
7
112414 CABLE TIE CLAMP 2
8
112503 KEY 4X4X13.5 1
9
117076 BRACKET 9 WAY `D' 1
10
117131 4 WAY TRIAD 1
11
117980 MOTOR 'U' PLATE 1
12
145311 LINK COLLAR - BALL SCREW NUT 1
13
157111 TABLE BRAKE BRAKET 1
14
160457 WARNER BRAKE 1
15
700658 WASHER SHOULDERED,NYLON 2
16
MAX 28 CHARACTERS 1
ITEM PART NO. DESCRIPTION QTY.
1
107041 TIMING PULLEY 1
2
107044 BEARING HOUSING 1
3
107380 TABLE BOSS 1
4
107381 TABLE MOTOR WEB 1
5
107508 TIMING BELT 1
6
112020 KEY 5MM 1
7
112414 CABLE TIE CLAMP 2
8
112503 KEY 4X4X13.5 1
9
117076 BRACKET 9 WAY `D' 1
10
117131 4 WAY TRIAD 1
11
117980 MOTOR 'U' PLATE 1
12
145311 LINK COLLAR - BALL SCREW NUT 1
13
157111 TABLE BRAKE BRAKET 1
14
160457 WARNER BRAKE 1
15
700658 WASHER SHOULDERED,NYLON 2
16
MAX 28 CHARACTERS 1
ITEM PART NO. DESCRIPTION QTY.
1
107041 TIMING PULLEY 1
2
107044 BEARING HOUSING 1
3
107380 TABLE BOSS 1
4
107381 TABLE MOTOR WEB 1
5
107508 TIMING BELT 1
6
112020 KEY 5MM 1
7
112414 CABLE TIE CLAMP 2
8
112503 KEY 4X4X13.5 1
9
117076 BRACKET 9 WAY `D' 1
10
117131 4 WAY TRIAD 1
11
117980 MOTOR 'U' PLATE 1
12
145311 LINK COLLAR - BALL SCREW NUT 1
13
157111 TABLE BRAKE BRAKET 1
14
160457 WARNER BRAKE 1
15
700658 WASHER SHOULDERED,NYLON 2
16
MAX 28 CHARACTERS 1
ITEM PART NO. DESCRIPTION QTY.
1
107041 TIMING PULLEY 1
2
107044 BEARING HOUSING 1
3
107380 TABLE BOSS 1
4
107381 TABLE MOTOR WEB 1
5
107508 TIMING BELT 1
6
112020 KEY 5MM 1
7
112414 CABLE TIE CLAMP 2
8
112503 KEY 4X4X13.5 1
9
117076 BRACKET 9 WAY `D' 1
10
117131 4 WAY TRIAD 1
11
117980 MOTOR 'U' PLATE 1
12
145311 LINK COLLAR - BALL SCREW NUT 1
13
157111 TABLE BRAKE BRAKET 1
14
160457 WARNER BRAKE 1
15
700658 WASHER SHOULDERED,NYLON 2
16
MAX 28 CHARACTERS 1
ITEM PART NO. DESCRIPTION QTY.
1
107041 TIMING PULLEY 1
2
107044 BEARING HOUSING 1
3
107380 TABLE BOSS 1
4
107381 TABLE MOTOR WEB 1
5
107508 TIMING BELT 1
6
112020 KEY 5MM 1
7
112414 CABLE TIE CLAMP 2
8
112503 KEY 4X4X13.5 1
9
117076 BRACKET 9 WAY `D' 1
10
117131 4 WAY TRIAD 1
11
117980 MOTOR 'U' PLATE 1
12
145311 LINK COLLAR - BALL SCREW NUT 1
13
157111 TABLE BRAKE BRAKET 1
14
160457 WARNER BRAKE 1
15
700658 WASHER SHOULDERED,NYLON 2
16
MAX 28 CHARACTERS 1
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
G. MARJASON
265 SERIES TABLE LIFT ASSY
14-Jan-98
145370
145371
SH 1
OF 1
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
03
}
11-JUN-01 26522
MJP
}
PART No.: 107044
DESCRIPTION: BEARING HOUSING
6
7
9
10
11
12
14
SECTION A-A
4
8
15
2
3
5
13
SCALE 1:2
SCALE 1:1
BEARING (NSK WBK 20-11)
SPACER
LOCKING BUSH
10 Mechanical Drawings

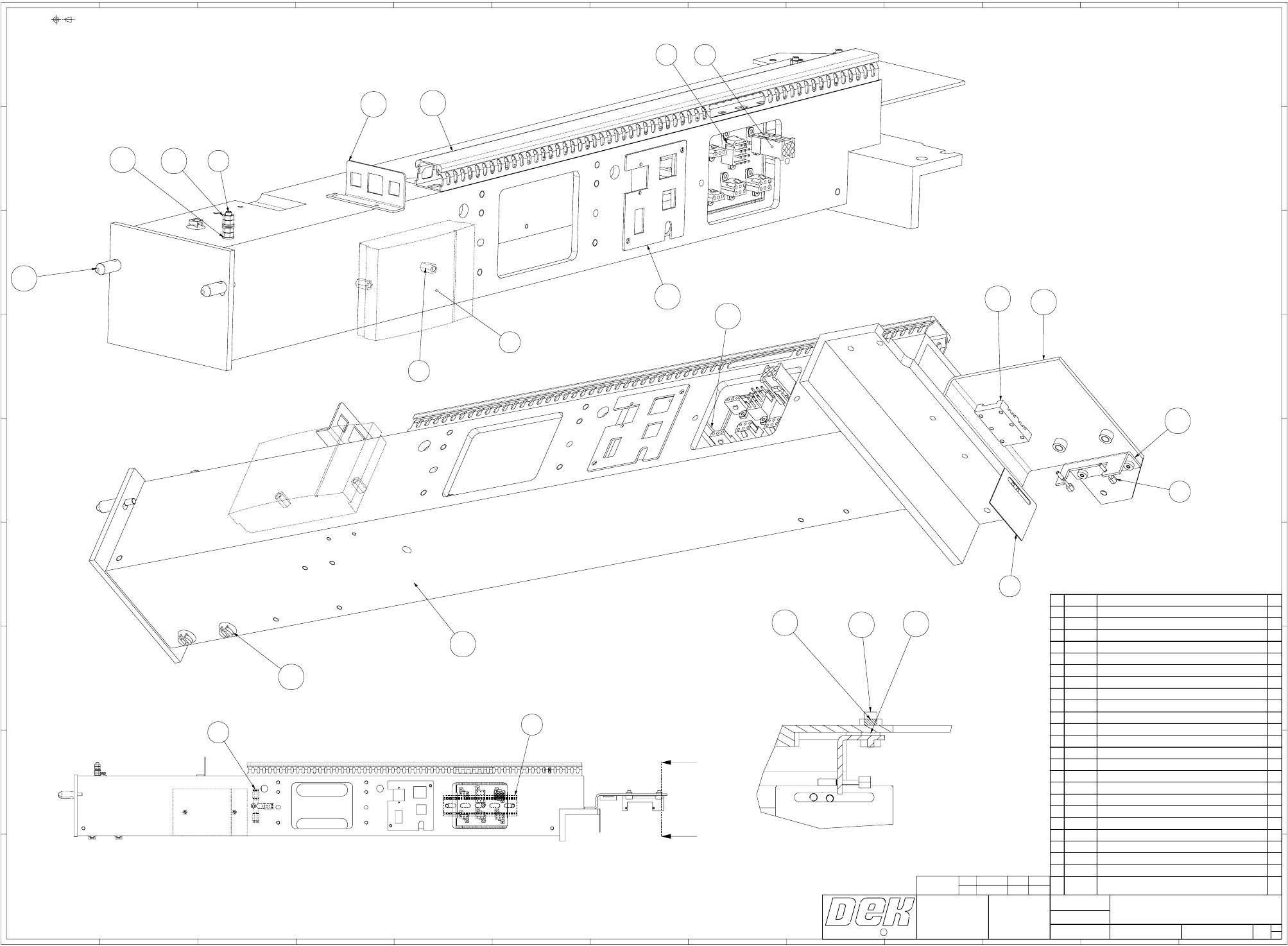

156002 Issue 4 Horizon Prinhead GA
54321
A
B
CC
B
A
12345
67
8
910
11 12
13
6
7
8
9
10 11
12
13
D
E
F
G
H
I
D
E
F
G
H
I
PROJECTION
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
A
A
ITEM PART NO. DESCRIPTION QTY.
1
112664 EARTHING STUD 2
2
115774 TEMP AND HUMIDITY SENSOR 1
3
119466 SPACER 12 LG 2
4
119543 EXTENDED LOCKING POST 2
5
129024 DIN RAIL 125 LG 1
6
137462 4MM TEE CONNECTOR (SELF SEAL) 1
7
155761 GA FOR BREAKOUT BOARD 'E' (155534) 1
8
155810 PLUG (CABLE) 6 WAY TRIDENT 1
9
156210 PRINT CARRIAGE HALL EFFECT VANE 1
10
156212 BELT CLAMP, 16mm 1
11
156215 CARRIAGE DRIVE BRACKET 1
12
156382 PUSH IN BASE & TIE 3
13
156395 BRACKET, 3 WAY, TOP 1
14
156396 BRACKET, INTERNAL 1
15
156405 PILLAR 2
16
156420 CONNECTOR PANEL 1
17
156463 TRUNKING 1
18
165460 PIN, FABRICATED PRINT CARRIAGE 2
19
165507 PRINT CARRIAGE, FABRICATED 1
20
700103 SCREW M3X12 CAP HD ST.ST 2
21
700526 NUT M5 FULL BRASS 8
22
700657 WASHER PLASTIC 2
23
700658 WASHER SHOULDERED,NYLON 2
24
G5120 WASHER M5 BRASS FORM B 6
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
R PIATEK
HORIZON PRINT CARRIAGE, ASM
15-Feb-99
SH 1
OF 1
A
0
ITEM PART NO. DESCRIPTION QTY.
1
112664 EARTHING STUD 2
2
115774 TEMP AND HUMIDITY SENSOR 1
3
119466 SPACER 12 LG 2
4
119543 EXTENDED LOCKING POST 2
5
129024 DIN RAIL 125 LG 1
6
137462 4MM TEE CONNECTOR (SELF SEAL) 1
7
155761 GA FOR BREAKOUT BOARD 'E' (155534) 1
8
155810 PLUG (CABLE) 6 WAY TRIDENT 1
9
156210 PRINT CARRIAGE HALL EFFECT VANE 1
10
156212 BELT CLAMP, 16mm 1
11
156215 CARRIAGE DRIVE BRACKET 1
12
156382 PUSH IN BASE & TIE 3
13
156395 BRACKET, 3 WAY, TOP 1
14
156396 BRACKET, INTERNAL 1
15
156405 PILLAR 2
16
156420 CONNECTOR PANEL 1
17
156463 TRUNKING 1
18
165460 PIN, FABRICATED PRINT CARRIAGE 2
19
165507 PRINT CARRIAGE, FABRICATED 1
20
700103 SCREW M3X12 CAP HD ST.ST 2
21
700526 NUT M5 FULL BRASS 8
22
700657 WASHER PLASTIC 2
23
700658 WASHER SHOULDERED,NYLON 2
24
G5120 WASHER M5 BRASS FORM B 6
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
R PIATEK
HORIZON PRINT CARRIAGE, ASM
SH 1
OF 1
A
0
ITEM PART NO. DESCRIPTION QTY.
1
112664 EARTHING STUD 2
2
115774 TEMP AND HUMIDITY SENSOR 1
3
119466 SPACER 12 LG 2
4
119543 EXTENDED LOCKING POST 2
5
129024 DIN RAIL 125 LG 1
6
137462 4MM TEE CONNECTOR (SELF SEAL) 1
7
155761 GA FOR BREAKOUT BOARD 'E' (155534) 1
8
155810 PLUG (CABLE) 6 WAY TRIDENT 1
9
156210 PRINT CARRIAGE HALL EFFECT VANE 1
10
156212 BELT CLAMP, 16mm 1
11
156215 CARRIAGE DRIVE BRACKET 1
12
156382 PUSH IN BASE & TIE 3
13
156395 BRACKET, 3 WAY, TOP 1
14
156396 BRACKET, INTERNAL 1
15
156405 PILLAR 2
16
156420 CONNECTOR PANEL 1
17
156463 TRUNKING 1
18
165460 PIN, FABRICATED PRINT CARRIAGE 2
19
165507 PRINT CARRIAGE, FABRICATED 1
20
700103 SCREW M3X12 CAP HD ST.ST 2
21
700526 NUT M5 FULL BRASS 8
22
700657 WASHER PLASTIC 2
23
700658 WASHER SHOULDERED,NYLON 2
24
G5120 WASHER M5 BRASS FORM B 6
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
R PIATEK
HORIZON PRINT CARRIAGE, ASM
156002 156311
SH 1
OF 1
A
0
LATEST
ISSUE
No. DATE DCR INITIAL
04 30-Jan-02 27250 MGS
1
13
16
17
21
24
8
7
18
2
3
9
10
11
12
14
15
4
19
5
SCALE 1:2
6
22
23
SECTION A-A
SCALE 2:1
20
