Mechanical Drawings 29 171227 Issue 1 T ransfer Head Dual Chamber 350mm Rechargea ble F E D C B A 6 5 4 3 2 1 E F 9 8 7 1 2345678 9 PROJECTION D C B A DRAWN APPROVED DATE C COPYRIGHT DO NOT SCALE SCALE TITLE DRAWING NUMB…

100%1 / 68

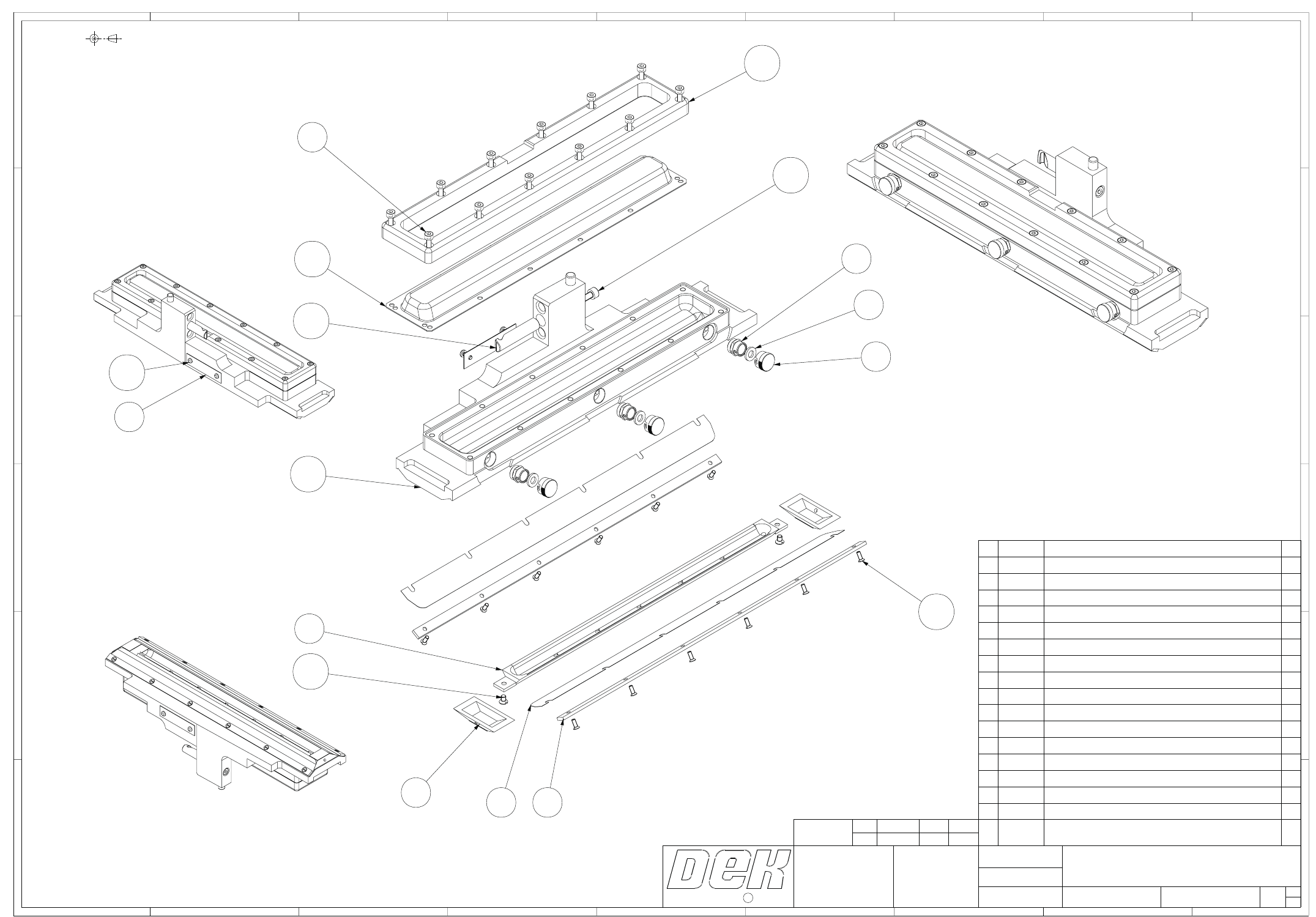

28 Mechanical Drawings
171226 Issue 3 Transfer Head Dual Chamber 300mm Rechargeable
F
E
D
C
B
A
654321
E
F
987
1 23456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2001
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137447 BLADE RETAINER STRIP 2
2
137577 LABEL, NOVATEC, SMALL 1
3
137660 SKI, HOLED 2
4
137682 SCREW, M4 WAISTED 12
5
137817 FITTING, BAYONET 3
6
137818 CAP, BAYONET 3
7
137826 RUBBER SEAL 3
8
137925 NOZZLE^TRANFER HD^D/C^PROFLOW^300 1
9
137964 METAL ETCHED WIPERS 8/12 2
10
171059 DIAPHRAGM 110° 300 MM 1
11
171130 HOOK^PROFLOW^^ 1
12
171160 RETAINER^DIAPH^300^D/C PROFLOW 1
13
171167 CHASSIS^DC^RC300^H/MOUNT 1
14
700118 SCREW M5X25 CAP HD ST.ST 1
15
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
16
700404 SCREW M4X6 CSK.SLTD.M/C ST.ST 2
17
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
03 20-Feb-02 27288 TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
T.HONNOR
TRANSFER HEAD^DC^300RC^H/MOUNT
08-Oct-01
171226
171181
SH 1
OF 1
A
1
SCALE 3:4
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
SCALE 3:4
SCALE 1:2
SCALE 1:2
2
17

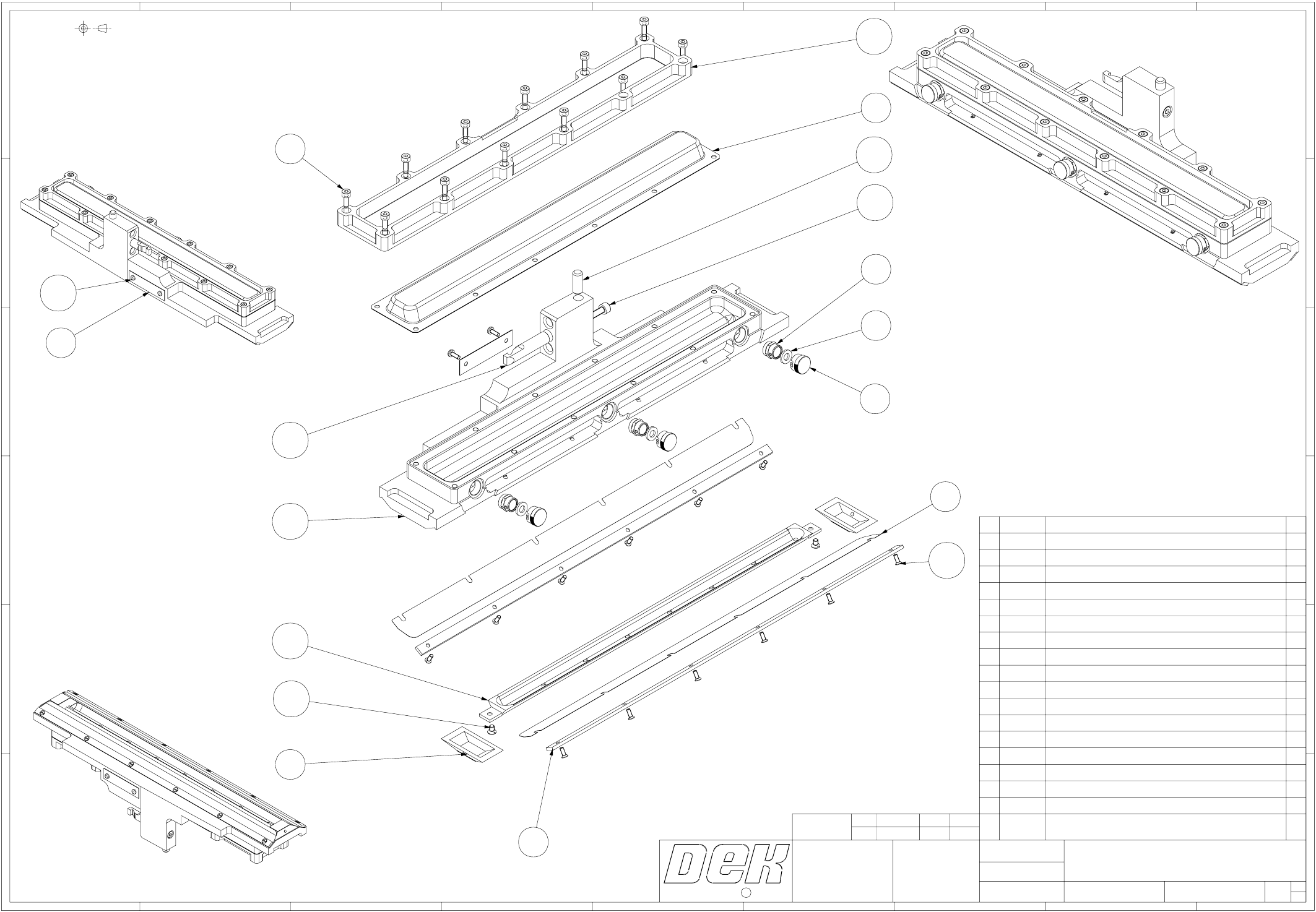

Mechanical Drawings 29
171227 Issue 1 Transfer Head Dual Chamber 350mm Rechargeable
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137506 BLADE RETAINER STRIP, 350 CAVITY 2
2
137577 LABEL, NOVATEC, SMALL 1
3
137660 SKI, HOLED 2
4
137682 SCREW, M4 WAISTED 12
5
137817 FITTING, BAYONET 3
6
137818 CAP, BAYONET 3
7
137826 RUBBER SEAL 3
8
137965 METAL ETCHED WIPERS Ti 8/12 2
9
171058 DIAPHRAGM 110° 350 MM 1
10
171070 NOZZLE^TRANSFER HD^D/C PROFLOW^350 1
11
171130 HOOK 1
12
171161 RETAINER^DIAPH^350^D/C PROFLOW 1
13
171174 CHASSIS^DC^RC350^H/MOUNT 1
14
700118 SCREW M5X25 CAP HD ST.ST 1
15
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
16
700404 SCREW M4X6 CSK.SLTD.M/C ST.ST 2
17
700771 DOWEL 8DIA X 20LG GRD 1 1
18
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
01 08-Oct-01 +++ TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
T.HONNOR
TRANSFER HEAD^DC^350RC^H/MOUNT
08-Oct-01
171227
171182
SH 1
OF 1
A
1
SCALE 3:4
3
4
5
6
7
11
13
14
15
16
17
1
8
9
10
12
SCALE 3:4
SCALE 1:2
SCALE 1:2
2
18

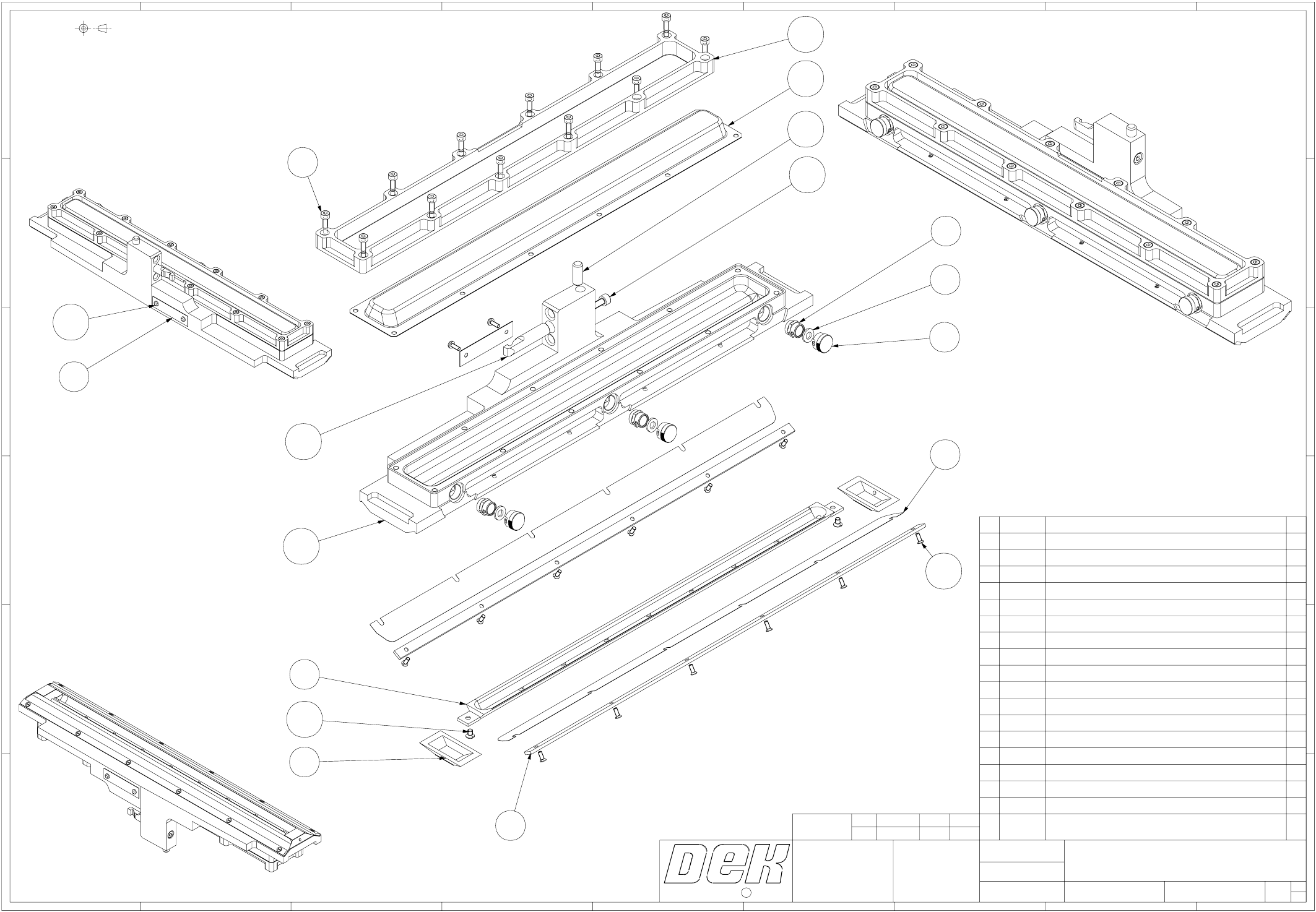

30 Mechanical Drawings
171228 Issue 1 Transfer Head Dual Chamber 400mm Rechargeable
F
E
D
C
B
A
654321
E
F
987
123456789
PROJECTION
D
C
B
A
DRAWN
APPROVED
DATE
C
COPYRIGHT
DO NOT SCALE
SCALE
TITLE
DRAWING NUMBER
2000
BOM NUMBER
ITEM PART NO. DESCRIPTION QTY.
1
137564 BLADE RETAINER STRIP, 400 2
2
137577 LABEL, NOVATEC, SMALL 1
3
137660 SKI, HOLED 2
4
137682 SCREW, M4 WAISTED 12
5
137817 FITTING, BAYONET 3
6
137818 CAP, BAYONET 3
7
137826 RUBBER SEAL 3
8
137927 NOZZLE^TRANSFER HD^D/C PROFLOW^400 1
9
137966 METAL ETCHED WIPERS Ti 8/12 2
10
171057 DIAPHRAGM 110 ° 400 MM 1
11
171130 HOOK 1
12
171162 RETAINER^DIAPH^400^D/C PROFLOW 1
13
171168 CHASSIS^DC^RC400^H/MOUNT 1
14
700118 SCREW M5X25 CAP HD ST.ST 1
15
700402 SCREW M3X8 CSK.SLTD.M/C ST.ST 12
16
700404 SCREW M4X6 CSK.SLTD.M/C ST.ST 2
17
700771 DOWEL 8DIA X 20LG GRD 1 1
18
701011 SCREW M3X8 PAN POZI TRI TAP (ST/ZINC/CLR) 2
LATEST
ISSUE
No. DATE DCR INITIAL
01 08-Oct-01 +++ TH
THIS DRAWING AND THE COPYRIGHT
IN IT, IS THE PROPERTY OF
DEK PRINTING MACHINES LIMITED
IT MAY NOT BE COPIED, REPRODUCED,
PUBLISHED OR DISCLOSED IN WHOLE
OR IN PART WITHOUT OUR WRITTEN
CONSENT.
1:1
T.HONNOR
TRANSFER HEAD^DC^400RC^H/MOUNT
08-Oct-01
171228
171183
SH 1
OF 1
A
1
SCALE 3:4
3
4
5
6
7
11
13
14
15
16
17
1
8
9
10
12
SCALE 3:4
SCALE 1:2
SCALE 1:2
2
18
