TX系列贴片机机台半年保养手册 - 第15页
1 WF 3 TX-Series Maintenance Check the head status of the CPPx to be maintained 5 min 1 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a …
www.asm-smt.com
1 WF 3 TX-Series Maintenance Check the head status of the CPPx to be maintained 5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com

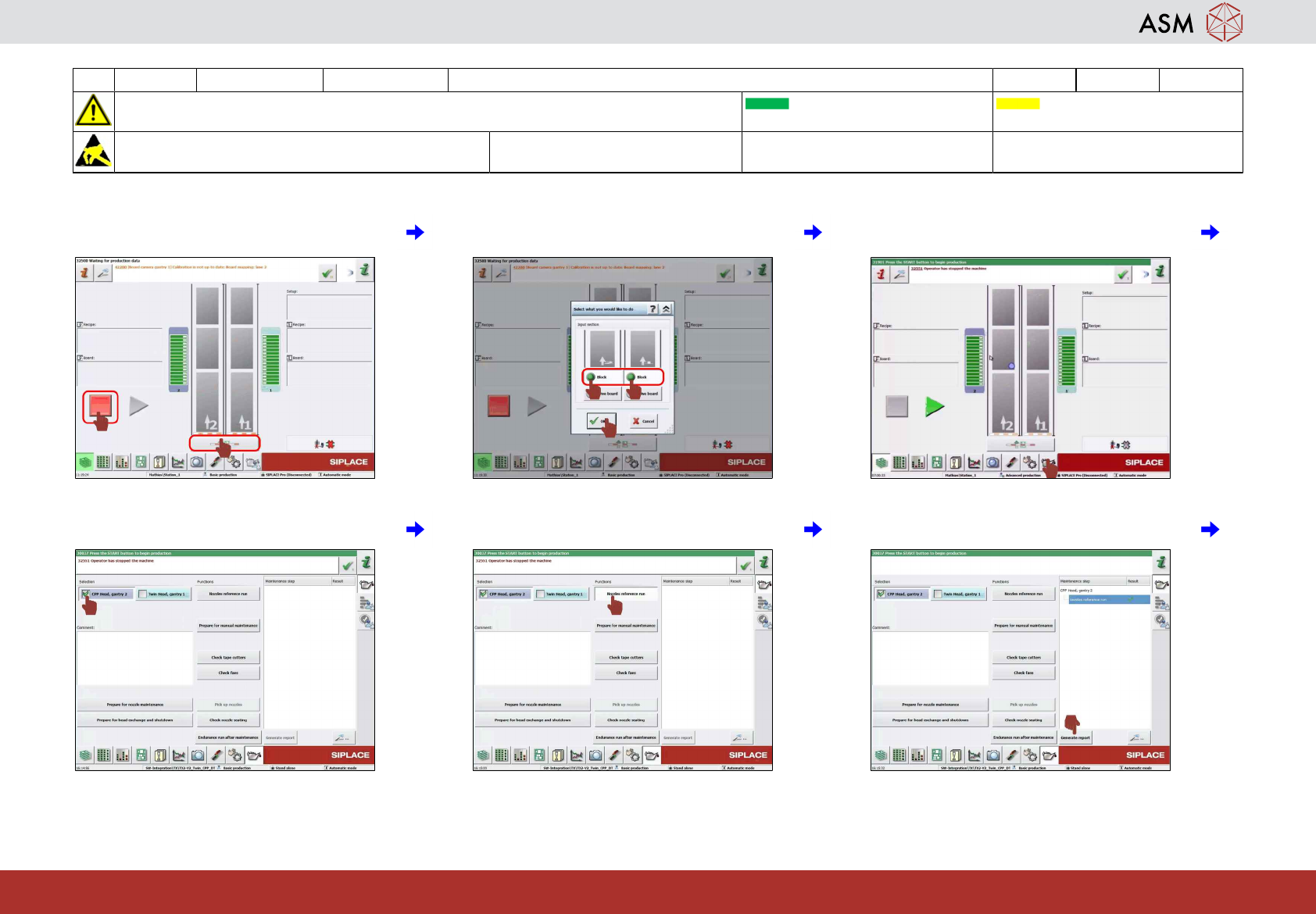

1 Stop the production and click on "Block
conveyor".
2 Block both lanes and click on "OK". 3 Click on "Maintenance".
4 Select the CPPx head to be maintained. 5 Click on "Nozzle reference run". 6 Click on "Generate report".
1 WF 3 TX-Series Maintenance Check the head status of the CPPx to be maintained 5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
7 Enter required information and click on
"Save".
