TX系列贴片机机台半年保养手册 - 第17页
2 WF 3 TX-Series Maintenance Shut down, remove all tables (COT) and exchange all nozzles 4 min 1 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i…
1 WF 3 TX-Series Maintenance Check the head status of the CPPx to be maintained 5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
7 Enter required information and click on
"Save".
2 WF 3 TX-Series Maintenance Shut down, remove all tables (COT) and exchange all nozzles 4 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W2, W58
Consumables:
www.asm-smt.com

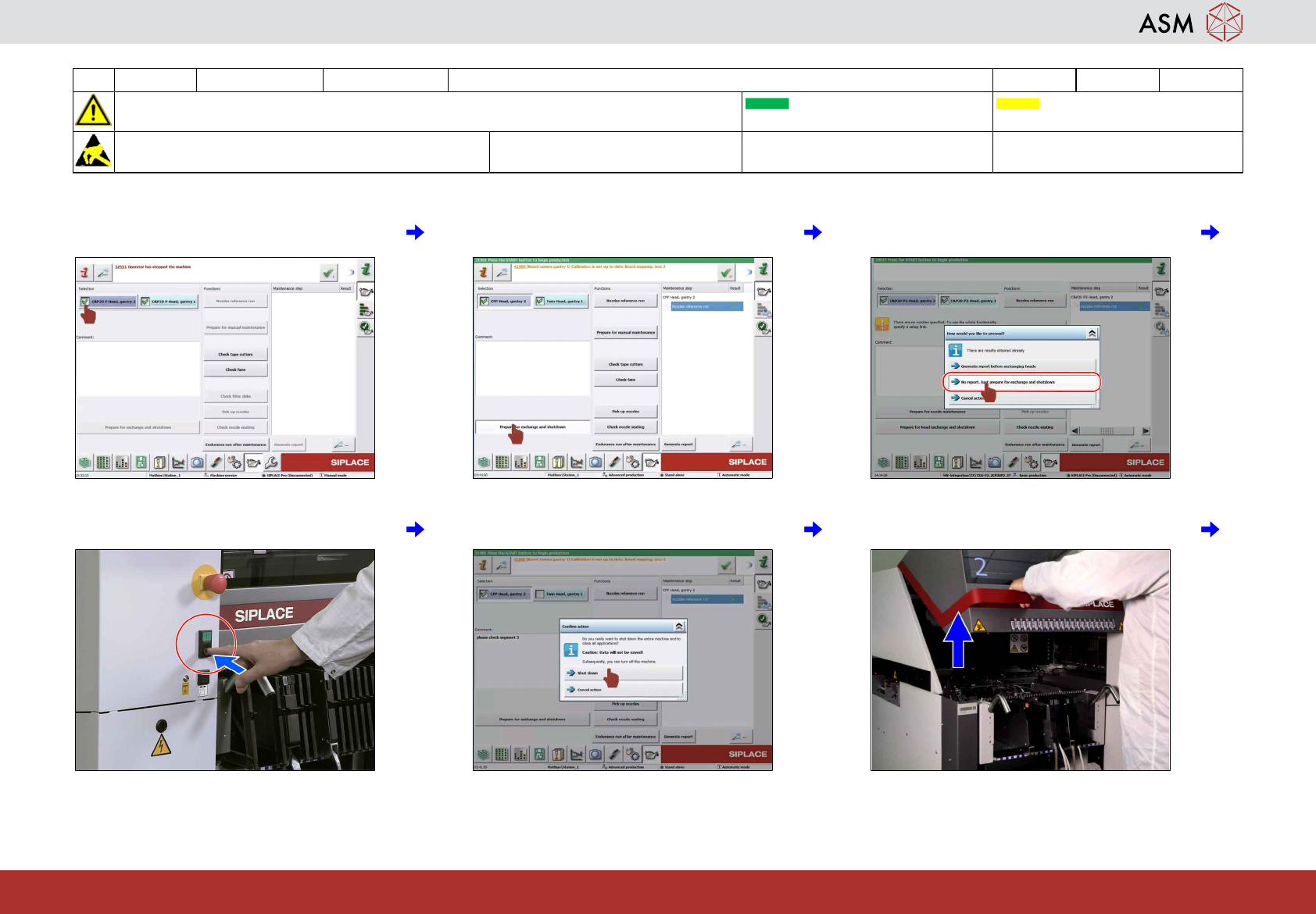

1 Select all heads. 2 Click on "Prepare for exchange and shut-
down".
3 Click on "No report, just prepare for ex-
change and shutdown", if required.
4 Press the stop button. 5 Click on "Shut down". 6 Open the covers.
2 WF 3 TX-Series Maintenance Shut down, remove all tables (COT) and exchange all nozzles 4 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W2, W58
Consumables:
www.asm-smt.com
7 Press the remove COT button. 8 Remove all COT. 9 Switch off the machine when prompted.
10 Switch on the interior light. 11 Remove all nozzle magazines equipped
with ceramic nozzles.
12 Return all nozzle magazines equipped
with maintained ceramic nozzles.
