6 WF 3 TX-Series Maintenance Clean the Z-Axis of the remaining C&P20x heads 2 min 1 / 1 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a …

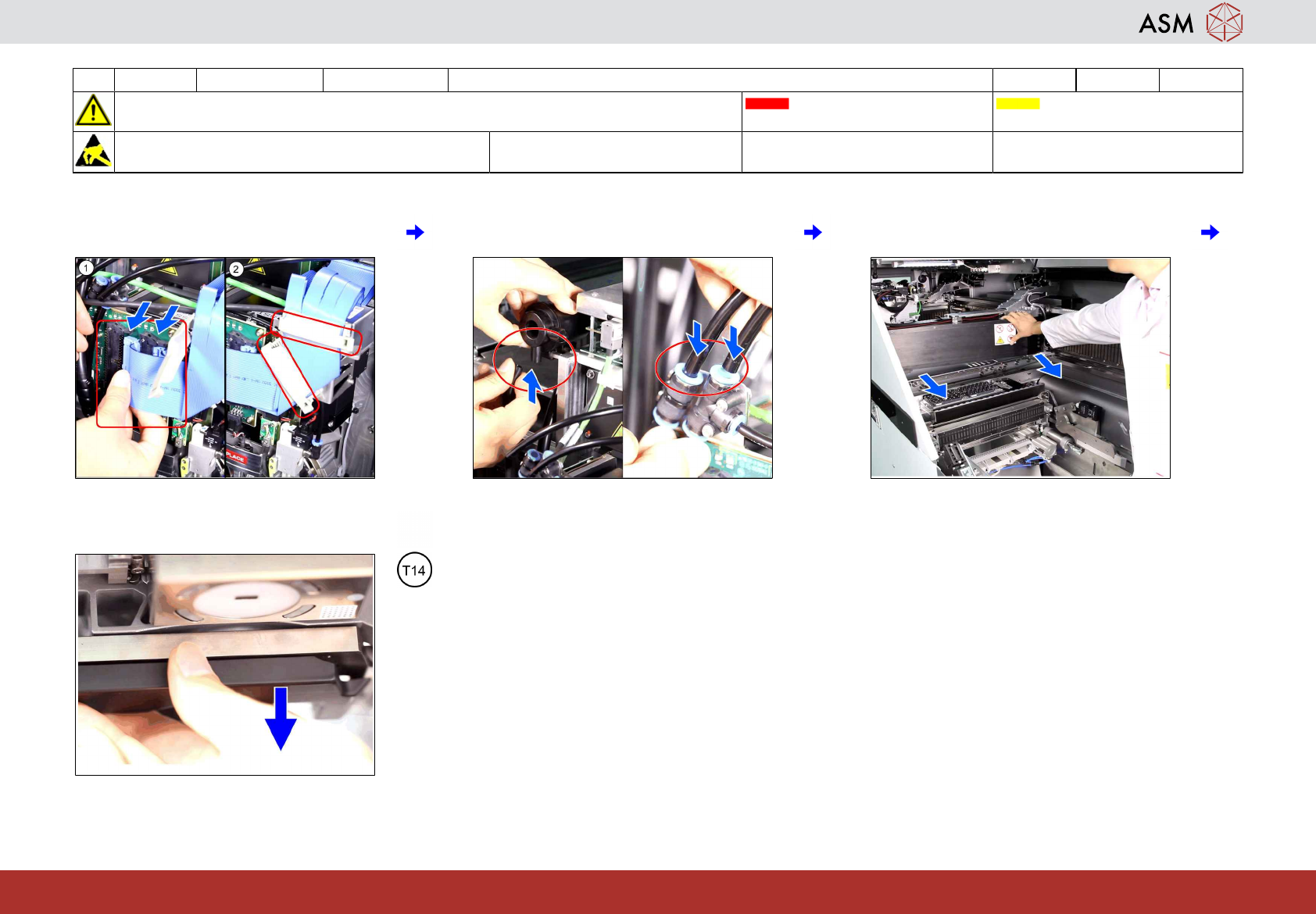

5 WF 3 TX-Series Maintenance Return a maintained CPPx head 8 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T7, T8, T9, T14, T58
Wear Part: Consumables:
www.asm-smt.com
7 Connect the ribbon cables (1) and close
the two clips (2).
8 Connect the exhaust air and the two com-
pressed air connections.
9 Move the gantry with the maintained head
to the end limit.
10 Remove the components sensor protec-
tion.

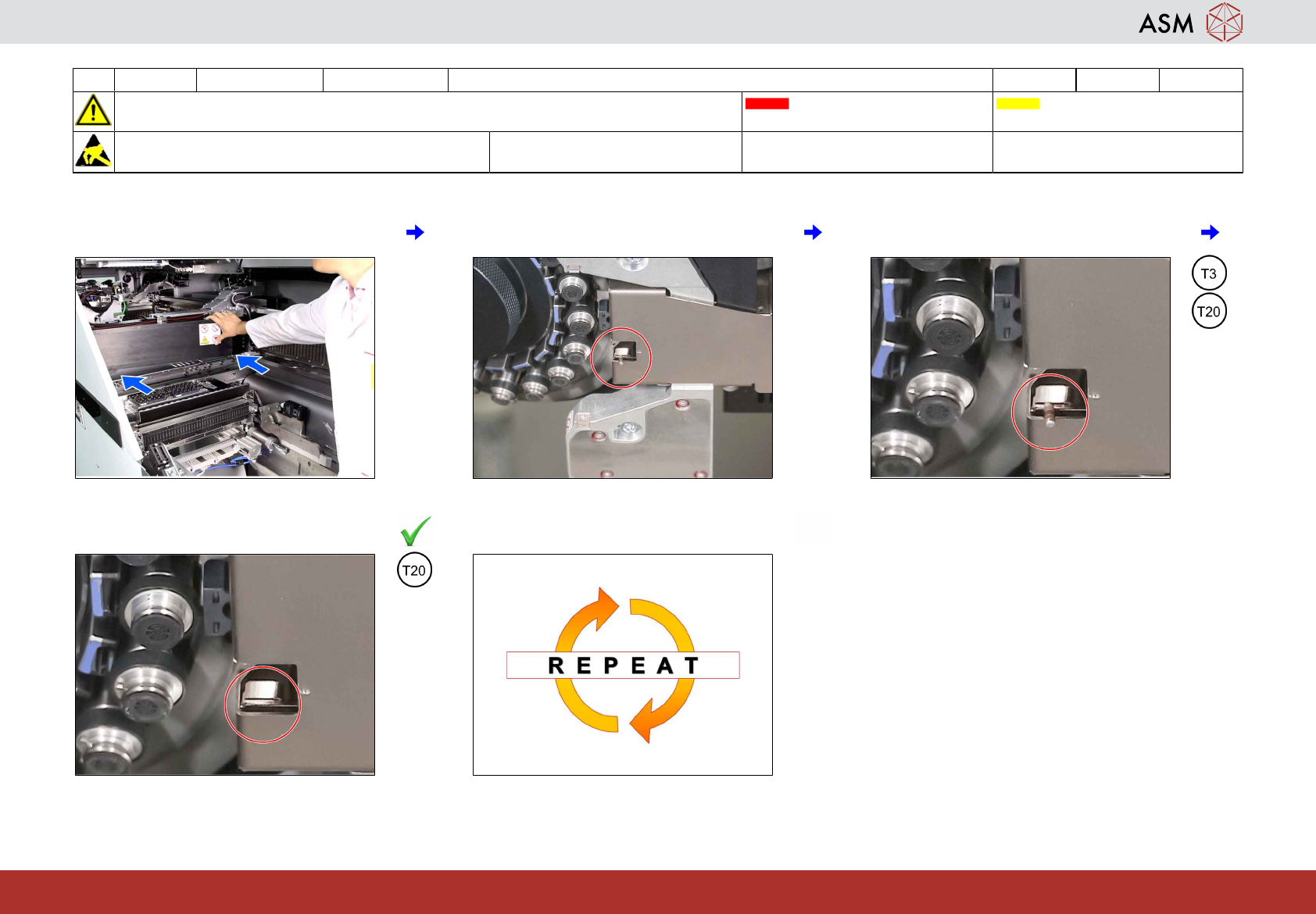

6 WF 3 TX-Series Maintenance Clean the Z-Axis of the remaining C&P20x heads 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T3, T20
Wear Part: Consumables:
www.asm-smt.com
1 Move all gantries to the end limit for the
heads remaining in the machine.
2 Area of the head to be cleaned. 3 Remove any components from the Z-Axis.
4 If OK → next task. 5 Repeat steps 1 to 4 for the remaining
heads.
