10 WF 3 TX-Series Maintenance Clean / replace the head exhaust filter 5 min 2 / 2 C A U T I O N ! R e f e r t o s a f e t y i n s t r u c t i o n s i n u s e r m a n u a l b e f o r e c o m m e n c i n g M a i n t e n …
10 WF 3 TX-Series Maintenance Clean / replace the head exhaust filter 5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31
Wear Part:
W21
Consumables:
C19
www.asm-smt.com

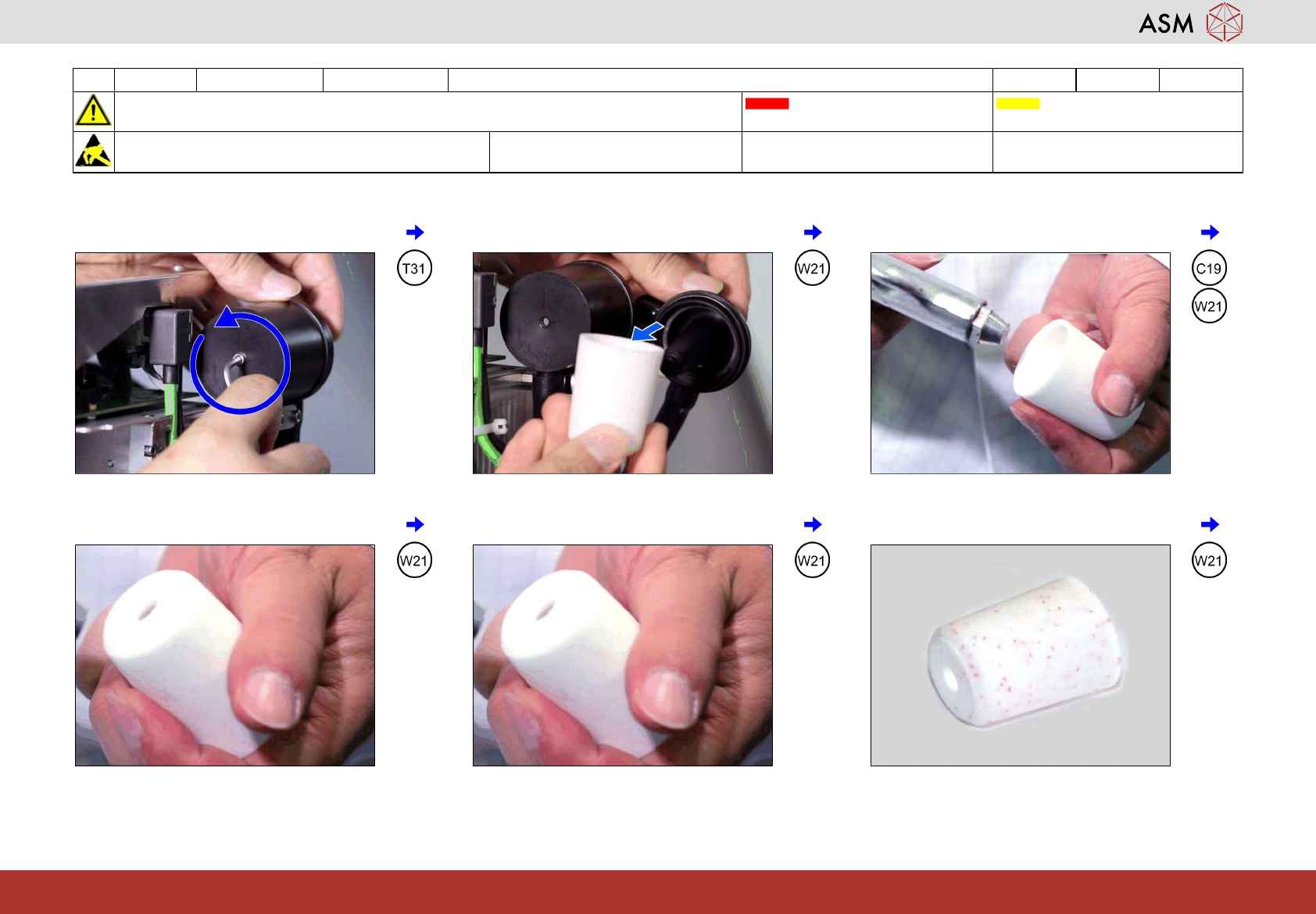

1 Loosen the screw. 2 Take out the filter. 3 Blast out the dirt.
4 Check if the filter is clean. 5 If OK go to step 7. 6 If NOT OK replace it with a new one.
10 WF 3 TX-Series Maintenance Clean / replace the head exhaust filter 5 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31
Wear Part:
W21
Consumables:
C19
www.asm-smt.com

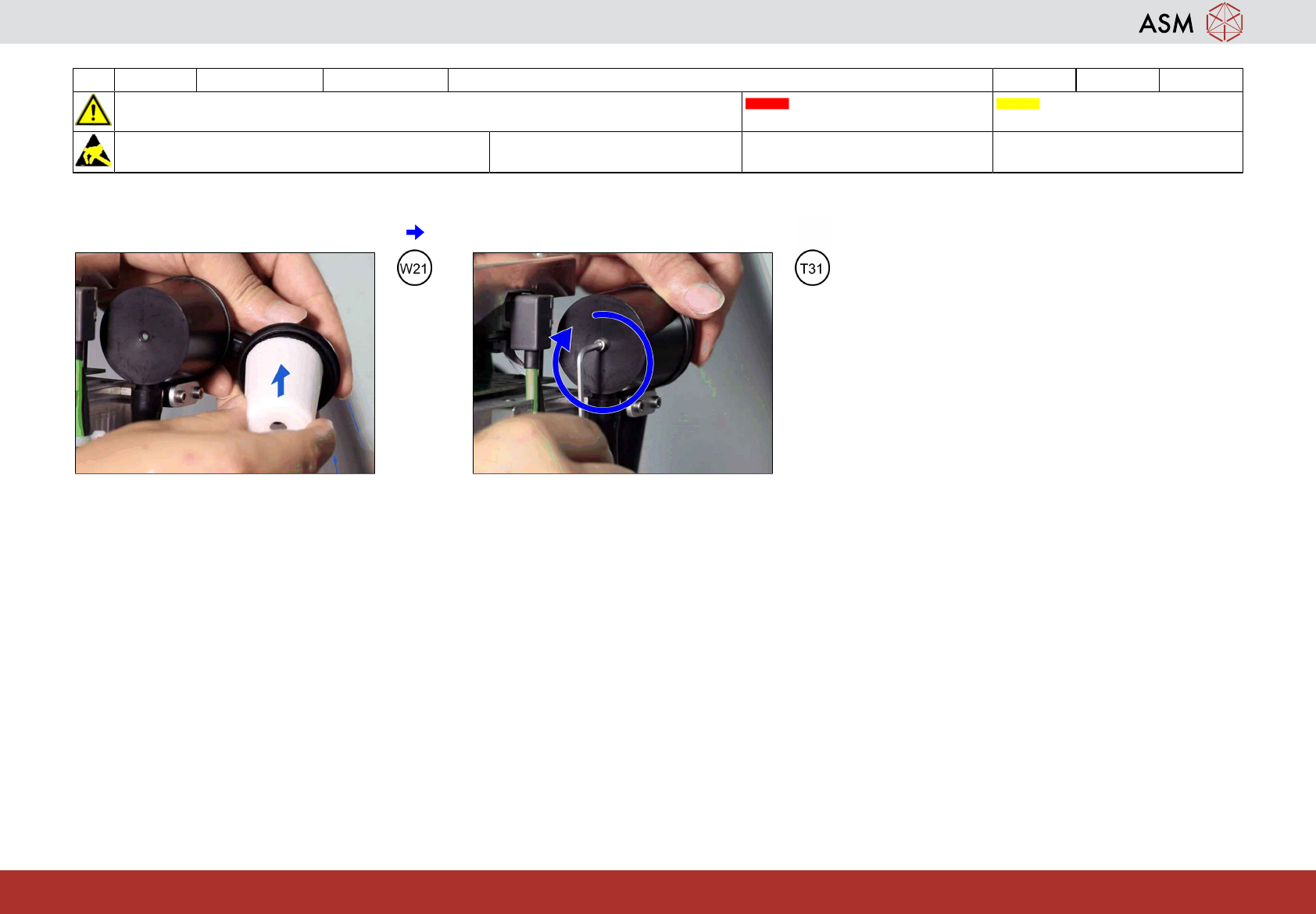

7 Return the filter. 8 Fix the screw.
11 WF 3 TX-Series Maintenance Check / replace compressed air filter 3 min 1 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W20
Consumables:
www.asm-smt.com
1 If necessary unscrew and remove the side
panel cover.
2 Turn off the air and push the lever to hori-
zontal.
3 Turn the activator until the knurled head
screw is even to the housing.
4 Check the complete venting of the system
before proceeding.
5 Remove the container. 6 Unscrew the filter.
