11 WF 3 TX-Series Maintenance Check / replace compressed air filter 3 min 3 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W20
Consumables:
www.asm-smt.com

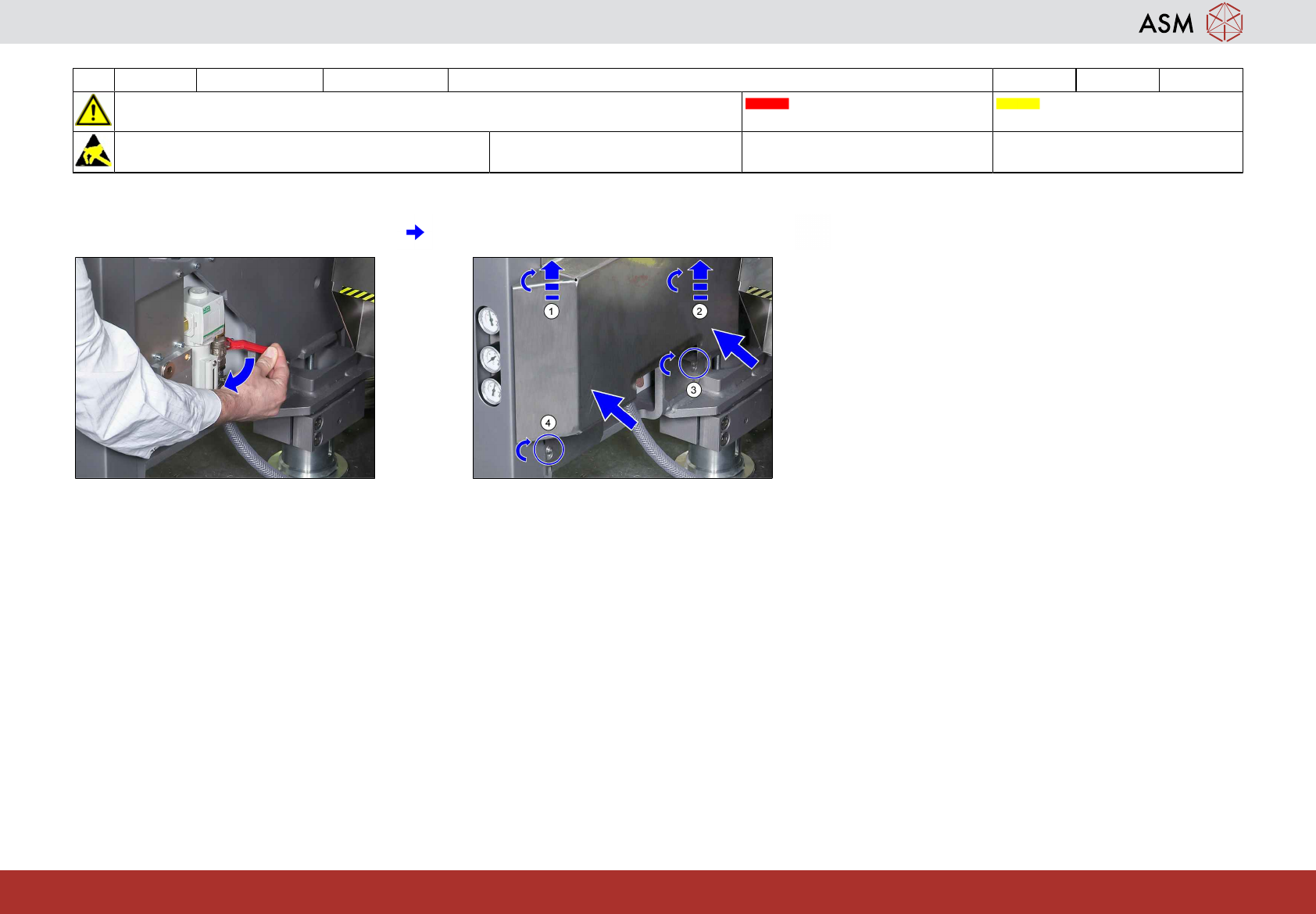

13 Open the lever. 14 If necessary return and screw on the side
panel cover.
www.asm-smt.com
12 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 1 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T56, T89, T90
Wear Part: Consumables:
C03, C26, C31, C49
www.asm-smt.com
1 Pull back the plunger to the lock. 2 Unscrew the top section. 3 Prepare the grease cartridge.
4 Insert the grease cartridge into the grease
gun.
5 Close the grease gun. 6 Mount the hose with the hydraulic mouth-
piece Y-Axis.
