12 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 1 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T56, T89, T90
Wear Part: Consumables:
C03, C26, C31, C49
www.asm-smt.com

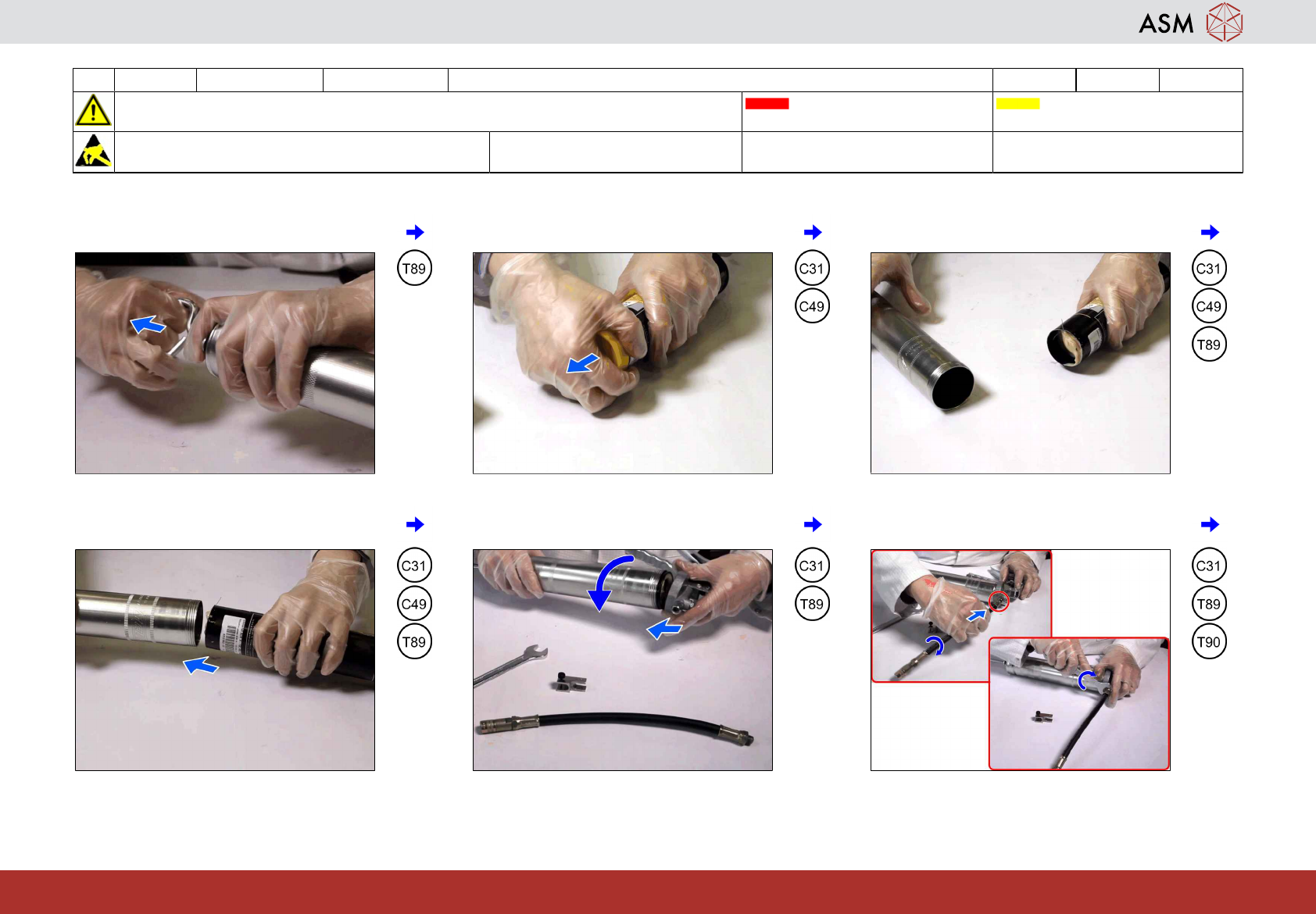

1 Pull back the plunger to the lock. 2 Unscrew the top section. 3 Prepare the grease cartridge.
4 Insert the grease cartridge into the grease
gun.
5 Close the grease gun. 6 Mount the hose with the hydraulic mouth-
piece Y-Axis.
12 WF 3 TX-Series Maintenance Maintain the tape cutter 15 min 2 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T31, T34, T56, T89, T90
Wear Part: Consumables:
C03, C26, C31, C49
www.asm-smt.com
7 Loosen the lock. 8 Push back the ball on the vent screw. 9 Press the trigger until grease comes out.
10 Remove the grease. 11 Move the gantries to the middle. 12 Loosen the fastening screws.
