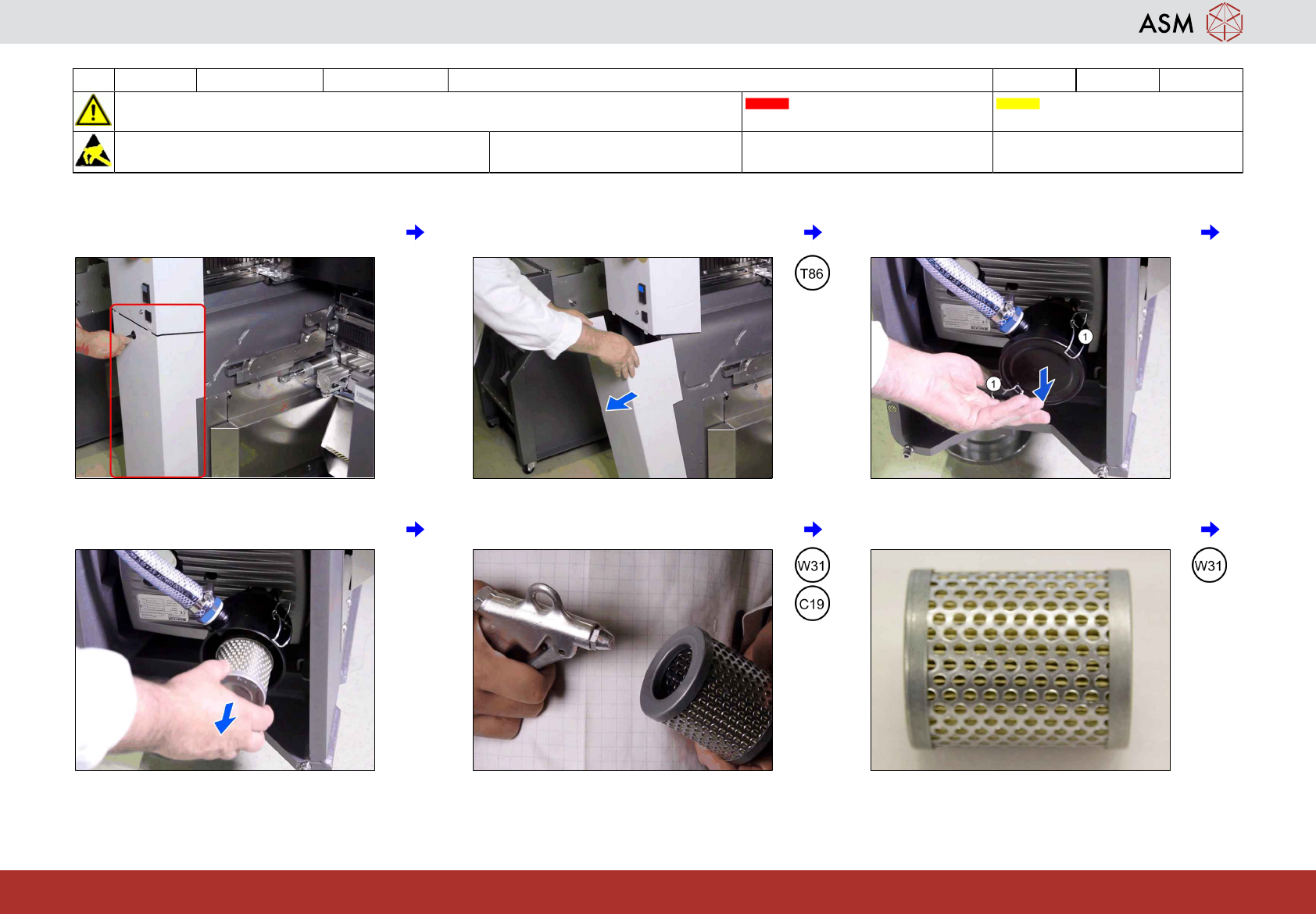

13 WF 3 TX-Series Maintenance Check / replace the vacuum pump filter disk 4 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T86
Wear Part:
W31
Consumables:
C19
www.asm-smt.com
1 Location of the vacuum pump. 2 Open and remove the panel. 3 Open the edgewise retaining clamp (1)
and remove the cap.
4 Remove the vacuum filter. 5 Clean the vacuum filter. 6 If OK go to step 8.

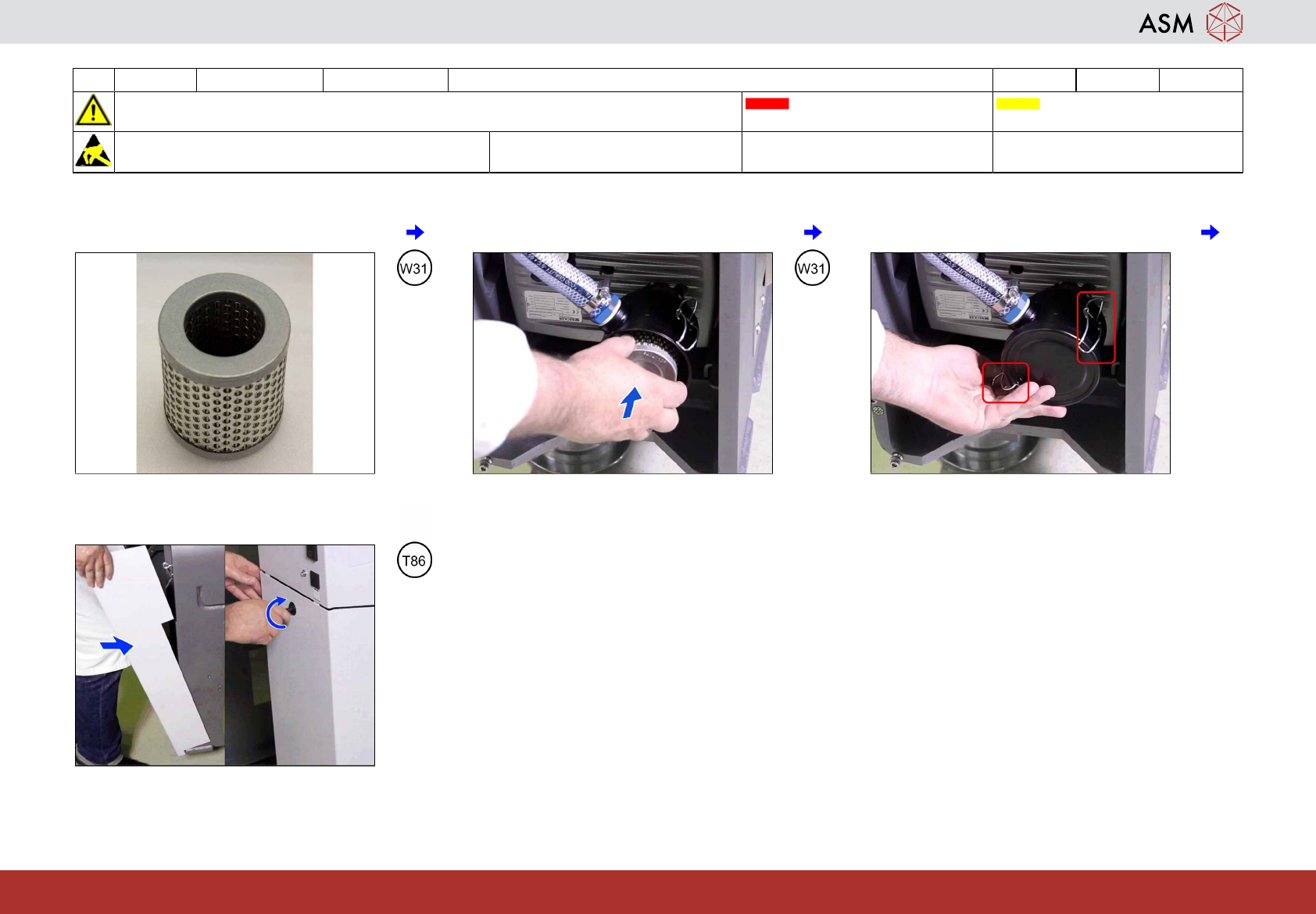

13 WF 3 TX-Series Maintenance Check / replace the vacuum pump filter disk 4 min 2 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T86
Wear Part:
W31
Consumables:
C19
www.asm-smt.com
7 If NOT OK exchange the filter. 8 Return the vacuum filter. 9 Lock the edgewise retaining clamp.
10 Close the panel.

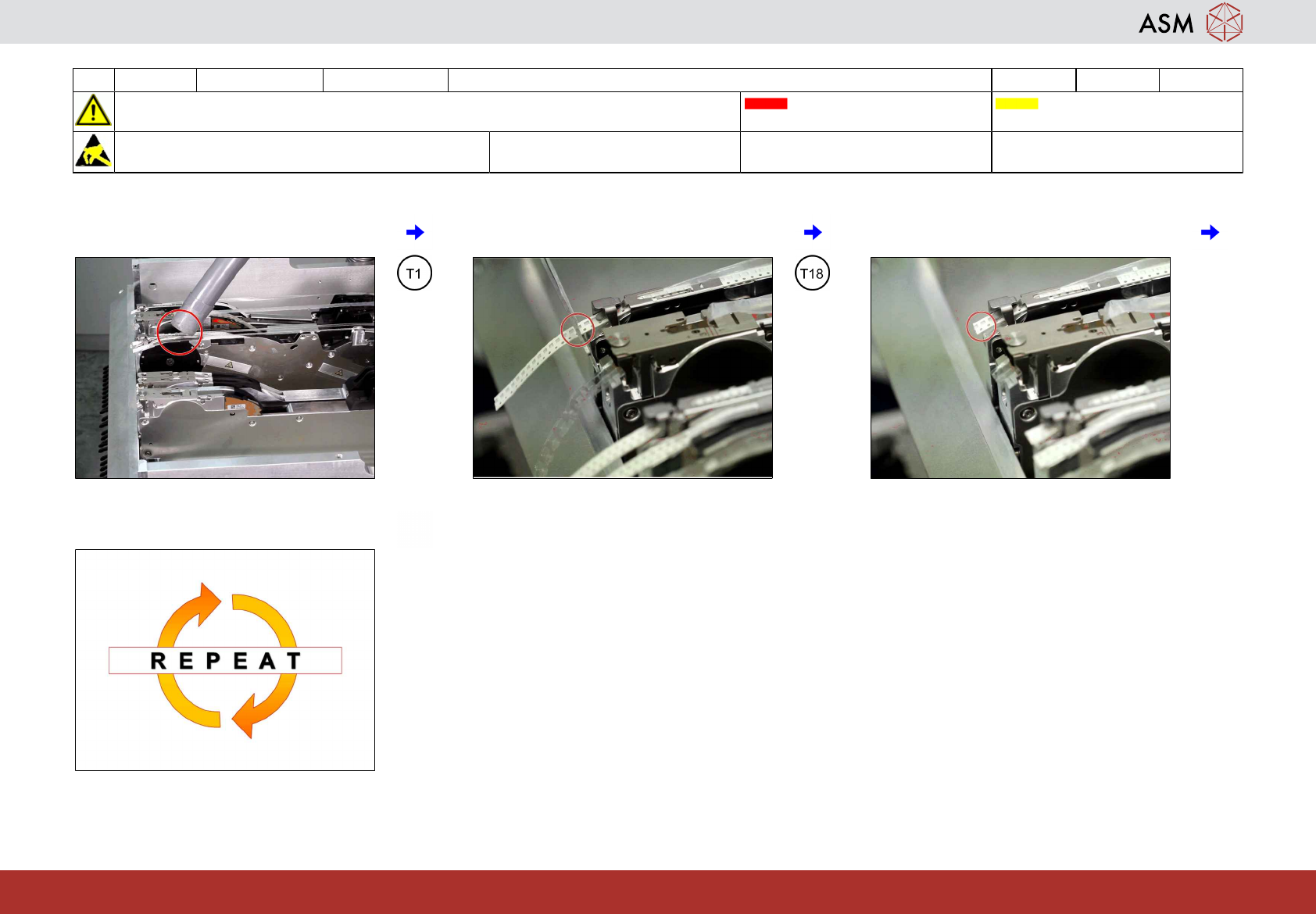

14 WF 3 TX-Series Maintenance Clean the feeder modules and cut the tapes 3 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T1, T18
Wear Part: Consumables:
www.asm-smt.com
1 Vacuum all loose components from the
feeder modules.
2 Cut the remaining tapes at the feeder. 3 Ensure to leave 2 holes overlap when cut-
ting.
4 Repeat steps 1-3 at all feeder tables.
