RV-2-3DHL PRODUCT SPECIFICATIONS
8
7. Option
7-1. Optional Software
Item Specification
Main system
• Character-recognition (OCR/OCV)
• Code reader (1D, 2D)
• Communication license
* Required when connecting to a data server
Peripherals
* It is your responsibility to
prepare a PC.
• Remote judgment (CCC mode)
• Remote judgment (OLR mode)
• Repair station
• SPC
• Offline editor
• Quality Traceability
Server system
* It is your responsibility to
prepare a PC.
• Data server
* Required when connecting an optional peripheral software.
• Data share
7-1-1. Optional Main System Software
Character-recognition (OCR/OCV)
This OCR (Optical Character Recognition) is a support tool that recognizes an alphanumeric character
string written on the board or part and converts it into the character data that can be handled on the
computer so as to make the judgment.
Resistance constants, IC characters, etc., can be recognized.
This OCV (Optical Character Verification) is a support tool that recognizes characters using the pattern
matching.
Code reader (1D, 2D)
The cameras on the inspection machine can recognize 1D (barcodes) and 2D (2D codes).
◆ Recognizable size
• 1D (barcode) : Maximum 50 mm
• 2D (2-dimensional code) : Maximum 25 mm x 25 mm * Minimum cell size: 0.1 mm square
◆ Recognizable code list
• 1D (barcode)
2/5 Industrial, 2/5 Interleaved, Codabar (NW-7), Code 128, Code 39, Code 93,
EAN-13 (JAN-13), EAN-8 (JAN-8), MSI, Pharma Code, GS1 Databar (RSS), UPC-A, UPC-E
• 2D (2-dimensional code)
Data Matrix ECC 200, QR Code, Micro QR Code, PDF417, Aztec
RV-2-3DHL PRODUCT SPECIFICATIONS
9
7-1-2. Optional Peripheral Software
This is a suite of software applications that provide various functions to support the operation of the
RV-2-3DHL.

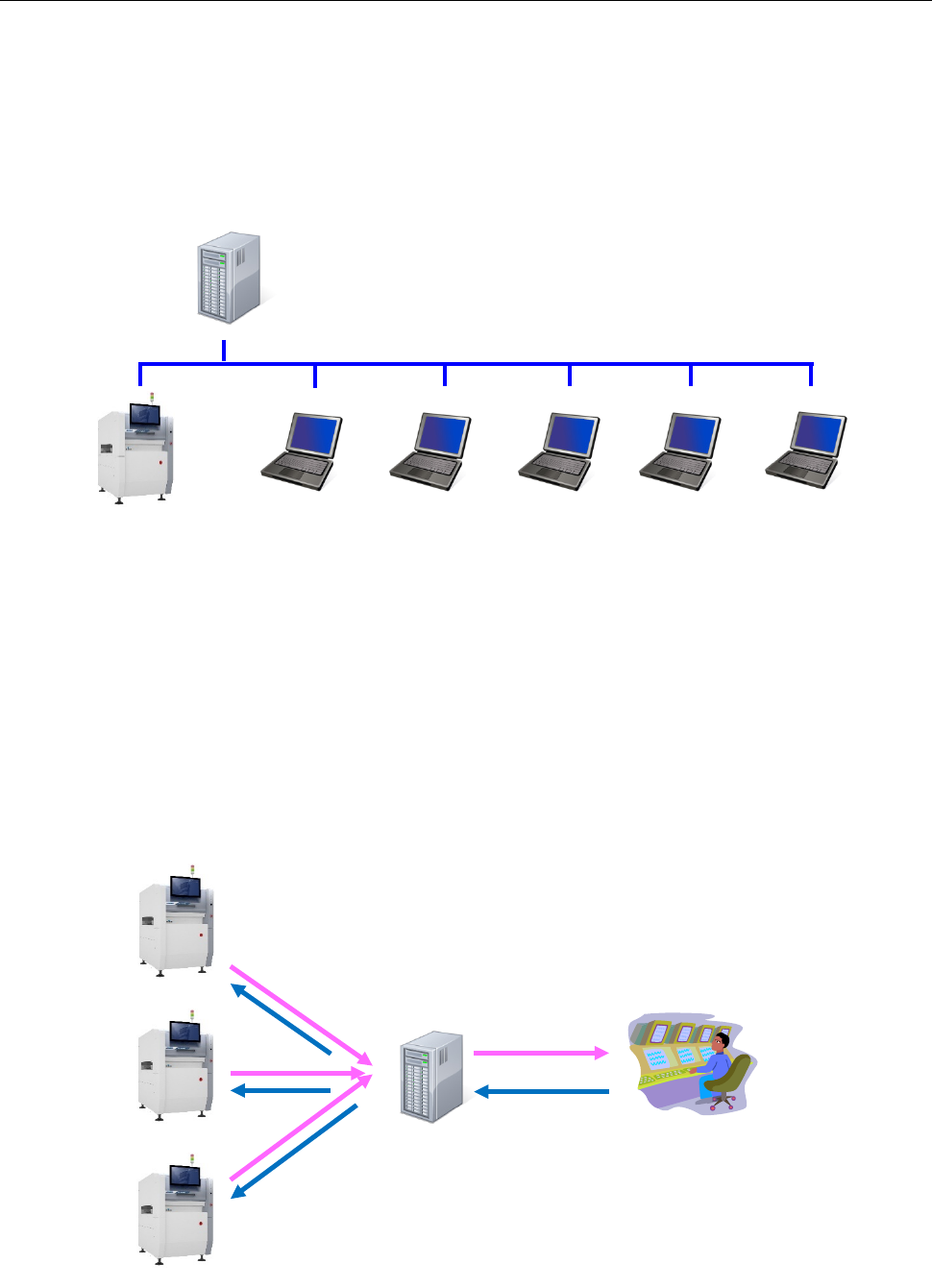

By connecting the TOPSS server with the devices and the terminal with the applicable function via a network,
the entire
RV-2-3DHL operations within the factory can be managed together.
Remote judgment
This function enables the operator to identify the parts that are judged by RV-2-3DHL and determined as
NG on any terminal other than the machine.
Remove judgment can be performed in the following two modes that share the same judgment screen and
operability.
• CCC mode
Multiple RV-2-3DHL units can be connected to a single terminal to perform judgment.
TOPSS server
NG information
Judgment
result
TOPSS server
SPC
Offline editor
Remote
judgment
Repair station
Quality
Traceability
RV-2-3DHL
RV-2-3DHL
RV-2-3DHL PRODUCT SPECIFICATIONS
10
• OLR mode
This function enables the operator to identify the parts that are judged by RV-2-3DHL and determined
as NG on any terminal other than the machine.
A single RV-2-3DHL unit and a single terminal can be connected to perform judgment for each board.
Repair station
This supports the offline repair based on the information of the board that was determined as NG by
RV-2-3DHL or in remote judgment.
Note also that all repair histories are stored on the server.
Judgment
result
NG
information
Repair one board at a time
TOPSS server
NG
Repair
information
Repair result
Repair station
