RV-2-3DHL PRODUCT SPECIFICATIONS
10

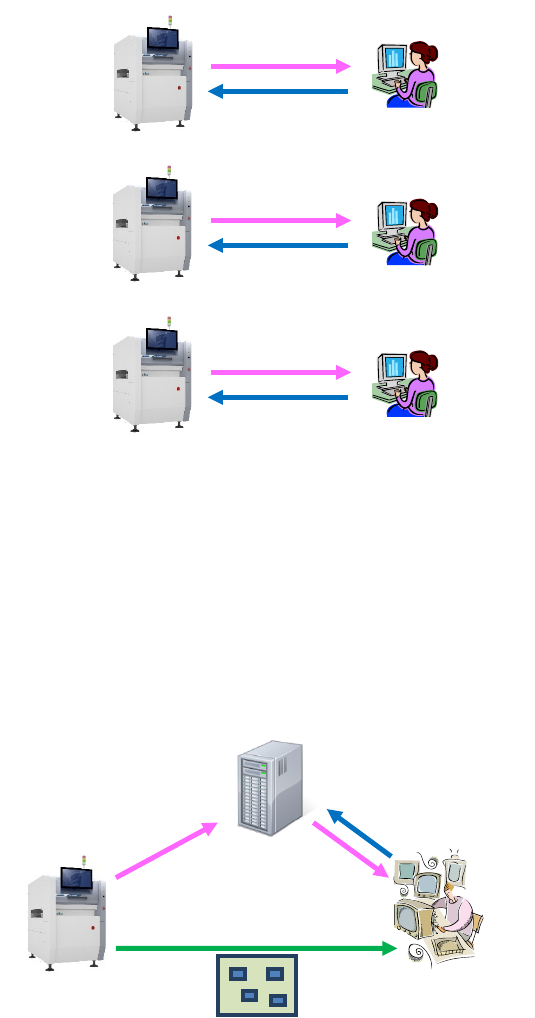

• OLR mode
This function enables the operator to identify the parts that are judged by RV-2-3DHL and determined
as NG on any terminal other than the machine.
A single RV-2-3DHL unit and a single terminal can be connected to perform judgment for each board.
Repair station
This supports the offline repair based on the information of the board that was determined as NG by
RV-2-3DHL or in remote judgment.
Note also that all repair histories are stored on the server.
Judgment
result
NG
information
Repair one board at a time
TOPSS server
NG
Repair
information
Repair result
Repair station
RV-2-3DHL PRODUCT SPECIFICATIONS
11
SPC (statistics management)
By statistically analyzing a large amount of inspection data from the inspections performed by RV-2-3DHL
and managing the data trend, such as offsets, quality troubles can be prevented.
You can also use this as a tool to improve the process based on the statistically analyzed result.
- Statistical information
- Analysis on excessive judgment
- Aggregation of unqualified items
- Production progress
- Process capability, etc.

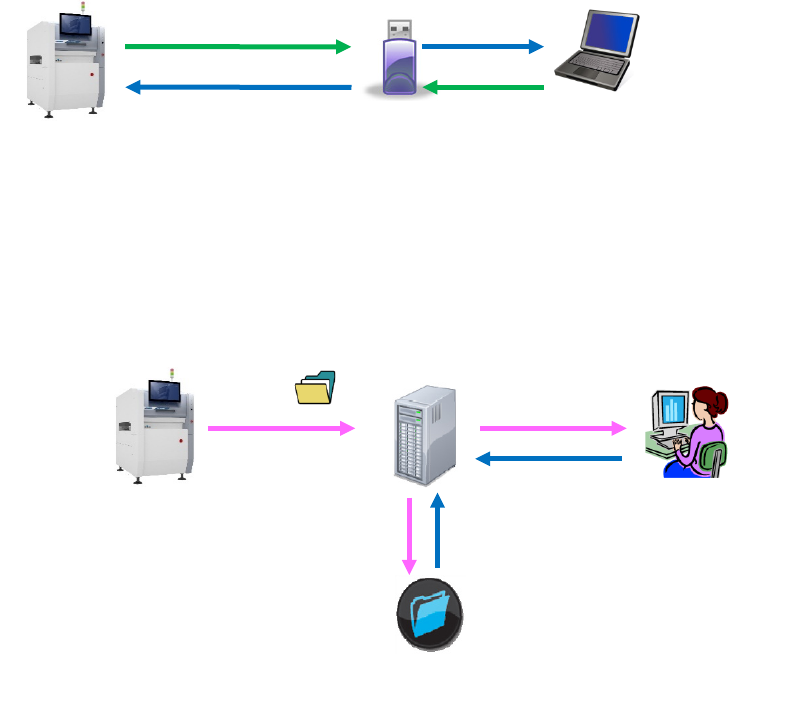

Offline editor
You can use the image data loaded by the inspection machine to generate and repair the inspection data
offline.
The editor is an application created by modifying the source software to accommodate the use offline, and
thus, can be used in the same way.
Quality Traceability
The quality traceability function offers the ability to search for images, including images of qualified parts,
check the quality conditions (tracing), and check the status of unqualified boards in the case of
non-detection.
TOPSS client
FTP server
Image save
TOPSS server
RV-2-3DHL
Offline editor
Data export
Data import
External storage
device (USB)
• Edit
• Create
RV-2-3DHL PRODUCT SPECIFICATIONS
12
7-1-3. Optional Server Software
Among the software programs that provide the various functions to support the operation of RV-2-3DHL,
these options are offered to operate on the TOPSS server.
Data server
All information required for the RV-2-3DHL and the TOPSS terminals is stored on the server.
The inspection result of each process can be consolidated and displayed simultaneously based on the
board code search.
Data share
This provides a function that can be used by sharing the inspection programs on multiple RV-2-3DHL
units.
TOPSS server
Update the data automatically
even during production
Update
Offline editor
Sharing of the inspection data
Edit data
