Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 401 213A1070 SHAFT 2 209210004R-001 402 0921B20N LEVER 1 209210004R-002 403 0921B20P LEVER 1 209210004R-003 404 0921B20M BLOCK 1 209210004R-004 405 0921B20L BRACKET 1 2092…

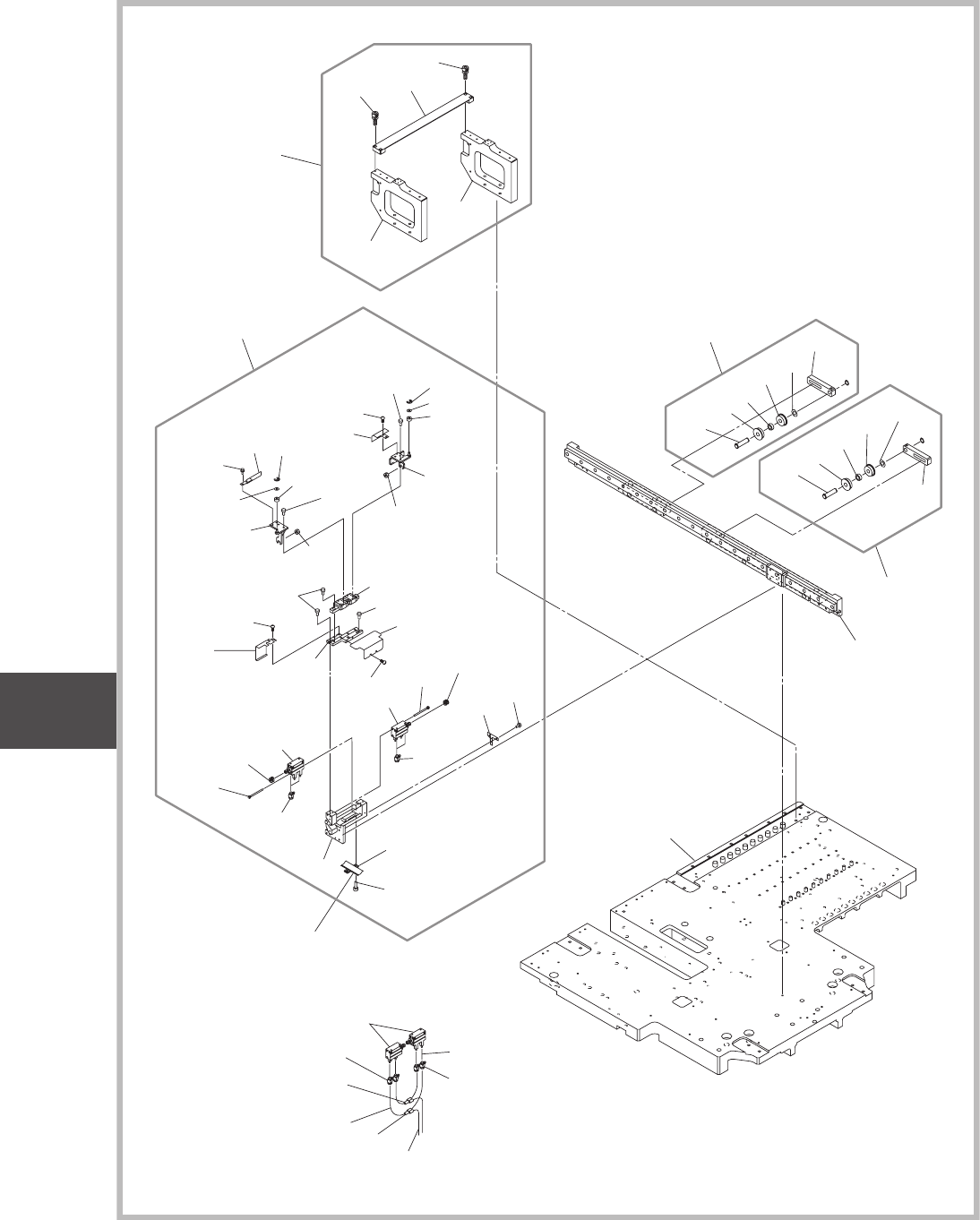

Fig. N1-5
パレットチャック
Pallet Chuck
1104-002
419
419
405
420
423
415
422
423
417
422
423
417
406
404
409
451
455
452
455
453
441
445
442
445
443
454
444
410
411
411
401
410
401
414
414
422
422
425
425
412
412
403
407
402
431
432
413
415
415
419
420
415
420
415
See Fig. N1-4
Key No.338
See Fig. N1-4
Key No.339
See Fig. N1-3
Key No.208
421
424
418
484
484
486
483
488
483
487
410
462
461
461
463
463
408
416
0921000R
0921000S
0921004R
0921000T
UNIT-13
Fig. N1
TRAVERSE F
Fig. N1
トラバースカート部
(FULL)
TRAVERSE CART SECTION(FULL)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
401 213A1070 SHAFT 2 209210004R-001
402 0921B20N LEVER 1 209210004R-002
403 0921B20P LEVER 1 209210004R-003
404 0921B20M BLOCK 1 209210004R-004
405 0921B20L BRACKET 1 209210004R-005
406 0921B207 PLATE 1 209210004R-006
407 0921B805 PLATE 1 209210004R-007
408 0921B20H PLATE 1 209210004R-008
409 0921B205 PLATE 1 209210004R-009
410 224C0550 CYLINDER 2 209210004R-010
411 225F0240 PIPEFITTINGS 4 209210004R-011
412 222D0136 BEARINGRADIAL 2 209210004R-012
413 222L0976 GUIDE_LINEAR 1 209210004R-013
414 221KA002 ROHS_RING 2 E RING 2 209210004R-014
415 221AA005 ROHS_HEX-SCT 14 M3L6 209210004R-015
416 221EA131 BU_HEX-SCT 2 BUTTAN M3L6 209210004R-016
417 221AA341 ROHS_HEX-SCT 4 M3L40 209210004R-017
418 221AA017 ROHS_HEX-SCT 2 M4L10 209210004R-018
419 221DA202 MACHINE_SCREW 2 TRS M3L4 209210004R-019
420 221HA103 WASHER 6 FW3 209210004R-020
421 221HA204 WASHER 2 FWS4 209210004R-021
422 221HA203 WASHER 8 FWS3 209210004R-022
423 221HA003 WASHER 8 SW3 209210004R-023
424 221HA004 WASHER 2 SW4 209210004R-024
425 221FA007 NUT_HEX 2 M4 209210004R-025
431 0921B20J COVER 1 209210004R-031
432 0921B20K COVER 1 209210004R-032
441 211DE855 PLATE 1 309210000R-001
442 216A1652 COLLAR 1 309210000R-002
443 0921B100 BEARING_PIN 1 309210000R-003
444 211FF014 BLOC 1 309210000R-004
445 222D0343 BEARINGRADIAL 2 309210000R-005
451 211DE855 PLATE 1 309210000S-001
452 216A1652 COLLAR 1 309210000S-002
453 0921B100 BEARING_PIN 1 309210000S-003
454 211FF014 BLOC 1 309210000S-004
455 222D0343 BEARINGRADIAL 2 309210000S-005
461 0921B30A BRACKET 2 209210000T-001
462 211DF007 PLATE 1 209210000T-002
463 221AA007 ROHS_HEX-SCT 4 M3L10 209210000T-003
483 225B0367 AIR_LINE_EQPT 2 3092100107-003
484 225F0685 PIPE FITTINGS 4 3092100107-004
486 0921D300 TUBE 1 3092100107-006
487 0921D301 TUBE 1 3092100107-007
488 0921D302 TUBE 1 3092100107-008
Fig. N1
1104-002
Fig. N1-5
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-13
Fig. N1
TRAVERSE F

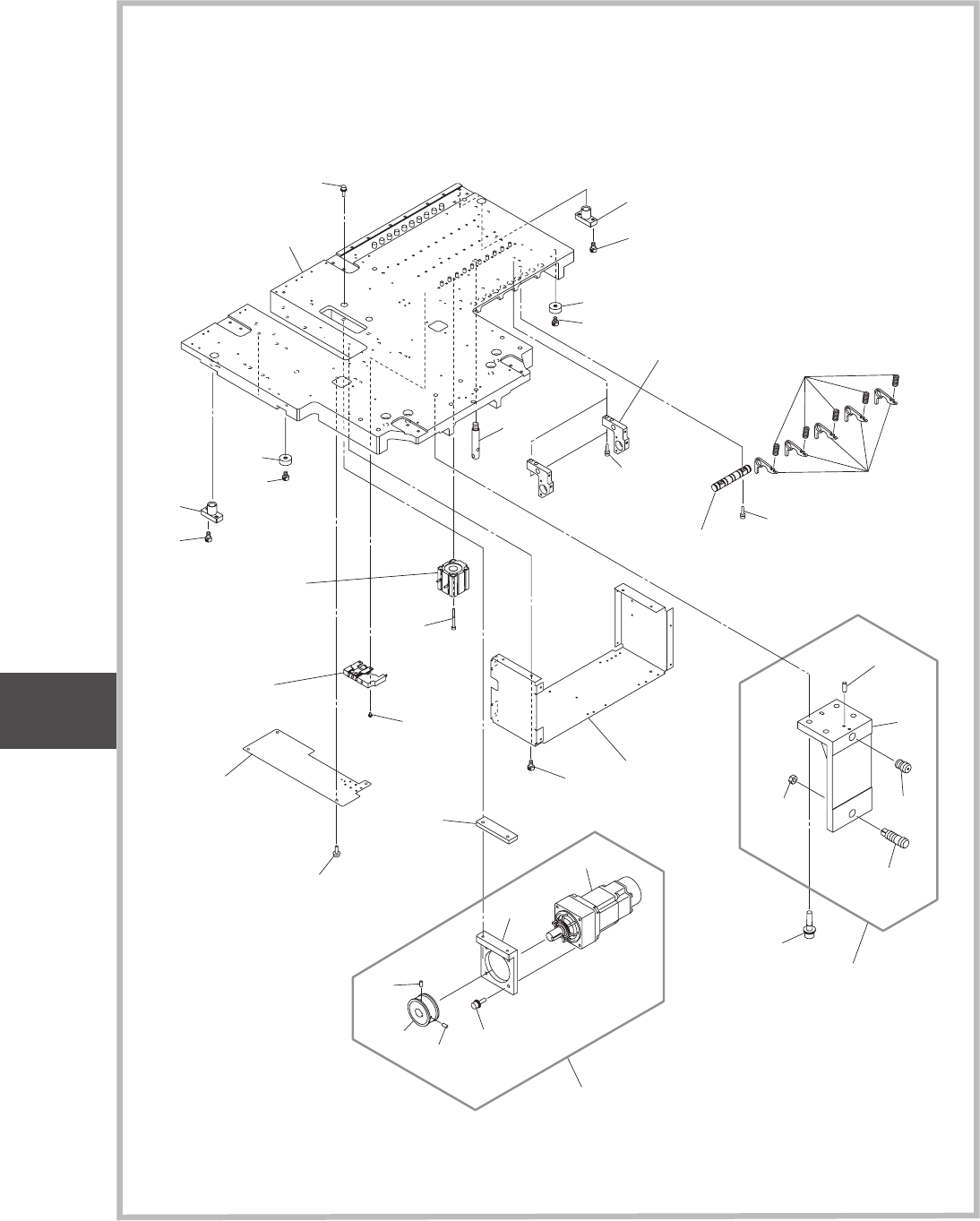

Fig. N1-6
ロアベース
Lower
Base
1104-002
527
523
518
536
535
534
520
537
537
531
530
508
532
533
542
528
524
519
541
543
544
545
546
547
515
522
526
529
513
521
525
517
526
510
514
511
514
511
514
509
514
514
522
526
516
522
526
512
See Fig. N1-3
Key No.208
See Fig. N1-7
Key No.641
See Fig. N1-7
Key No.651
See Fig. N1-7
Key No.616
See Fig. N1-7
Key No.601
0921000U
0921001N
B6910
Y6913
M01
B6914
See Fig. N1-7
Key No.602
See Fig. N1-8
Key No.731
UNIT-13
Fig. N1
TRAVERSE F
Fig. N1
トラバースカート部
(FULL)
TRAVERSE CART SECTION(FULL)
