Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 754 4V320003 DIODE_DS135AC 1 3092103207-024 Fig. N1 1 104-002 Fig. N1-8 SIGMA-G5SA SIGMA-G5SB SIGMA-G5SC SIGMA-G5SD UNIT -13 Fig. N1 TRA VERSE F

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

Fig. N1-8

1104-002

Fig. N1

701 0921B502 COVER 1 109210010J-101

702 0921B501 COVER 1 109210010J-102

703 211AE306 COVER 1 109210010J-103

704 221DA113 MACHINE_SCREW 4 FLT M4L6 109210010J-104

706 221DA207 MACHINE_SCREW 8 TRS M4L6 109210010J-106

707 221DA021 MACHINE_SCREW 3 PAN M4L6 109210010J-107

708 221HA104 WASHER 3 FW4 109210010J-108

709 221HA004 WASHER 3 SW4 109210010J-109

710 23N30737 ACCESS_WIRING(M 15 109210010J-110

711 0920E302 ACCESS_WIRING 15 109210010J-111

712 4W205235 CORD 1 109210010J-112

713 0921B50S CORD 1 109210010J-113

716 0921B50T CORD 1 109210010J-116

721 211AE290 COVER 1 3092103203-001

722 2.21E+300 BOLT 20 3092103203-002

723 23L10114 ACCESSORY_PCB 8 3092103203-003

724 221DA202 MACHINE_SCREW 8 TRS M3L4 3092103203-004

725 4W204901 CORD 10 3092103203-005

726 4B111623 PCB_MOUNT(UB74) 1 3092103203-006

727 23N30737 ACCESS_WIRING(M 15 3092103203-007

728 221DA051 MACHINE_SCREW 8 M3L6 3092103203-008

731 0921B50W COVER 1 3092103207-001

732 0921B503 COVER 1 3092103207-002

733 0921B504 SPACER 10 3092103207-003

734 226F0186 HINGE 2 3092103207-004

735 23N30727 ACCESS_WIRING 1 3092103207-005

736 23N30726 ACCESS_WIRING 1 3092103207-006

737 226J0373 MOUNTING_BASE 1 3092103207-007

738 0921E204 ACCESSORY_WRING 1 3092103207-008

739 4S200100 RELAY 1 3092103207-009

740 23N10019 BRACKET_WIRING 1 3092103207-010

741 221DA208 MACHINE_SCREW 1 TRS M4L8 3092103207-011

742 221DA113 MACHINE_SCREW 4 FLT M4L6 3092103207-012

743 221DA053 MACHINE_SCREW 2 PAN M4L6 SW+FW

3092103207-013

744 221AA005 ROHS_HEX-SCT 6 M3L6 3092103207-014

745 221HA003 WASHER 16 SW3 3092103207-015

746 221HA103 WASHER 16 FW3 3092103207-016

747 4J300050 CAB_JOINTTERMIN 2 1.25Y-3.5 3092103207-017

748 23N20112 TUBE_WIRING 2 3092103207-018

749 23N20128 TUBE_WIRING 1 3092103207-019

750 4W204583 CORD 1 3092103207-020

751 4W204584 CORD 1 3092103207-021

752 4W204979 CORD 1 3092103207-022

753 0920E30D PCB_MOUNT(UB76) 1 3092103207-023

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

UNIT-13

Fig. N1

TRAVERSE F

Key No. PART No. PART NAME Q’ty

REMARKS

NOTE

754 4V320003 DIODE_DS135AC 1 3092103207-024

Fig. N1

1104-002

Fig. N1-8

SIGMA-G5SA

SIGMA-G5SB

SIGMA-G5SC

SIGMA-G5SD

UNIT-13

Fig. N1

TRAVERSE F

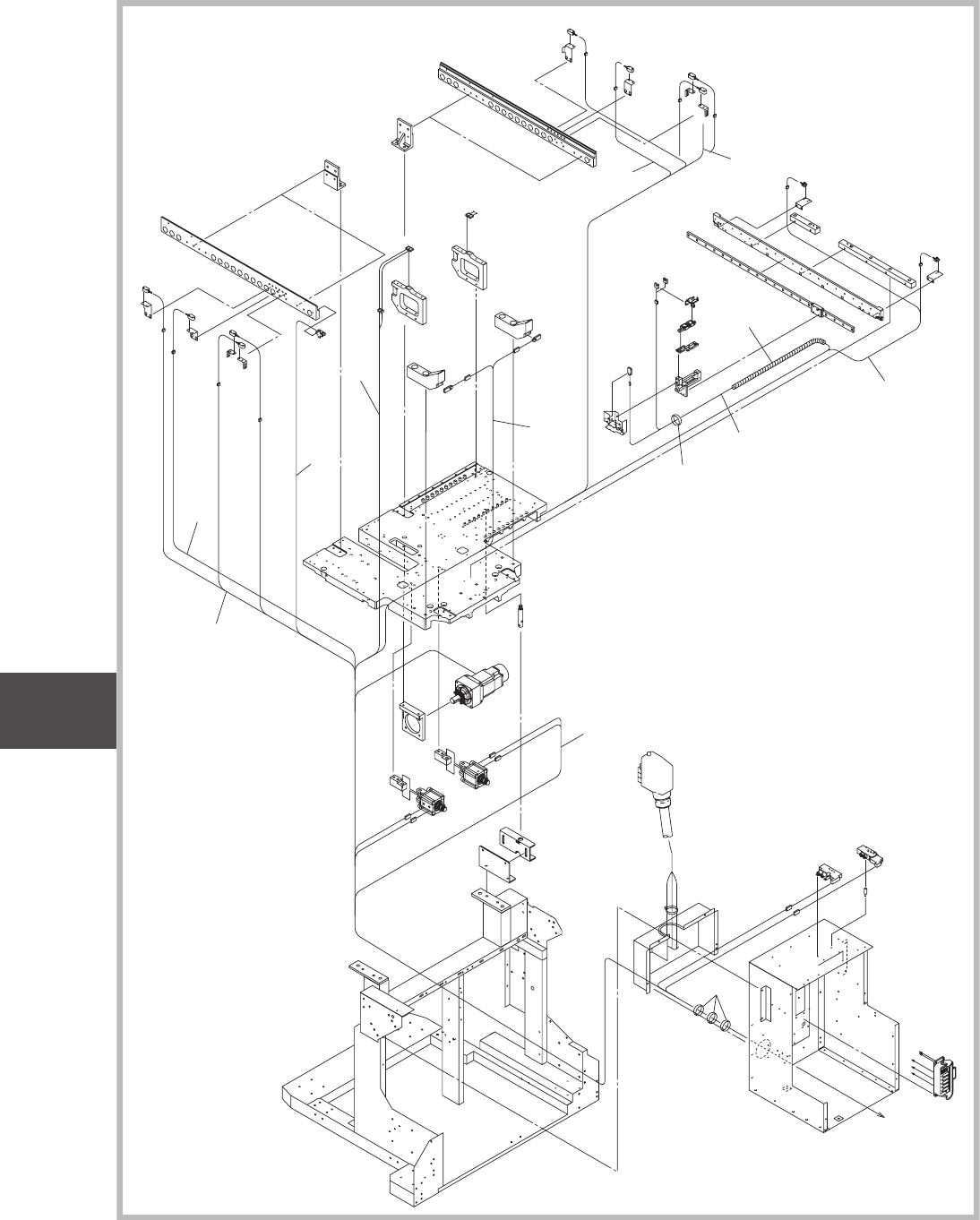

Fig. N1-9

ケーブル１

Cable 1

1104-002

B15412

B15413

B15408

B15407

B15411

B15407

B15411

TV1

B15426

B15427

B15428

B15429

TV2

B15426

B15427

B15428

B15429

Y15439

Y15437

B15412

TV3

Y15439

Y15437

B15413

B15414

B15409

B15415

B15414

B15415

TV4

XB15417

XB15417T

B0101

B0102

B0101

B0102

M01

B15420

B15419

B15418

B15420

B15419

B15417

B15418

805

811

B15420T

B15419T

B15420T

B15419T

B15418T

B15417T

B15418T

B15417T

812

XB15420

XB15420T

807

808

801

809

802

804

806

804

803

809

X300

X35

UNIT-13

Fig. N1

TRAVERSE F

Fig. N1

トラバースカート部

(FULL)



TRAVERSE CART SECTION(FULL)
