Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 204 0921E30G FRAME 1 1 1 109210004L-004 205 21 1F8535 BRACKET 1 1 1 109210004L-005 206 21 1F8681 BRACKET 1 1 1 109210004L-006 208 21 1FE470 BRACKET 1 1 1 109210004L-008 20…

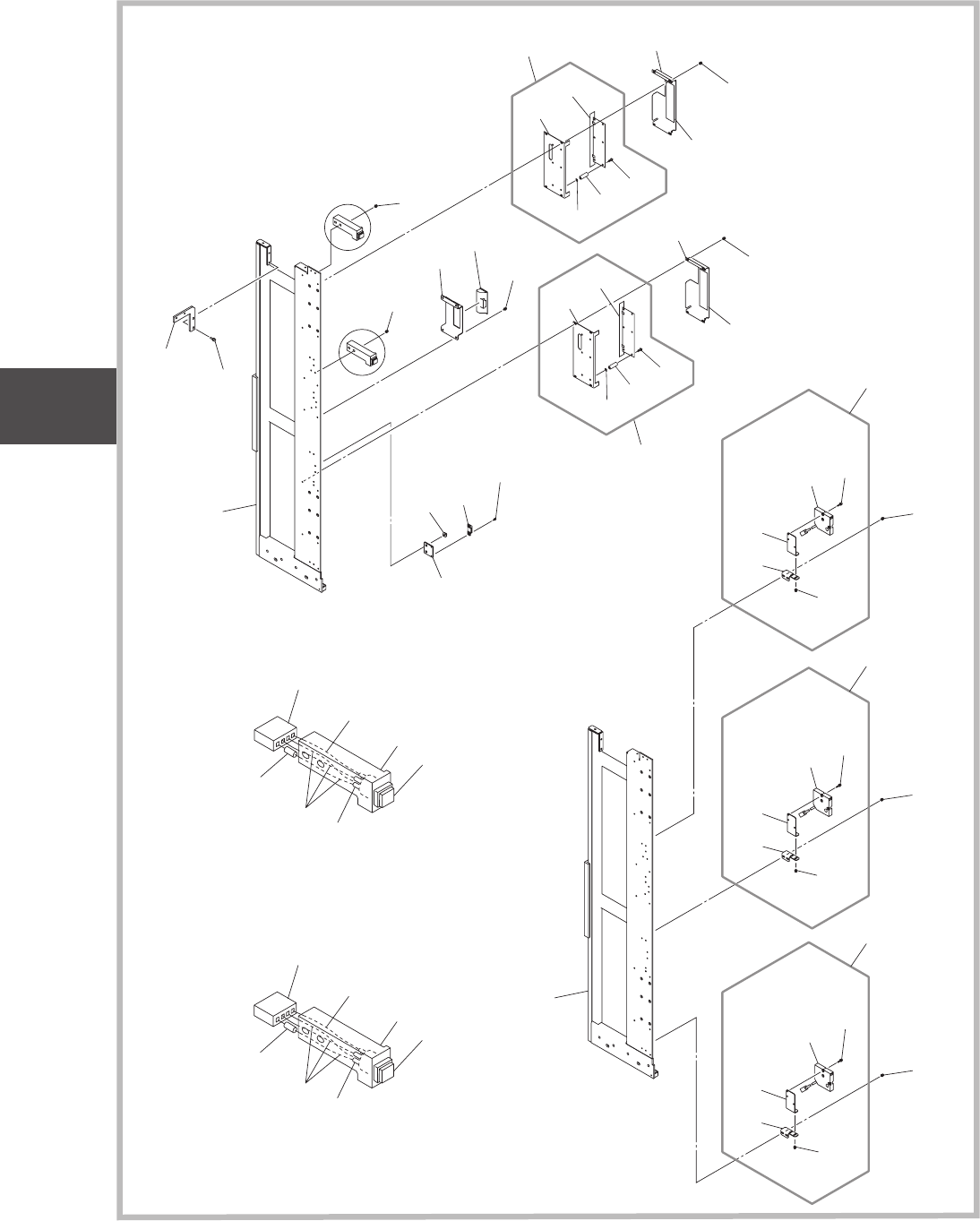

Fig. K1-3
サブフレーム部
Sub Frame Section
1104-003
210
218
221
215
217
222
206
223
220
216
205
222
219
214
211
208
204
222
219
213
222
219
213
222
219
213
222
209
209
281
282
219
213
267
264
261
262
263
268
265
266
277
274
271
272
273
278
275
276
A
B
212
283
284
285
291
292
293
294
295
DETAIL “A”
DETAIL “B”
228
228
252
253
251
213
219
222
254
256
257
255
256
257
232
233
231
213
219
222
234
236
237
235
236
237
242
243
241
213
219
222
244
246
247
245
246
247
204
09214309
09214308
09210018
09210017
09210016
0921460K
0921460J
S0502
S0501
S0503
U156
U157
S15518
H15543
S15519
H15544
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
204 0921E30G FRAME 1 1 1 109210004L-004
205 211F8535 BRACKET 1 1 1 109210004L-005
206 211F8681 BRACKET 1 1 1 109210004L-006
208 211FE470 BRACKET 1 1 1 109210004L-008
209 211A9122 COVER 2 2 2 109210004L-009
210 226J0001 MECH PARTS 1 1 1 109210004L-010
211 226C0251 HANDLE 1 1 1 109210004L-011
212 221AA004 ROHS_HEX-SCT 2 2 2 M3L4 109210004L-012
213 221AA015 ROHS_HEX-SCT 18 18 18 M4L6 109210004L-013
214 221AA016 ROHS_HEX-SCT 4 4 4 M4L8 109210004L-014
215 221AA017 ROHS_HEX-SCT 2 2 2 M4L10 109210004L-015
216 221AA031 ROHS_HEX-SCT 2 2 2 M5L16 109210004L-016
217 221HA302 ROHS_WASHER 2 2 2 SW4 109210004L-017
218 221HA103 WASHER 2 2 2 FW3 109210004L-018
219 221HA104 WASHER 22 22 22 FW4 109210004L-019
220 221HA105 WASHER 2 2 2 FW5 109210004L-020
221 221HA003 WASHER 2 2 2 SW3 109210004L-021
222 221HA004 WASHER 24 24 24 SW4 109210004L-022
223 221HA005 WASHER 2 2 2 SW5 109210004L-023
228 226A0209 SEAL 1 1 1 109210004L-028
231 0921460E ASSY_EE14_SW 1 1 1 3092100016-001
232 0921E302 BRACKET 1 1 1 3092100016-002
233 0921E301 BRACKET 1 1 1 3092100016-003
234 221AA015 ROHS_HEX-SCT 2 2 2 M4L6 3092100016-004
235 221AA020 ROHS_HEX-SCT 3 3 3 M4L16 3092100016-005
236 221HA104 WASHER 5 5 5 FW4 3092100016-006
237 221HA004 WASHER 5 5 5 SW4 3092100016-007
241 0921460G ASSY_EE16_SW 1 1 1 3092100017-001
242 0921E302 BRACKET 1 1 1 3092100017-002
243 0921E301 BRACKET 1 1 1 3092100017-003
244 221AA015 ROHS_HEX-SCT 2 2 2 M4L6 3092100017-004
245 221AA020 ROHS_HEX-SCT 3 3 3 M4L16 3092100017-005
246 221HA104 WASHER 5 5 5 FW4 3092100017-006
247 221HA004 WASHER 5 5 5 SW4 3092100017-007
251 0921460F ASSY_EE15_SW 1 1 1 3092100018-001
252 0921E302 BRACKET 1 1 1 3092100018-002
253 0921E301 BRACKET 1 1 1 3092100018-003
254 221AA015 ROHS_HEX-SCT 2 2 2 M4L6 3092100018-004
255 221AA020 ROHS_HEX-SCT 3 3 3 M4L16 3092100018-005
256 221HA104 WASHER 5 5 5 FW4 3092100018-006
257 221HA004 WASHER 5 5 5 SW4 3092100018-007
261 211F8687 BRACKET 1 1 1 309210460K-001
262 4S1B0118 SWITCH_BUTTON 1 1 1 309210460K-002
263 0921E60M CORD 1 1 1 309210460K-003
264 9W310129 CORD 1 1 1 309210460K-004
Fig. K1
1104-004
Fig. K1-3
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. K1-3
1104-004
Fig. K1
265 23K10402 CASE_CONN 1 1 1 309210460K-005
266 4J300191 CAB_JOINTTERMIN 4 4 4 309210460K-006
267 23N20117 TUBE_WIRING 4 4 4 309210460K-007
268 23N20103 TUBE_WIRING 1 1 1 309210460K-008
271 211F8687 BRACKET 1 1 1 309210460J-001
272 4S1B0118 SWITCH_BUTTON 1 1 1 309210460J-002
273 0921E60M CORD 1 1 1 309210460J-003
274 9W310129 CORD 1 1 1 309210460J-004
275 23K10402 CASE_CONN 1 1 1 309210460J-005
276 4J300191 CAB_JOINTTERMIN 4 4 4 309210460J-006
277 23N20117 TUBE_WIRING 4 4 4 309210460J-007
278 23N20103 TUBE_WIRING 1 1 1 309210460J-008
281 211A9124 COVER 1 1 1 3092104308-001
282 4B111494 PCB_MOUNT 1 1 1 3092104308-002
283 221DA051 SEMS_PANHEADSCR 5 5 5 M3L6 3092104308-003
284 23L10074 ACCESSORY_PCB 5 5 5 3092104308-004
285 221HA003 WASHER 5 5 5 3092104308-005
291 211A9123 COVER 1 1 1 3092104309-001
292 4B111494 PCB_MOUNT 1 1 1 3092104309-002
293 221DA051 SEMS_PANHEADSCR 5 5 5 M3L6 3092104309-003
294 23L10074 ACCESSORY_PCB 5 5 5 3092104309-004
295 221HA003 WASHER 5 5 5 3092104309-005
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
