Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. K1-3
1104-004
Fig. K1
265 23K10402 CASE_CONN 1 1 1 309210460K-005
266 4J300191 CAB_JOINTTERMIN 4 4 4 309210460K-006
267 23N20117 TUBE_WIRING 4 4 4 309210460K-007
268 23N20103 TUBE_WIRING 1 1 1 309210460K-008
271 211F8687 BRACKET 1 1 1 309210460J-001
272 4S1B0118 SWITCH_BUTTON 1 1 1 309210460J-002
273 0921E60M CORD 1 1 1 309210460J-003
274 9W310129 CORD 1 1 1 309210460J-004
275 23K10402 CASE_CONN 1 1 1 309210460J-005
276 4J300191 CAB_JOINTTERMIN 4 4 4 309210460J-006
277 23N20117 TUBE_WIRING 4 4 4 309210460J-007
278 23N20103 TUBE_WIRING 1 1 1 309210460J-008
281 211A9124 COVER 1 1 1 3092104308-001
282 4B111494 PCB_MOUNT 1 1 1 3092104308-002
283 221DA051 SEMS_PANHEADSCR 5 5 5 M3L6 3092104308-003
284 23L10074 ACCESSORY_PCB 5 5 5 3092104308-004
285 221HA003 WASHER 5 5 5 3092104308-005
291 211A9123 COVER 1 1 1 3092104309-001
292 4B111494 PCB_MOUNT 1 1 1 3092104309-002
293 221DA051 SEMS_PANHEADSCR 5 5 5 M3L6 3092104309-003
294 23L10074 ACCESSORY_PCB 5 5 5 3092104309-004
295 221HA003 WASHER 5 5 5 3092104309-005
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
MEMO

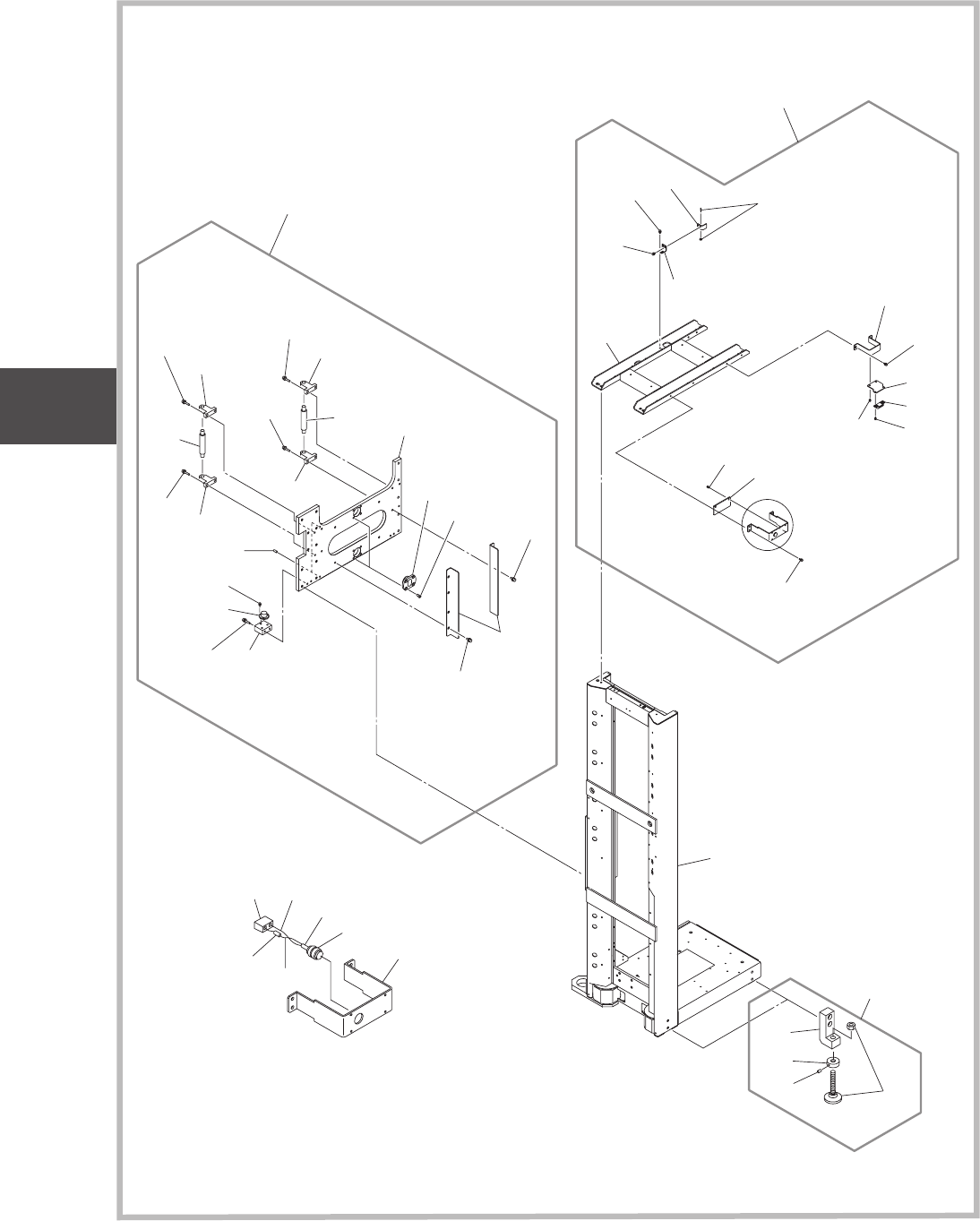

Fig. K1-4
トップ、リアフレーム部
Top, Rear Frame Section
1104-003
310
303
314
305
317
319
323
321
323
323
322
322
335
334
331
335
334
331
335
334
331
335
334
331
329
333
328
334
335
332
325
324
335
327
351
352
354
358
357
353
355
356
334
330
335
334
330
319
317
314
341
342
343
344
318
304
316
302
312
319
317
313
319
317
313
318
316
311
318
316
311
323
326
306
307
DETAIL “C”
See Fig. EL-2
Key No.106
C
See Fig. K1-2
Key No.124,125
H0001
0921000N
0921000J
0921000K
0921460L
B15406
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
