Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 502 09214606 ASSY_EE6_SEN 1 1 1 109210003W-002 503 09214604 ASSY_EE4_SEN 1 1 1 109210003W-003 507 21 1F8648 BRACKET 1 1 1 109210003W-007 508 23G10056 SENSOR_PHOTO 1 1 1 10…

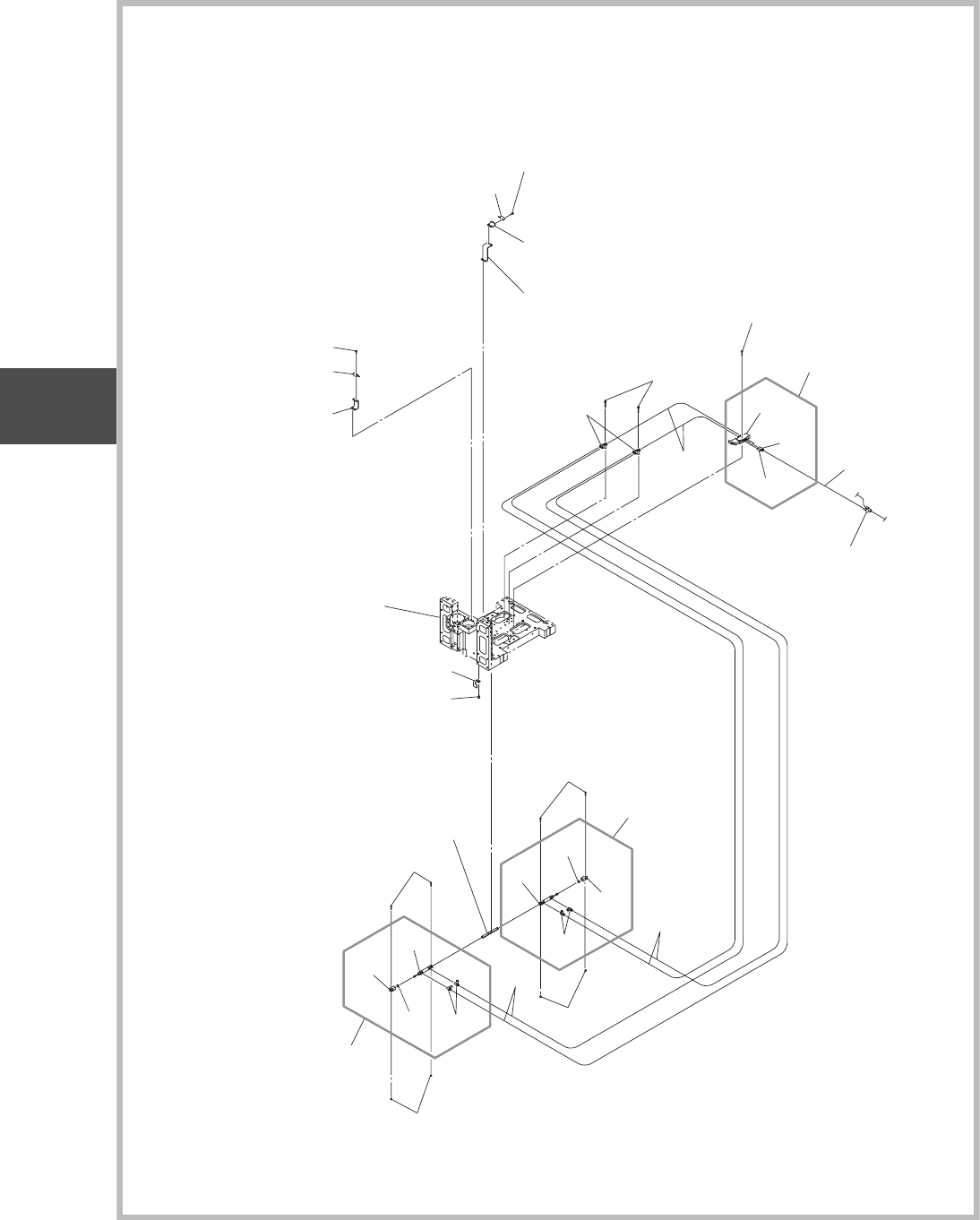

Fig. K1-6
エレベータ
(D)
ベース
Elevator (D) Base
1104-004
525
520
515
523
508
507
522
511
521
517
526
509
524
519
514
562
563
563
523
503
518
512
502
523
518
512
See Fig. K1-8
Key No.714
See Fig. K1-8
Key No. 715
See Fig. K1-8
Key No.716
See Fig. K1-8
Key No.705(D)
510
533
534
544
531
541
510
543
516
532
516
542
See Fig. K1-8
Key No.707
B15521
523
551
552
564
563
561
553
518
513
565
0921001E
0921001C
0921001D
B15522
B15523
B15524
B15525
Y15537
B0202
B15523
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
502 09214606 ASSY_EE6_SEN 1 1 1 109210003W-002
503 09214604 ASSY_EE4_SEN 1 1 1 109210003W-003
507 211F8648 BRACKET 1 1 1 109210003W-007
508 23G10056 SENSOR_PHOTO 1 1 1 109210003W-008
509 221E0305 BOLT 2 2 2 109210003W-009
510 216D0465 PIN_HINGE 4 4 4 109210003W-010
511 221AA005 ROHS_HEX-SCT 2 2 2 M3L63 109210003W-011
512 221AA009 ROHS_HEX-SCT 4 4 4 M3L14 109210003W-012
513 221AA012 BOLT_HEX-SCT 2 2 2 M3L25 109210003W-013
514 221AA023 ROHS_HEX-SCT 2 2 2 M4L30 109210003W-014
515 221AA031 ROHS_HEX-SCT 2 2 2 M5L16 109210003W-015
516 221FA005 NUT_HEX 8 8 8 M3 109210003W-016
517 221FA016 ROHS_NUT_HEX 2 2 2 M10 109210003W-017
518 221HA103 WASHER 6 6 6 FW3 109210003W-018
519 221HA104 WASHER 2 2 2 FW4 109210003W-019
520 221HA105 WASHER 2 2 2 FW5 109210003W-020
521 221HA108 WASHER 2 2 2 FW10 109210003W-021
522 221HA203 WASHER 2 2 2 FWS3 109210003W-022
523 221HA003 WASHER 8 8 8 SW3 109210003W-023
524 221HA004 WASHER 2 2 2 SW4 109210003W-024
525 221HA005 WASHER 2 2 2 SW5 109210003W-025
526 221HA008 WASHER 2 2 2 SW10 109210003W-026
531 09214608 ASSY_EE8_CYLD 1 1 1 309210001C-001
532 0921A057 AIR_LINE_EQPT 2 2 2 309210001C-002
533 214B0010 LINK 1 1 1 309210001C-003
534 221FA008 NUT_HEX 1 1 1 M4 309210001C-004
541 09214609 ASSY_EE9_CYLD 1 1 1 309210001D-001
542 0921A057 AIR_LINE_EQPT 2 2 2 309210001D-002
543 214B0010 LINK 1 1 1 309210001D-003
544 221FA008 NUT_HEX 1 1 1 M4 309210001D-004
551 0921460Q ASSY_EE12_VALVE 1 1 1 309210001E-001
552 225B0374 AIR_LINE_EQPT 2 2 2 309210001E-002
553 225F0603 PIPE FITTINGS 1 1 1 309210001E-003
561 225F0504 PIPE_FITTINGS 1 1 1 309210003E-001
562 225B0367 AIR_LINE_EQPT 2 2 2 309210003E-002
563 0921E20F TUBE 1 1 1 309210003E-003
564 0921E20G TUBE 1 1 1 309210003E-004
565 225F0495 PIPE FITTING 1 1 1 309210003E-005
Fig. K1
1104-004
Fig. K1-6
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR

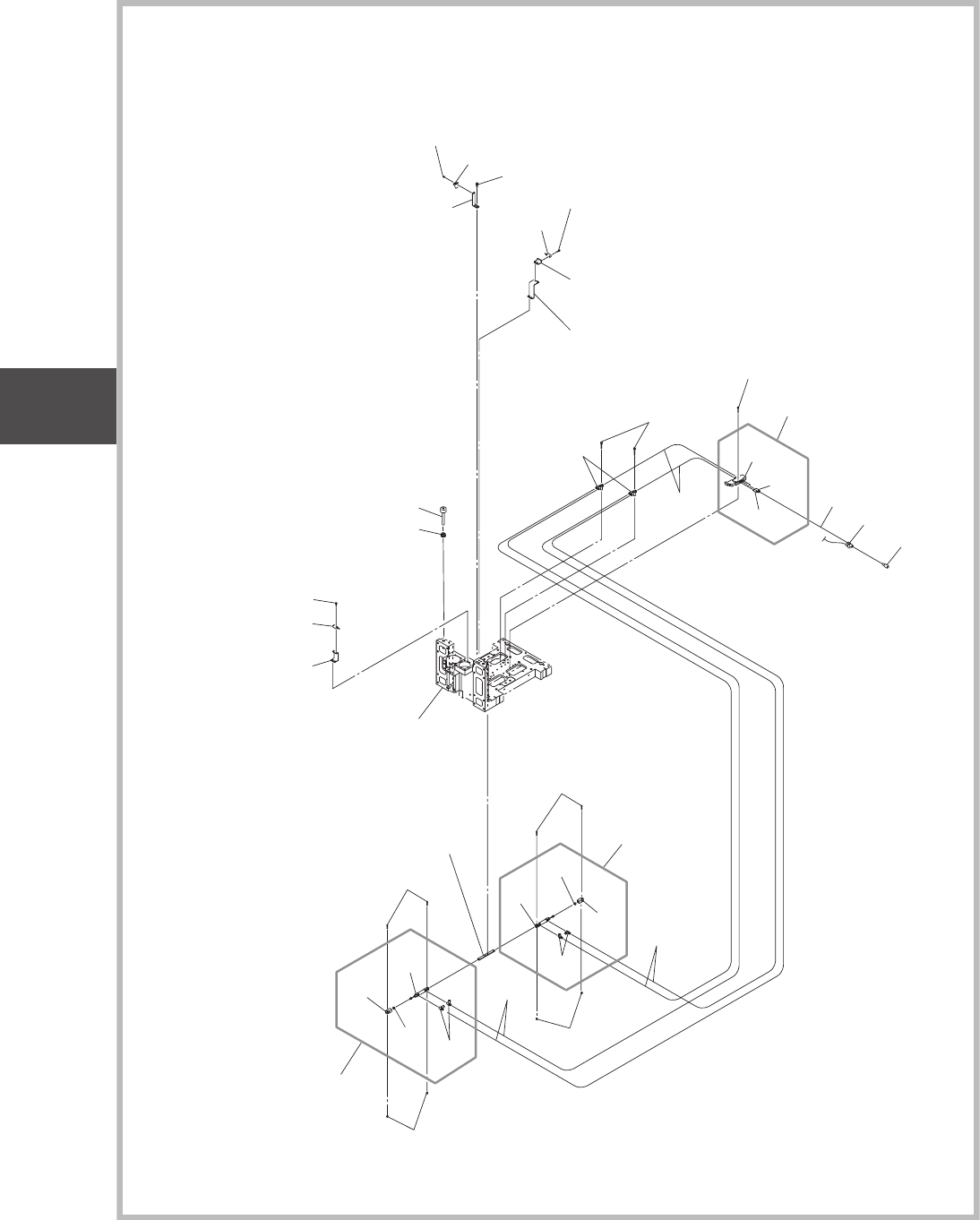

Fig. K1-7
エレベータ
(U)
ベース
Elevator (U) Base
1104-003
652
653
653
618
615
612
602
See Fig. K1-8
Key No.714
See Fig. K1-8
Key No.715
See Fig. K1-8
Key No.716
See Fig. K1-8
Key No.705(U)
See Fig. K1-6
Key No. 561
608
623
624
634
621
631
608
633
613
622
613
632
See Fig. K1-8
Key No. 707
617
614
609
617
603
614
609
641
642
654
653
643
617
614
610
618
613
611
607
0921001J
0921001G
0921001H
B15528
B15529
B15530
B15531
B15515
B15527
Y15538
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
