P-310-004(2_2)e - 第94页

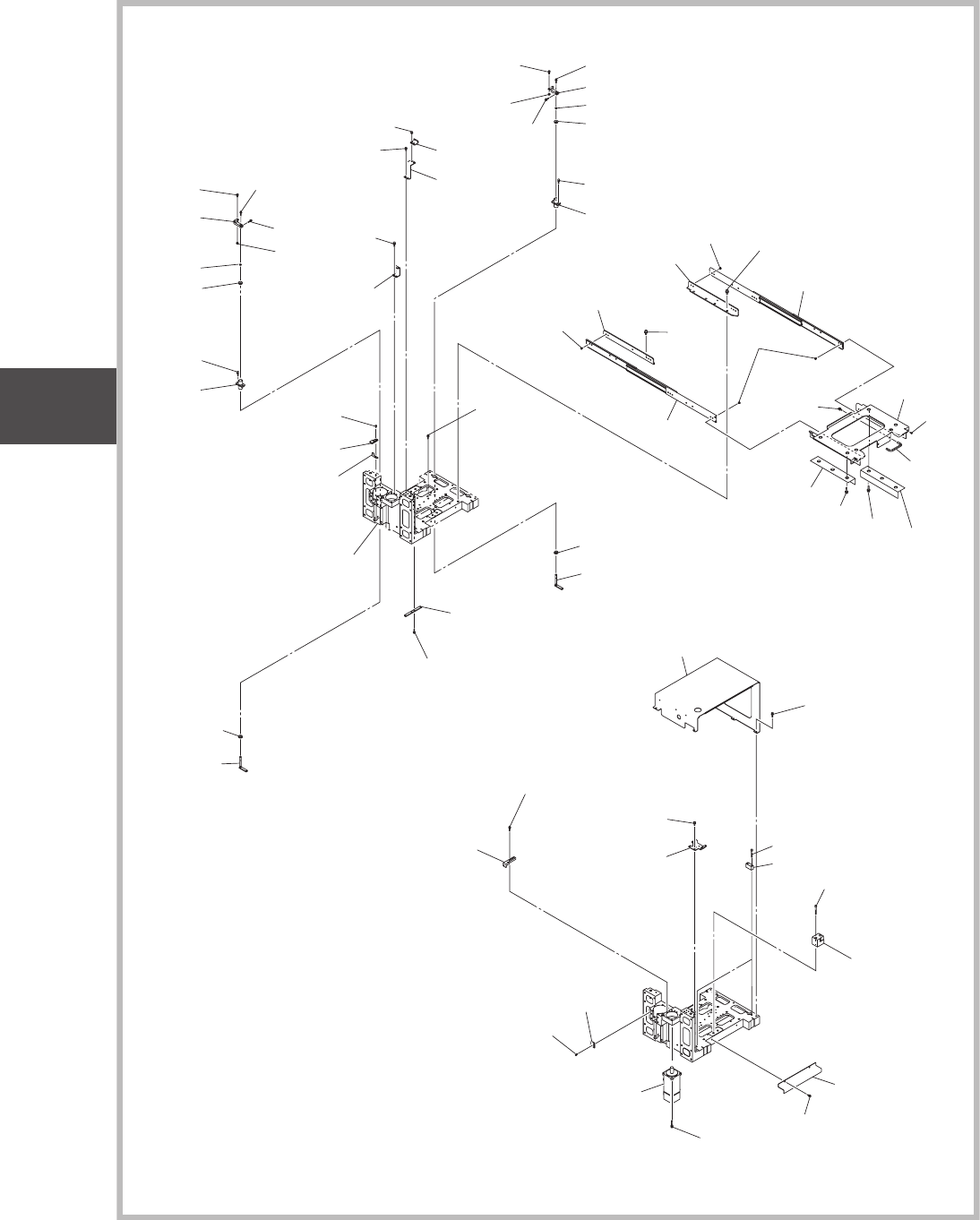

Fig. K1-8 マガジン収納部 Magazine Storage Section 1007-003 753 748 737 752 706 747 730 753 748 734 717 725 749 754 740 743 742 754 749 739 713 754 741 See Fig. K1-9 Key No.801 See Fig. K1-9 Key No.842 See Fig. K1-9 Key No.851 S…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
602 09214607 ASSY_EE7_SEN 1 1 1 109210003X-002
603 09214605 ASSY_EE5_SEN 1 1 1 109210003X-003
607 0921E105 BRACKET 1 1 1 109210003X-007
608 216D0465 PIN_HINGE 4 4 4 109210003X-008
609 221AA009 ROHS_HEX-SCT 4 4 4 M3L14 109210003X-009
610 221AA012 BOLT_HEX-SCT 2 2 2 M3L25 109210003X-010
611 221AA018 ROHS_HEX-SCT 2 2 2 M4L12 109210003X-011
612 221AA023 ROHS_HEX-SCT 2 2 2 M4L30 109210003X-012
613 221FA005 NUT_HEX 8 8 8 M3 109210003X-013
614 221HA103 WASHER 6 6 6 FW3 109210003X-014
615 221HA104 WASHER 4 4 4 FW4 109210003X-015
617 221HA003 WASHER 6 6 6 SW3 109210003X-017
618 221HA004 WASHER 4 4 4 SW4 109210003X-018
621 0921460A ASSY_EE10_CYLD 1 1 1 309210001G-001
622 0921A057 AIR_LINE_EQPT 2 2 2 309210001G-002
623 214B0010 LINK 1 1 1 309210001G-003
624 221FA008 NUT_HEX 1 1 1 M4 309210001G-004
631 0921460B ASSY_EE11_CYLD 1 1 1 309210001H-001
632 0921A057 AIR_LINE_EQPT 2 2 2 309210001H-002
633 214B0010 LINK 1 1 1 309210001H-003
634 221FA008 NUT_HEX 1 1 1 M4 309210001H-004
641 0921460R ASSY_EE13_VALVE 1 1 1 309210001J-001
642 225B0374 AIR_LINE_EQPT 2 2 2 309210001J-002
643 225F0603 PIPE FITTINGS 1 1 1 309210001J-003
652 225B0367 AIR_LINE_EQPT 2 2 2 309210003E-002
653 0921E20F TUBE 1 1 1 309210003E-003
654 0921E20G TUBE 1 1 1 309210003E-004
Fig. K1
1104-004
Fig. K1-7
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
Fig. K1-8
マガジン収納部
Magazine Storage Section
1007-003
753
748
737
752
706
747
730
753
748
734
717
725
749
754
740
743
742
754
749
739
713
754
741
See Fig. K1-9
Key No.801
See Fig. K1-9
Key No.842
See Fig. K1-9
Key No.851
See Fig. K1-9
Key No.821
728
723
724
728
755
750
744
754
733
748
753
733
748
753
722
729
726
726
749
756
746
739
755
728
727
750
744
727
753
720
708
712
705
719
748
736
753
748
745
757
754
711
749
740
752
718
759
751
758
746
731
753
748
734
754
716
749
740
753
714
715
748
732
753
748
736
753
748
745
754
757
711
749
740
720
709
712
719
753
748
736
707
719
710
710
719
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
705 0921E005 BASE 1 1 1 109210003H-005
706 211F8492 BRACKET 1 1 1 109210003H-006
707 226F0151 HINGE 1 1 1 109210003H-007
708 216S2678 LEVER 1 1 1 109210003H-008
709 216S2679 LEVER 1 1 1 109210003H-009
710 216S2680 LEVER 2 2 2 109210003H-010
711 216B1432 HOLDER 2 2 2 109210003H-011
712 216A1159 COLLAR 2 2 2 109210003H-012
713 0921E20D BLOCK 2 2 2 109210003H-013
714 211F8699 BRACKET 1 1 1 109210003H-014
715 211F8700 BRACKET 1 1 1 109210003H-015
716 211F8701 BRACKET 1 1 1 109210003H-016
717 211A8875 COVER 1 1 1 109210003H-017
718 0921E002 BLOCK 1 1 1 109210003H-018
719 222D0019 BEARING RADIAL 4 4 4 109210003H-019
720 222H0118 CAM FOLLOWER 2 2 2 109210003H-020
722 0921E00C PLATE 1 1 1 109210003H-022
723 211D9805 PLATE 1 1 1 109210003H-023
724 211D9806 PLATE 1 1 1 109210003H-024
725 211AC662 COVER 1 1 1 109210003H-025
726 0921E006 PLATE 2 2 2 109210003H-026
727 222L0717 GUIDE_LINEAR 2 2 2 109210003H-027
728 221DA207 MACHINE SCREW 24 24 24 M4L6 109210003H-028
729 226C0111 HANDLE 1 1 1 109210003H-029
730 221AA007 ROHS_HEX-SCT 2 2 2 109210003H-030
731 221AA010 ROHS_HEX-SCT 2 2 2 M3L16 109210003H-031
732 221AA015 ROHS_HEX-SCT 2 2 2 M4L6 109210003H-032
733 221AA016 ROHS_HEX-SCT 6 6 6 M4L8 109210003H-033
734 221AA018 ROHS_HEX-SCT 4 4 4 M4L12 109210003H-034
736 221AA020 ROHS_HEX-SCT 4 4 4 M4L16 109210003H-036
737 221AA021 ROHS_HEX-SCT 2 2 2 M4L20 109210003H-037
739 221AA030 ROHS_HEX-SCT 4 4 4 M5L12 109210003H-039
740 221AA031 ROHS_HEX-SCT 11 11 11 M5L16 109210003H-040
741 221AA032 ROHS_HEX-SCT 4 4 4 M5L20 109210003H-041
742 221AA034 ROHS_HEX-SCT 4 4 4 M5L30 109210003H-042
743 221AA036 ROHS_HEX-SCT 2 2 2 M5L40 109210003H-043
744 221AA240 ROHS_HEX-SCT 8 8 8 M6L14 109210003H-044
745 221FA008 NUT_HEX 2 2 2 M4 109210003H-045
746 221FA009 NUT_HEX 3 3 3 M5 109210003H-046
747 221HA103 WASHER 2 2 2 FW3 109210003H-047
748 221HA104 WASHER 20 20 20 FW4 109210003H-048
749 221HA105 WASHER 15 15 15 FW5 109210003H-049
750 221HA106 WASHER 8 8 8 FW6 109210003H-050
751 221HA203 WASHER 2 2 2 FWS3 109210003H-051
752 221HA003 WASHER 4 4 4 SW3 109210003H-052
Fig. K1
1104-004
Fig. K1-8
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
