Fig. K1-9 マガジンセット部 Magazine Set Section 1 104-003 844 842 856 853 852 851 855 854 843 841 847 846 845 816 802 806 808 803 805 804 81 1 801 813 809 816 814 810 815 812 807 831 822 823 824 825 828 830 827 826 829 824 821 8…
MEMO

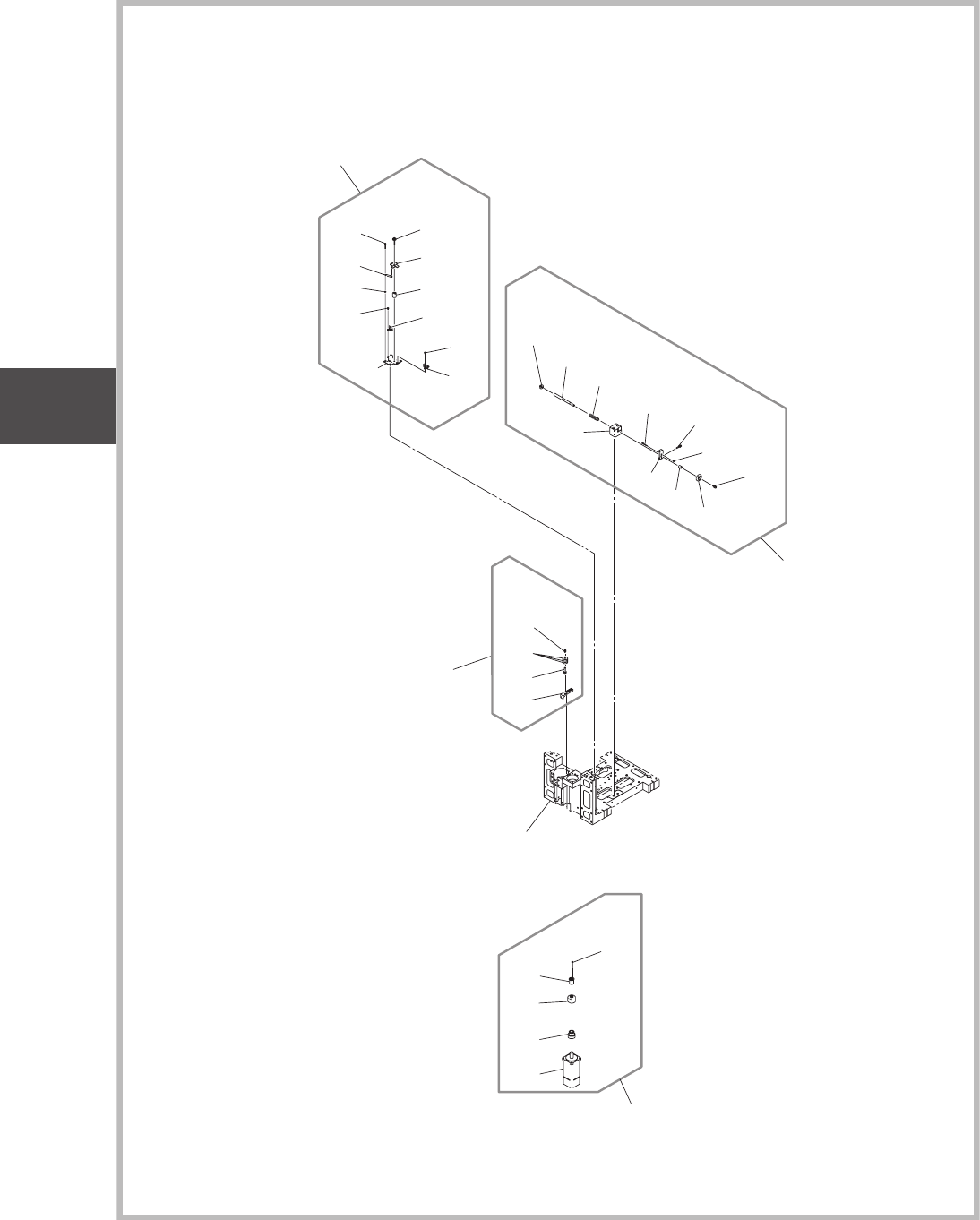

Fig. K1-9
マガジンセット部
Magazine Set Section
1104-003
844
842
856
853
852
851
855
854
843
841
847
846
845
816
802
806
808
803
805
804
811
801
813
809
816
814
810
815
812
807
831
822
823
824
825
828
830
827
826
829
824
821
829
B15516(U)
B15532(U)
B15514(D)
B15526(D)
M03(U)
M02(D)
See Fig. K1-8
Key No.705
0921001L
0921001M
0921003D
0921001B
Fig. K1
エレベータ部
ELEVATOR SECTION
UNIT-10
Fig. K1
ELEVATOR
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
801 0921E009 BLOCK 1 1 1 309210003D-001
802 0921E00E SHAFT 1 1 1 309210003D-002
803 211D9802 PLATE 1 1 1 309210003D-003
804 226D0110 GRIP 1 1 1 309210003D-004
805 0921E00D COLLAR 1 1 1 309210003D-005
806 222M1342 SPRING_COMP 1 1 1 309210003D-006
807 221AA018 ROHS_HEX-SCT 1 1 1 M4L12 309210003D-007
808 221AA021 ROHS_HEX-SCT 1 1 1 M4L20 309210003D-008
809 221AA030 ROHS_HEX-SCT 1 1 1 M5L12 309210003D-009
810 221AA032 ROHS_HEX-SCT 1 1 1 M5L20 309210003D-010
811 221FA008 NUT_HEX 1 1 1 M4 309210003D-011
812 221HA302 ROHS_WASHER 1 1 1 SW4 309210003D-012
813 221HA303 ROHS_WASHER 1 1 1 SW5 309210003D-013
814 221HA105 WASHER 1 1 1 FW5 309210003D-014
815 221HA004 WASHER 1 1 1 SW4 309210003D-015
816 221HA005 WASHER 2 2 2 SW5 309210003D-016
821 211F8534 BRACKET 1 1 1 309210001B-001
822 213D1172 DISK 1 1 1 309210001B-002
823 213A1116 SHAFT 1 1 1 309210001B-003
824 23G10029 SENSOR_PHOTO 2 2 2 309210001B-004
825 222N0109 SPRING TENSION 1 1 1 309210001B-005
826 221AA012 BOLT_HEX-SCT 2 2 2 M3L25 309210001B-006
827 221AA023 ROHS_HEX-SCT 1 1 1 M4L30 309210001B-007
828 221FA006 NUT_HEX 2 2 2 M3 309210001B-008
829 221DA056 MACHINE_SCREW 4 4 4 PAN M3L8 SW+FWS
309210001B-009
830 221HA302 ROHS_WASHER 1 1 1 BW4 309210001B-010
831 221HA004 WASHER 1 1 1 SW4 309210001B-011
841 213A1068 SHAFT 1 1 1 309210001L-001
842 4M150276 MOTOR_AC-SERVO 1 1 1 309210001L-002
843 223Q0576 PULLEY_TIMING 1 1 1 309210001L-003
844 223C0165 COUPLING 1 1 1 309210001L-004
845 221AA013 ROHS_HEX-SCT 4 4 4 M3L30 309210001L-005
846 221HA203 WASHER 4 4 4 FWS3 309210001L-006
847 221HA003 WASHER 4 4 4 SW3 309210001L-007
851 211G3646 BLOCK 1 1 1 309210001M-001
852 213A1090 SHAFT 1 1 1 309210001M-002
853 222D0380 BEARING RADIAL 3 3 3 309210001M-003
854 221AA016 ROHS_HEX-SCT 1 1 1 M4L8 309210001M-004
855 221HA104 WASHER 1 1 1 FW4 309210001M-005
856 221HA004 WASHER 1 1 1 SW4 309210001M-006
Fig. K1
1104-004
Fig. K1-9
SIGMA-G5SA
SIGMA-G5SB
SIGMA-G5SC
SIGMA-G5SD
UNIT-10
Fig. K1
ELEVATOR
