5-4 5 Lubrication points 2.2 Y -axis Y -axis lubrication points Grease gun: Manual lubrication: Y -axis guide Grease nipple 53502-N2-00 Lubrication section Grease Lubrication point Interval Procedure Guide NSL 6 (each ta…
5-3
5
Lubrication points
2. Lubrication points/schedule (Main machine)
2.1 X-axis
X-axis lubrication points
Ball screw & guide
Grease gun:
Manual lubrication:
X-axis guide
Top-side grease nipple
X-axis guide
Top-side grease nipple
X-axis ball screw
X-axis guide
Bottom-side grease nipple
X-axis guide
Bottom-side grease nipple
53501-N2-10
Lubrication section Grease Lubrication point Interval Procedure
Ball screw NSL 1 (each table) Monthly
Grease gun: Standard type nozzle
(
φ
10 mm)
Guide NSL 4 (each table) Monthly
Grease gun: Standard type nozzle
(
φ
10 mm)
5-4
5
Lubrication points
2.2 Y-axis
Y-axis lubrication points
Grease gun:
Manual lubrication:
Y-axis guide
Grease nipple
53502-N2-00
Lubrication section Grease Lubrication point Interval Procedure
Guide NSL 6 (each table) Monthly
Grease gun: Bent type nozzle
(
φ
5 mm)
5-5
5
Lubrication points

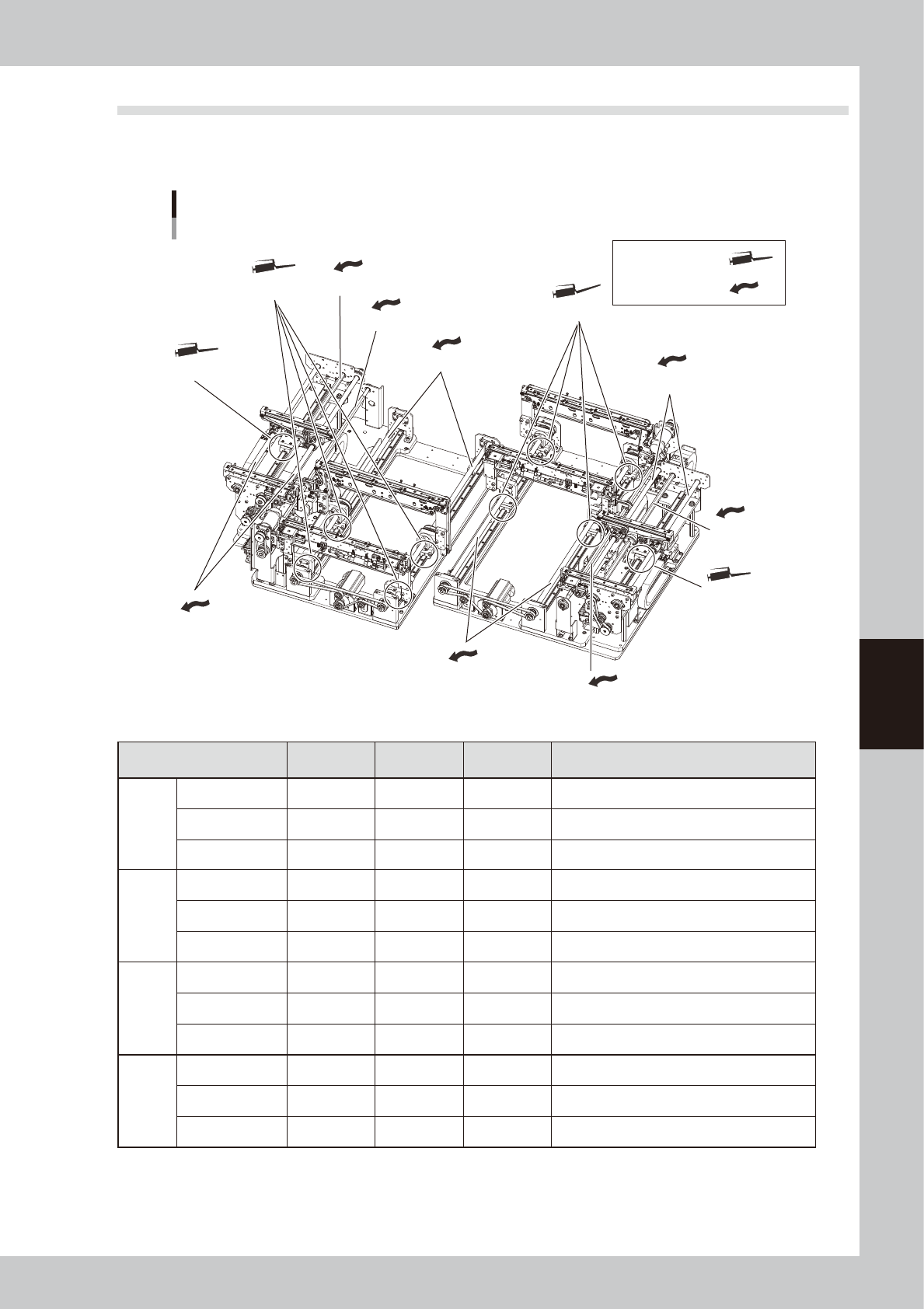

2.3 W-axis (U-axis)
2.3.1 Dual-stage type
W-axis (U-axis) lubrication points
YSM20 dual-stage type
W4-axis guide
W2-axis ball screw
W4-axis hexagon spline
W1-axis ball screw
W4-axis ball screw
W4-axis ball screw
W1-axis
hexagon spline
W1-axis guide
W2-axis guide
W3-axis guide
W2-axis hexagon spline
W3-axis hexagon spline
Grease gun:
Manual lubrication:
53503-N2-20
Lubrication section Grease
Lubrication
point
Interval Procedure
W1-
axis
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 1 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
W2-
axis
(U1-
axis
）
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 4 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
W3-
axis
(U2-
axis
）
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 4 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
W4-
axis
Ball screw NSL 2 Yearly Manual lubrication
Guide NSL 1 Yearly Grease gun: Bent type nozzle (
φ
5 mm)
Hexagon spline NSL 1 Yearly Manual lubrication
