1 12 Exterior ,etc Exterior ,etc KGR-100324 1, 15 1 1 12 6 7 10 26, 17 18, 19 20, 21 19, 25 23, 24 22, 23 8 13, 14 9 5 3 4 2,28 16 27 29 30-35 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. …
1
10

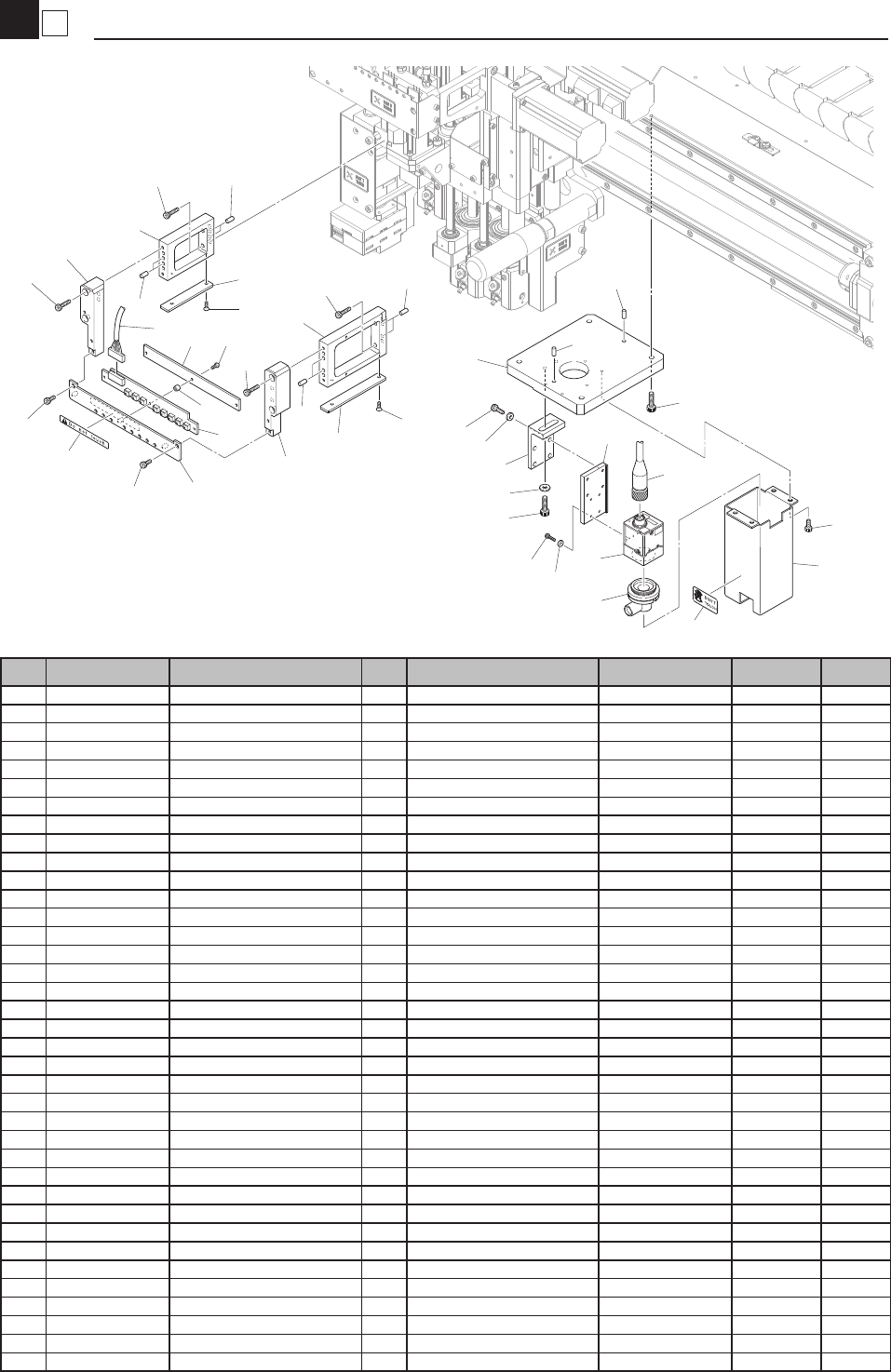

Side View Unit
SectionSide View Unit
KGR-081113
10
11
12
16
16
17
17
34
14
14
14
13
15
15
18
19
20
21
22
23
24
25
25
26
27
31
30
33
32
26
28
29
14
17
5
6
8
2
1
9
7
4
3
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGR-M7901-00X STAY L, SV LIGHT 1
2 KGR-M7902-00X STAY R, SV LIGHT 1
3 KGS-M7903-00X DIFFUSER, SV. LIGHT 1
4 KGR-M7904-00X BRACKET, SV LIGHT 1
4-1 KGR-M7904-01X BRACKET,SV LIGHT 1 (2008/2/19) ME10046 OK
5 KGS-M7905-02X SV. LIGHT BOARD ASSY 1
6 KGR-M7906-00X PLATE L, SV LIGHT 1
7 KGR-M7907-00X PLATE R, SV LIGHT 1
8 KGR-M7908-00X COVER L, SV PLATE 1
9 KGR-M7909-00X COVER R, SV PLATE 1
10 KGS-M66K2-00X HNS,SV LIGHT 1 L=600
10-1 KGS-M66K2-01X HNS,SV LIGHT 1 L=660 (2006/6/21) MC50051 NG
11 90K41-000240 SEAL, DON'T TOUCH 1
12 90563-0AJ040 SPACER, BOLT 3
13 90166-04JA04 SCREW,PAN HEAD 3
13-1 90166-02JA04 SCREW PAN HEAD 3 (2006/1/10) MBY0154 OK
14 99480-04010 PIN PARALLEL: 4X10 8
15 98707-03006 SCREW, FLAT HEAD 4
16 91317-04008 BOLT HEX. SOCKET HEAD 2
17 91317-04020 BOLT HEX. SOCKET HEAD 4
18 KGS-M7910-00X BASE, S.VIEW CAMERA 1
19 KGR-M7911-00X STAY 1, S.VIEW CAMERA 1
20 KGS-M7912-01X STAY 2, S.VIEW CAMERA 1
21 KGS-M7913-01X CCD CAMERA 1
22 KGS-M7914-00X LENS, S.VIEW 1
23 KGR-M7915-00X COVER, S.VIEW CAMERA 1
24 KGA-M66F2-00X C. CABLE ASSY:L6M 1
25 99480-04008 PIN, PARALLEL 2
26 91317-05012 BOLT HEX. SOCKET HEAD 6
27 91317-04010 BOLT HEX. SOCKET HEAD 4
28 90115-02J008 BOLT HEX. SOCKET HEAD 4
29 90990-28J002 WASHER PLAIN 4
30 92907-05200 WASHER PLAIN 2
31 92907-04200 WASHER PLAIN 4
32 91317-04006 BOLT HEX. SOCKET HEAD 4
33 KV7-M7165-00X SEAL DON'T TOUCH 2
34 91317-04018 BOLT HEX. SOCKET HEAD 4 (2007/2/20) H010327
1
11

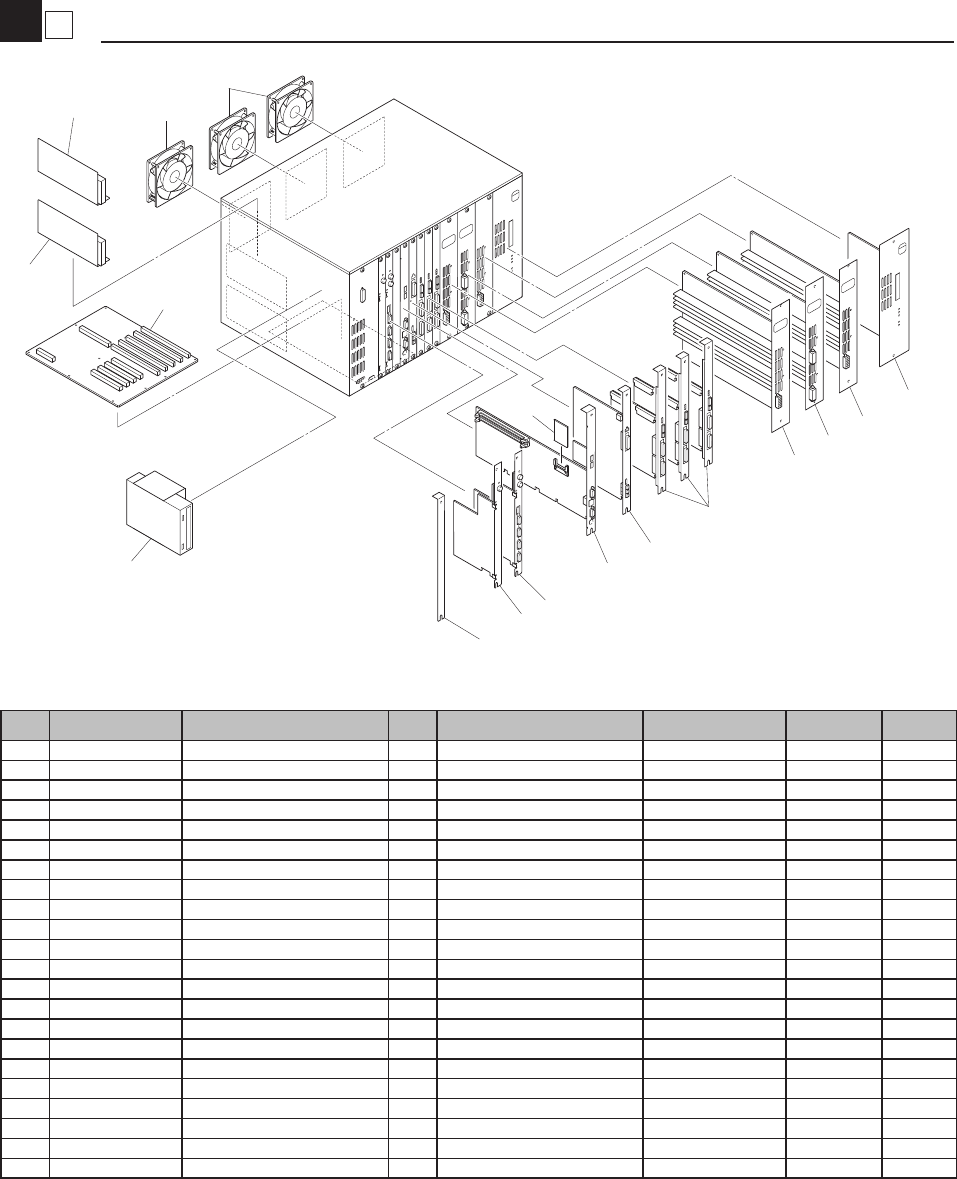

Control Box (YG88+d-YTF+S-ATS)
Controller
KGR-090312
4
5
6
1
12
10
2
3
7
8
9
11
13
16
16
15
14
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGK-M4510-00X MOTHER BOARD ASSY 1
2 KGN-M5840-03X SERVO BOARD ASSY 1
2-1 KGN-M5840-04X SERVO BOARD ASSY 1 (2006/3/13) MC30064 OK
3 KGS-M4200-00X SYSTEM UNIT ASSY 1
3-1 KGS-M4200-01X SYSTEM UNIT ASSY 1 (2006/4/24) MC40043 OK
3-2 KGS-M4209-A0X SPARE SYSTEM UNIT 1 (2009/1/7) H012495 OK
4 KGK-M5810-01X DRIVER BOARD ASSY 1
5 KGN-M5810-40X DRIVER BOARD ASSY 1
6 KGK-M5810-41X DRIVER BOARD ASSY 1
7 KGJ-M441H-03X VISION BOARD ASSY 1
7-1 KGJ-M441H-40X VISION BOARD ASSY 1 (2005/12/2) MBX0191 OK
8 KGJ-M441H-30X VISION BOARD ASSY 1
9 KGS-M4530-11X REMOTE IF BOARD ASSY 1
10 KGN-M5880-00X D.POWER BOARD ASSY 1
11 KGK-M4136-10X PANEL NO VISION 1
12 KW3-M4256-00X CD-ROM DRIVE 1
13 KGK-M4255-00X FLASH DISK 1
13-1 KGK-M4255-20X FLASH DISK 1 (2005/11/10) MB00101 OK
13-2 KHL-M4255-00X FLASH DISK 1 (2007/6/20) MD60085 OK
14 KGS-M5303-00X SW POWER DC5 1
15 KGS-M5303-10X SW POWER DC12 1
16 KGK-M4185-10X FAN MOTOR ASSY 3
1
12

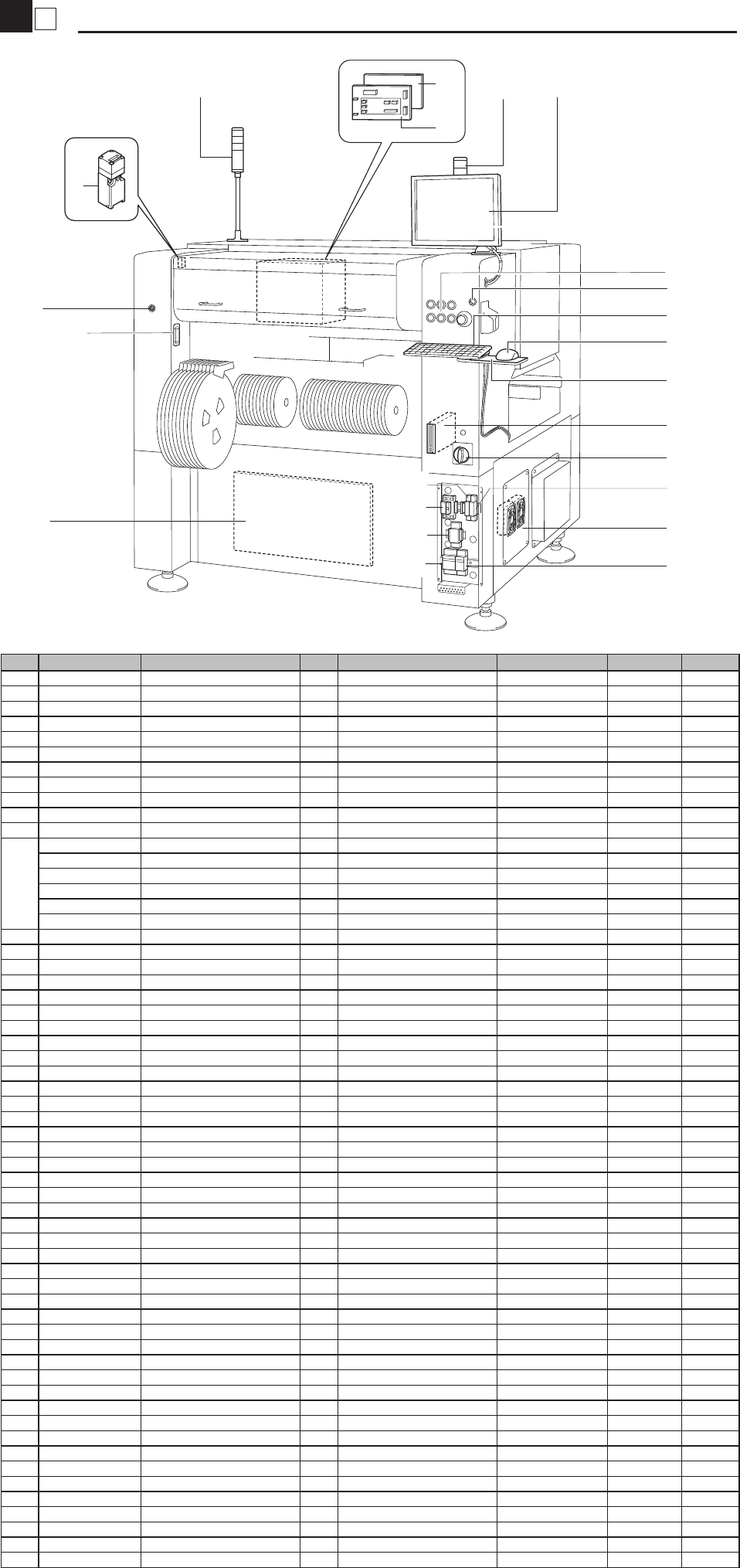

Exterior,etc
Exterior,etc
KGR-100324
1, 15
11
12
6
7
10
26, 17
18, 19
20, 21
19, 25
23, 24
22, 23
8
13, 14
9
5
3
4
2,28
16
27
29
30-35
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGT-M5106-00X 15NORMAL LCD" 1 NON TOUCH PANEL
1-1 KGT-M5106-01X 15NORMAL LCD" 1 NON TOUCH PANEL (2006/6/21) MC60059 OK
1-2 KGT-M5106-02X 15NORMAL LCD" 1 AC100V (2008/4/15) ME20188 OK
1-3 KGT-M5106-B0X SMT OPE.PANEL ASSY 1 DC12V
(Compati.:KHW-M5106-10X)
(2012/11/22) MJX0111 NG
2 KW3-M5150-01X KEYBOARD J 1 Japanese
2-1 KW3-M5150-50X KEYBOARD J 1 Japanese (2005/12/5) MBX0153 OK
3 KW3-M5169-03X MOUSE 1
3-1 KW3-M5169-04X MOUSE 1 (2006/7/27) MC70085 OK
4 KGB-M1391-00X MOUSE PAD 1
5 KW7-M5126-00X SAFETY, SWITCH 2
5-1 KW7-M5126-F0X SAFETY SW UNIT ASSY 2 (2009/12/1) MFX0093 OK
6
KGS-M4899-00X LIGHT 1 ASSY. (STD) 1 H=1850mm
KGS-M4899-10X LIGHT 1 ASSY. 1 H=1900mm
KGS-M4899-20X LIGHT 1 ASSY. 1 H=2000mm
KGS-M4899-30X LIGHT 1 ASSY. 1 H=2100mm
KGS-M4899-40X LIGHT 1 ASSY. 1 H=2200mm
KGS-M4899-50X LIGHT 1 ASSY. 1 H=2300mm
7 KGK-M5138-00X SWITCH EMG ASSY. 2
8 KM5-M6554-10X MAIN SWITCH 1
9 KGK-M530H-00X FDD ASSY. 1
10 KGT-M4580-00X I/O CONVEYOR BOARD A 1
10-1 KGT-M4582-00X I/O CONVEYOR BOARD A 1 (2005/11/14) MBX0065 OK
11 KGS-M5840-10X SERBO BOARD ASSY. 1
12 KGS-M4570-10X I/O HEAD BOARD ASSY. 1
13 KGA-M4187-00X FAN GUARD 4
14 KGA-M6185-00X FAN MOTOR ASSY 2 Harness L=300mm
14-1 KGA-M6185-10X FAN MOTOR ASSY 2 Harness L=50mm (2007/4/12) MD40032 NG
15 KGT-M5119-01X 15 TOUCH LCD ASSY" 1 TOUCH PANEL
15-1 KGT-M5119-02X 15 TOUCH LCD ASSY" 1 TOUCH PANEL (2006/4/12) MC30085 OK
15-2 KGT-M5119-03X SMT OPE.T.PANEL ASSY 1 TOUCH PANEL (2013/2/25) MK20042 OK
16 KGS-M4896-01X LIGHT ERR. ASSY. 1
17 KGS-M6510-00X CIRCUIT PROTECTOR 4 1 (S.T.D) SA53CT-20A
18 KGA-M6513-10X C.P.(2POLE 15A) 1 For UPS
18-1 KGA-M6513-11X CIRCUIT PROTECTOR,2P 1 CP30-BA AC15A (2008/6/20) ME60162 Set
19 KH1-M539M-30X PROTECTOR ACCES.2P 1
19-1 KH1-M539M-31X PROTECTOR ACCES.2P 1 (2008/6/20) ME60162 Set
20 KH4-M6514-00X CIRCUIT PROTECTOR 4 1
20-1 KH4-M6514-01X CIRCUIT PROTECTOR,3P 1 CP30-BA AC10A (2008/6/20) ME60163 Set
21 KM6-M539M-00X PROTECTOR ACCES.3P 1
21-1 KM6-M539M-01X PROTECTOR ACCES.3P 1 (2008/6/20) ME60163 Set
22 KHA-M6513-00X CIRCUIT PROTECTOR,3 1
22-1 KHA-M6513-01X CIRCUIT PROTECTOR,1P 1 CP30-BA AC7A (2008/6/20) ME60161 Set
23 KH1-M539M-40X PROTECTOR ACCES.1P 1
23-1 KH1-M539M-41X PROTECTOR ACCES.1P 1 (2008/6/20) ME60161 Set
24 KK1-M6513-10X CIRCUIT PROTECTOR 3 1
24-1 KK1-M6513-11X CIRCUIT PROTECTOR,1P 1 CP30-BA AC1A (2008/6/20) ME60161 Set
25 KGS-M6514-00X CIRCUIT PROTECTOR 4 1
25-1 KGS-M6514-01X CIRCUIT PROTECTOR,2P 1 CP30-BA AC5A (2008/6/20) ME60162 Set
26 KM8-M6510-12X BREAKER LEAK ASSY.30 1 (LEAK) MN50-CN 3P 25A
27 KGA-M9802-00X SENSOR AREA 1 (L=500)
28 KW3-M5150-11X KEYBOARD E 2 English
28-1 KW3-M5150-60X KEYBOARD E 2 English (2005/12/5) MBX0153 OK
29 KGB-M3992-00X SWITCH SELECT 4
30 KGA-M669V-04X HNS,SWITCH ACTIVE 1 Active
31 KGA-M669V-24X HNS,SWITCH START 1 Start
32 KGA-M669V-32X HNS,SWITCH STOP 1 Stop
33 KGA-M669V-42X HNS,SWITCH ERR.CLR. 1 Err
34 KGA-M669V-14X HNS,SWITCH READY 1 Reaby
35 KGA-M669V-54X HNS,SWITCH RESET 1 Reset
